Core selling point
1. Visual Coolant Monitoring Through Clear Acrylic
The 60mm clear acrylic tube lets operators read coolant level and spot bubbles or discoloration without opening the loop. Air trapped during filling is easy to see and bleed, cutting commissioning time and preventing the dry-run conditions that damage pumps and laser sources.

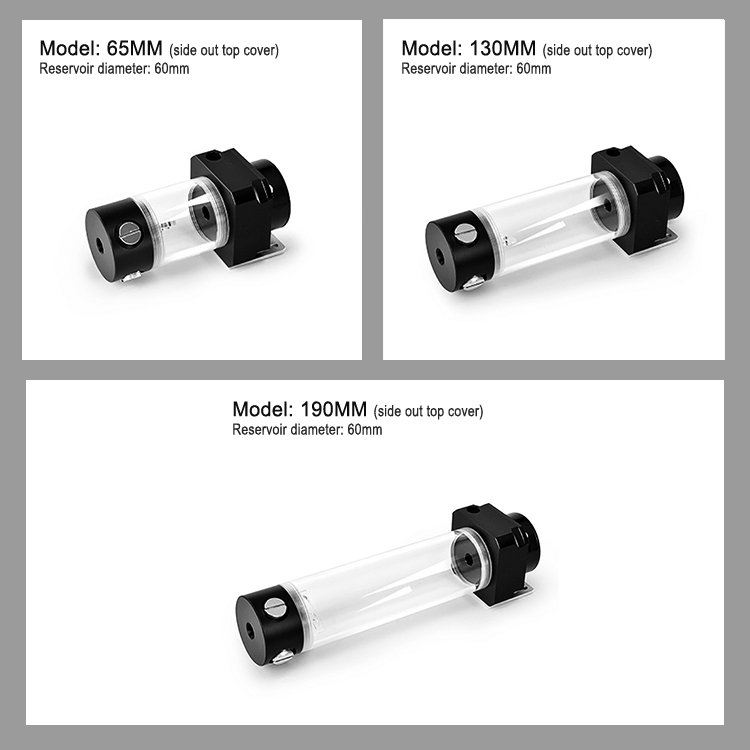

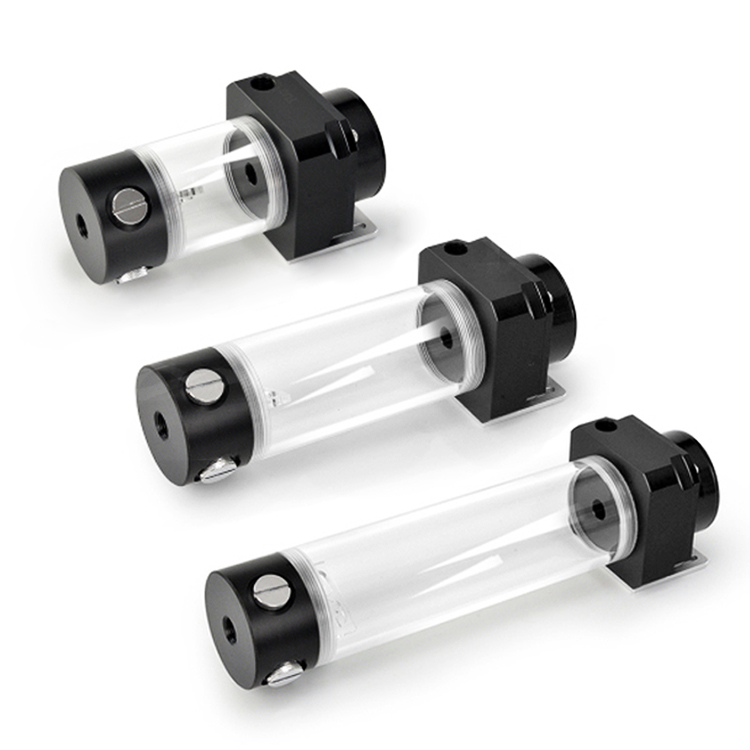

2. Three Capacity Options, One Compact Footprint
Choose 65mm, 130mm, or 190mm reservoir height with the same 60mm diameter and mounting layout, so one platform covers compact bench units through larger multi-loop systems. Distributors and OEMs reduce SKU complexity while still matching each application's coolant volume.

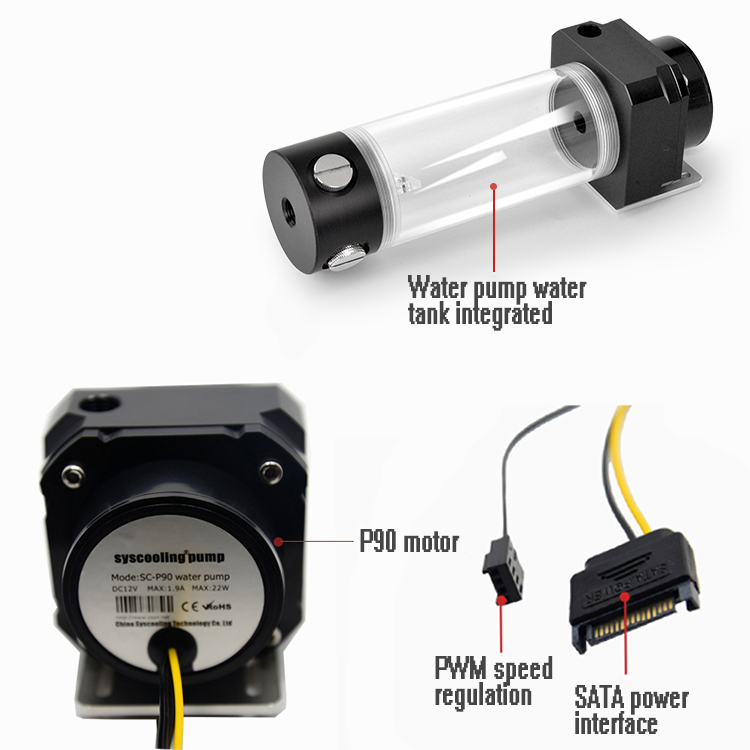

3. Integrated Pump Cuts Parts and Leak Points
Combining the reservoir and pump in one body removes connecting hoses, clamps, and joints between the two components, so loops need fewer assembly steps and offer fewer places to leak. Compact equipment makers install one part instead of two, saving cabinet space and labor.
4. Top Fill and Bleed Ports for Fast Priming
A threaded top port on the pump housing and a screw plug on the end cap give service teams direct fill and bleed access, so priming takes minutes instead of draining the whole loop. Faster commissioning keeps laser production lines, medical suites, and research benches on schedule.

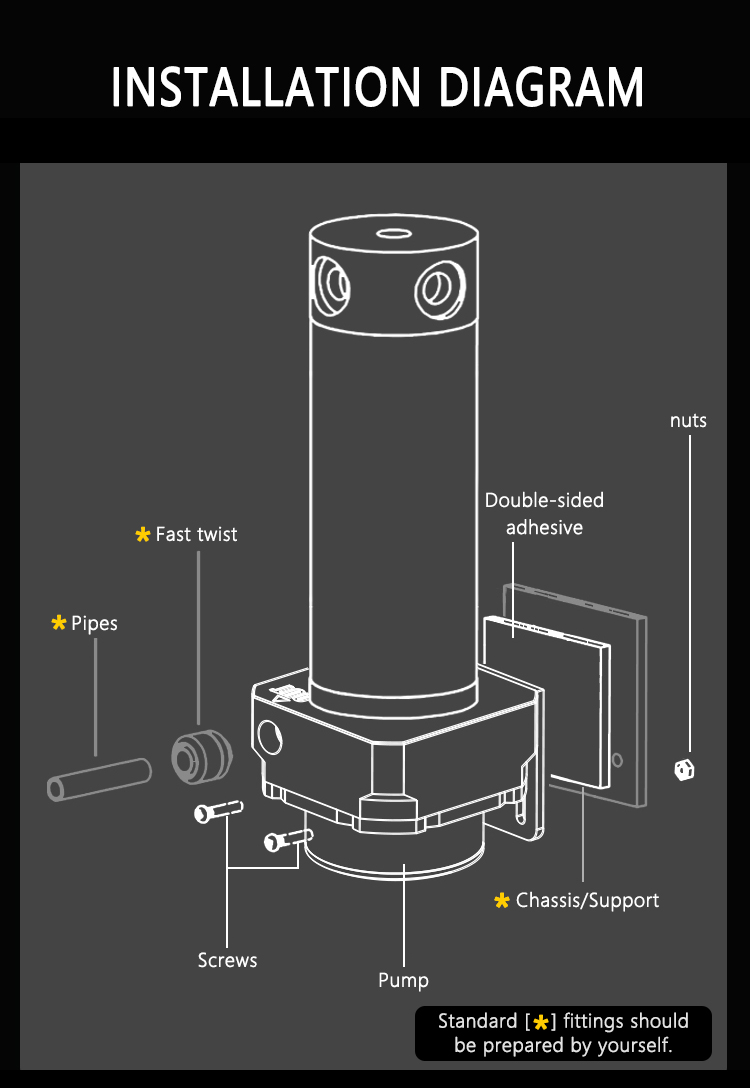

5. Rigid Build with Metal Mounting Bracket
The acrylic body is sealed to machined end caps able to hold loop pressure, while a silver metal bracket locks the assembly to panels and enclosures so vibration cannot work it loose. The unit is pressure tested before shipment for consistent quality across repeat orders.
6. Built for Compact Precision Equipment
Used in laser modules, medical diagnostic devices, beauty instruments, AI edge nodes, semiconductor tools, new energy charging modules, and energy storage cabinets, this combined tank and pump brings stable coolant circulation to equipment where space and service access are limited.
Product Parameters:
Product Model: SC-P90D
Maximum head: 5M
Maximum flow: 1300L/H
Voltage: DC12V
Operating current: 1.8A
Working noise: ≤25DB
Speed measurement interface: small 4PIN interface
Power port: SATA port
Operating temperature: -10~60℃
Maximum speed: 3800RPM
Inlet and outlet: G1/ thread
Bearing material: Ceramic
Pump body material: POM+ Acrylic
Pump body dimensions: 80*77.5*74.5mm (L * W * H)
Speed control type: PWM speed control (default), manual speed control is available
Appearance color: Black + Transparent
Design life: 50000 hours
Circuit design: Three-phase brushless DC circuit, MCU control

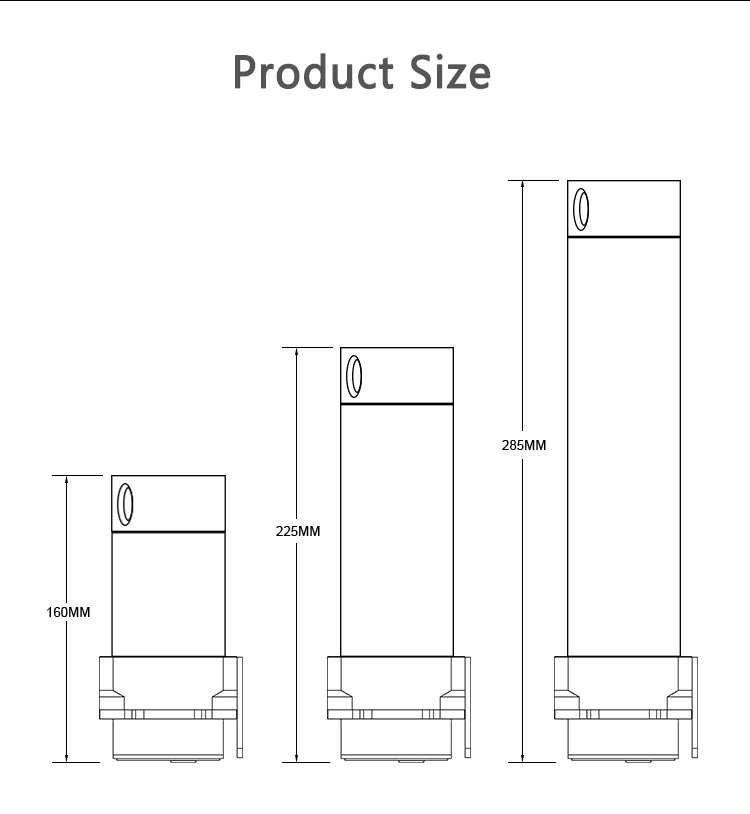

Reservoir size: Diameter 60mm, length 65mm/130mm/190mm (the length of transparent acrylic part of the reservoir)
Features:
1. Long cylindrical transparent water tank, three-phase brushless DC circuit, MCU control; Maximum lift up to 3.5 meters, good compatibility, high efficiency and energy saving.
2. The water inlet and outlet is g1/4 thread (2 teeth), which can be replaced with water nozzle joints of various specifications.
3. All-ceramic bearing design, ultra-quiet design, smooth operation.
Tip:
The bottom of the water pump is not waterproof, do not put the water pump in liquid operation; Please be careful when adding liquid, do not drop liquid into the pump.
In order to better protect the water cooling system and make it have a longer service life, it is recommended to use heat conduction liquid with low density, which is not easy to produce impurities precipitation, better performance and better heat dissipation effect.
