Product Parameters:
Product Model: OC-H09D
Maximum head: 6±0.5M
Maximum flow: 12L/MIN
Voltage: DC12V
Rated current: 1.35±5%A
Rated power: 16W
Working noise: ≤35DB
Power interface: Big 4-PIN
Speed measurement interface: Small 4PIN
Sealing: ≧ 0.2Mpa
Operating temperature: -15~60℃
Inlet and outlet: G1/ thread
Bearing material: Ceramic

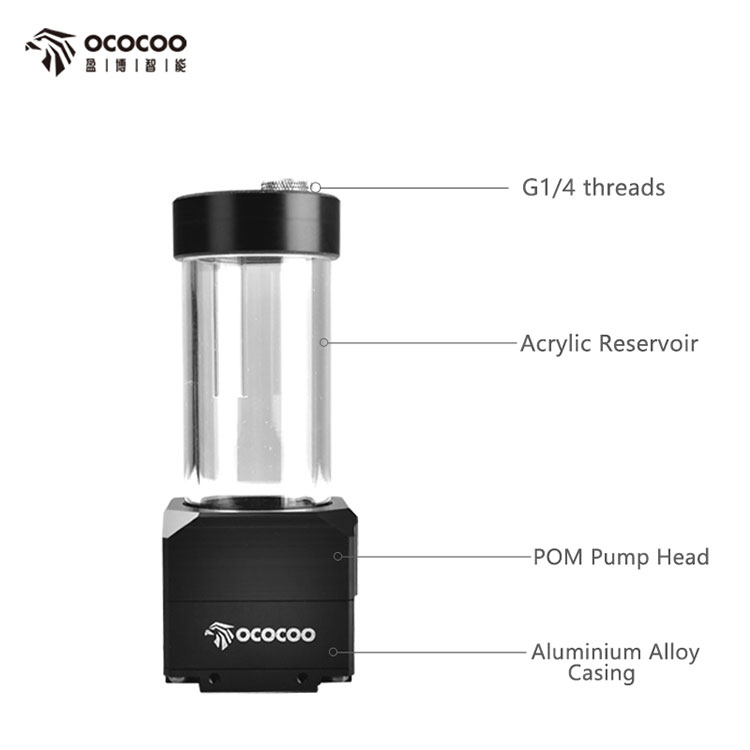

Pump body material: Aluminum alloy + Acrylic +POM

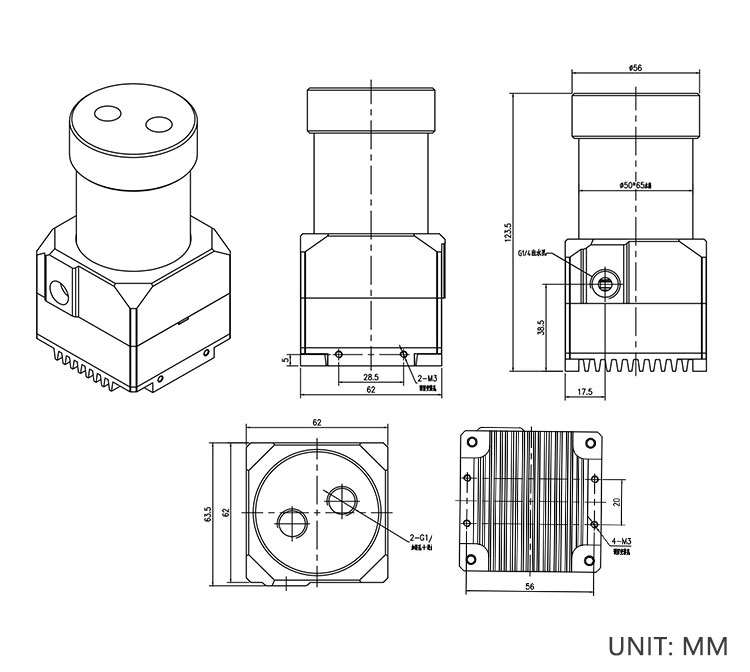

Pump body dimensions: 63.5*62*56mm (Length * Width * Height)
Design life: 30,000 hours
Appearance color: Black
Working principle: centrifugal pump

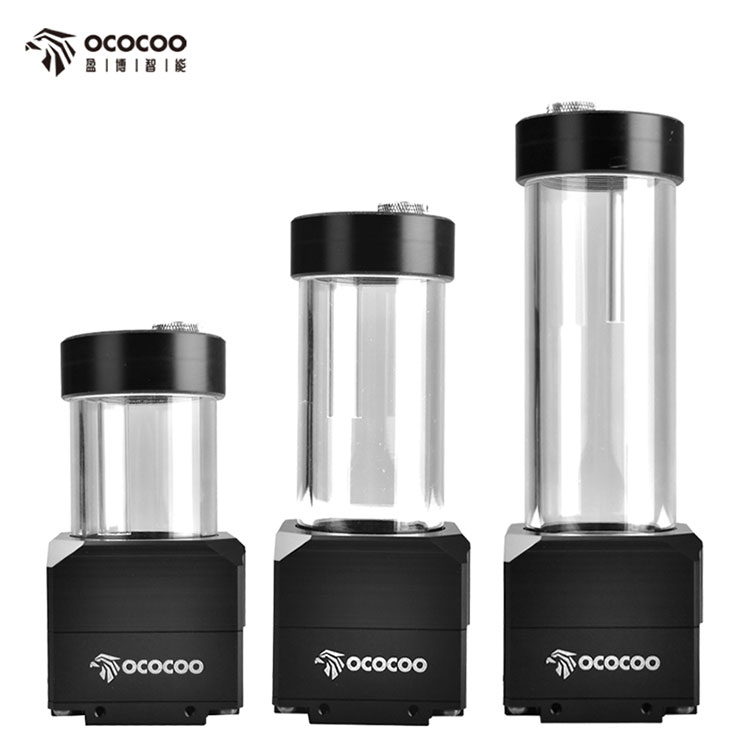

Reservoir size: Diameter 60mm, length 65mm/100mm/130mm (Transparent acrylic part length of reservoir)


Features:
1. Equipped with cylindrical transparent long reservoir, three-phase brushless DC circuit, MCU control; Maximum flow up to 12L/MIN, good compatibility, high efficiency and energy saving.
2. The water inlet and outlet is g1/4 thread (2 teeth), which can be replaced with water nozzle joints of various specifications.
3. All-ceramic bearing design, ultra-quiet design, smooth operation.








Tip:
1. In order to better protect the water cooling system and make it have a longer service life, it is recommended to match the thermal conductivity liquid with low density, which is not easy to produce impurities precipitation, better performance and better heat dissipation effect.
2. When filling the water-cooled liquid, it is necessary to start the pump power repeatedly for several times. This repeated switching action can facilitate the water cooling liquid into the loop, and the air out.
3, do not make the pump idle! If there is no water cooling liquid, turn off the water cooling pump power immediately to avoid water pump damage.
4. Injecting water cooling liquid from the top cover of the water tank can reduce the probability of air entering the pump and prolong the service life of the pump.
5, in order to exhaust smoothly, can be slightly tilted system to facilitate air discharge.
6. When testing whether there is water leakage, please place toilet paper or towel at the joint of the pipe joint to confirm the water leakage.
7. After water injection is completed, please open the screw on the water injection port above the water tank and let the water cooling loop circulate continuously for 24 hours, which can effectively discharge the gas from the water cooling system.
