Core selling point

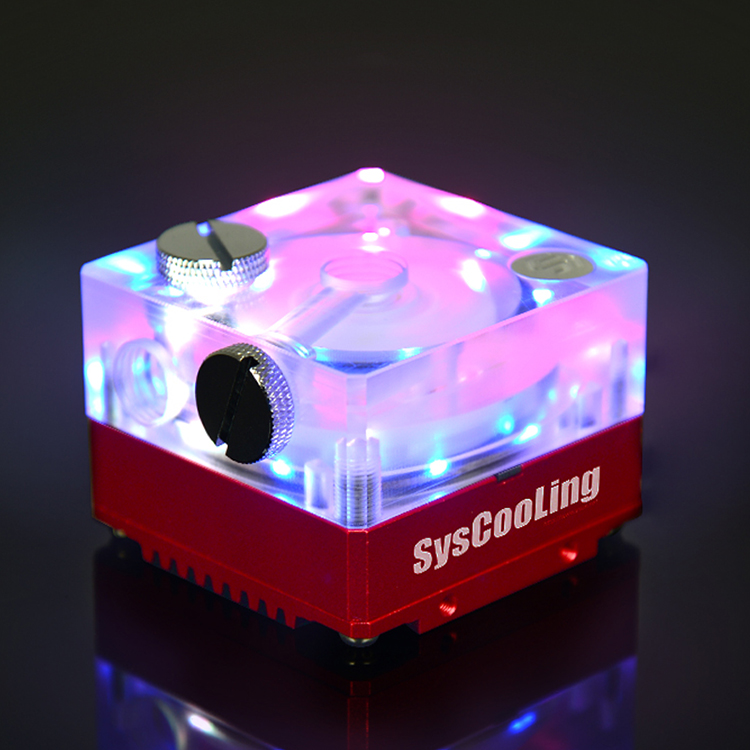

1. Transparent Top Shows the Impeller Running
The clear acrylic cover exposes the impeller chamber, so technicians confirm rotation and coolant movement the moment power is applied. Any air pocket or stalled rotor is visible immediately, which prevents the dry-run damage that shortens pump life in laser and medical systems.

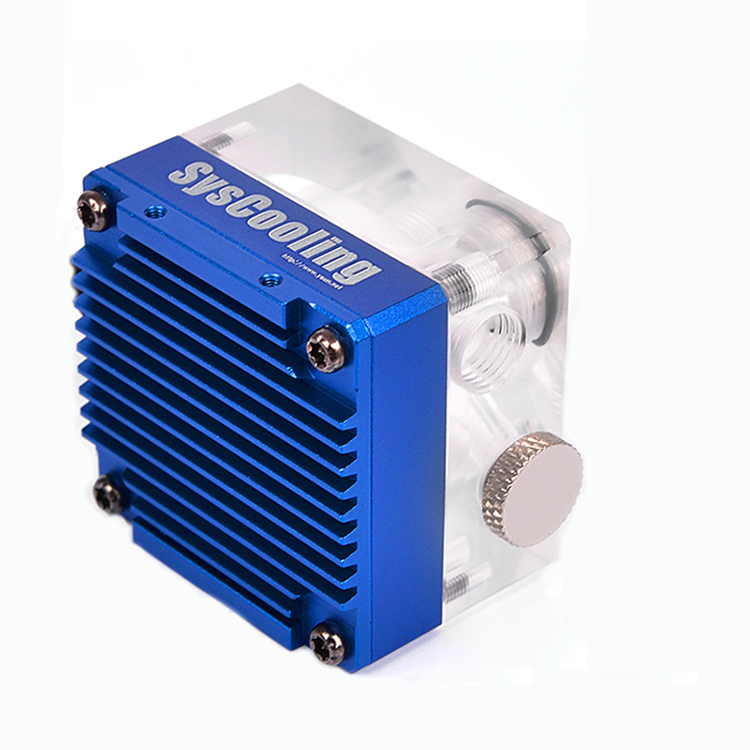

2. Finned Aluminum Base Dissipates Motor Heat
The anodized aluminum housing carries fins that release motor heat into the surrounding air, so the pump holds steady performance during continuous duty instead of derating as temperatures climb. Longer service life and fewer replacements lower total cost for OEM programs.
3. Knurled Plugs Let Operators Bleed by Hand
Knurled silver plugs on the top and side of the housing can be opened by hand for filling and bleeding, so commissioning needs no extra hardware. Service teams remove trapped air quickly, restoring full flow before equipment returns to production and avoiding heat spikes.
4. Standard Threaded Ports Fit Common Fittings
Threaded inlet and outlet ports follow the common G1/4 standard used across liquid cooling hardware, so the pump connects to existing fittings, hoses, and reservoirs without adapters. Integrators keep one parts library and swap components freely between projects.
5. Rubber Feet Cut Noise and Vibration
Vibration-damping feet isolate the pump from the enclosure floor, reducing structure-borne noise that would otherwise travel through panels and reach operators. Lower noise supports installations in medical suites, laboratories, and beauty equipment where acoustic limits apply.
6. Continuous Duty for Demanding Industrial Loops
Built for laser cutting equipment, medical diagnostic devices, AI computing clusters, semiconductor tools, beauty instruments, new energy charging stations, and energy storage cabinets, this pump keeps coolant circulating through long production shifts without attention.
Product Parameters:
Product Model: SC-P67B
Maximum lift: 4M
Maximum flow: 500L/H
Voltage: DC12V
Operating current: 0.8A
Working noise: ≤25DB
Power interface: Small 4PIN
Speed measurement interface: Small 4PIN
Bearing material: Ceramic

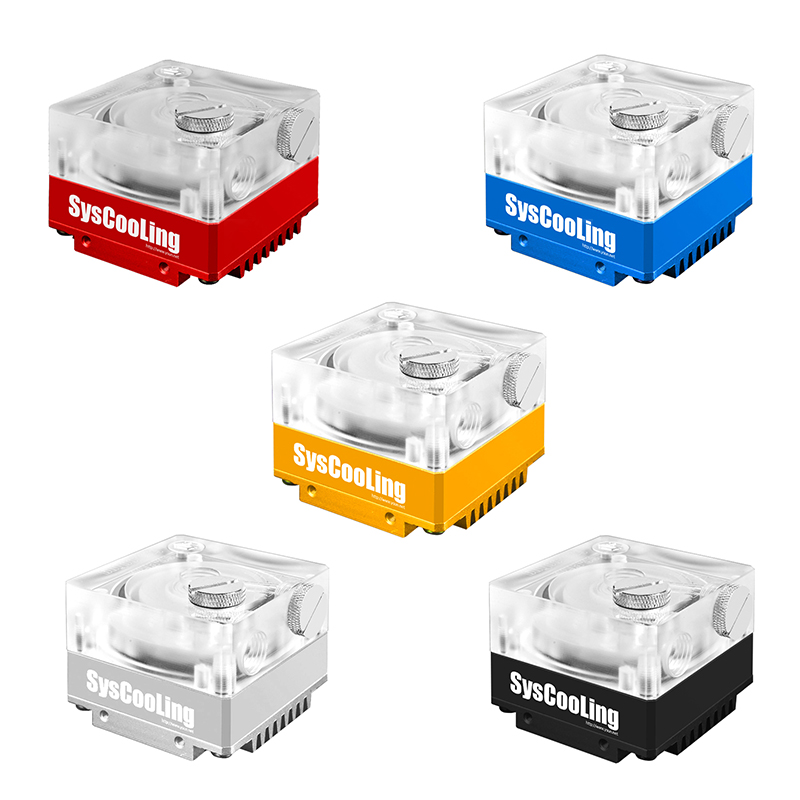

Appearance color: Red/Blue/Gold/Silver
Power: 9.6 W

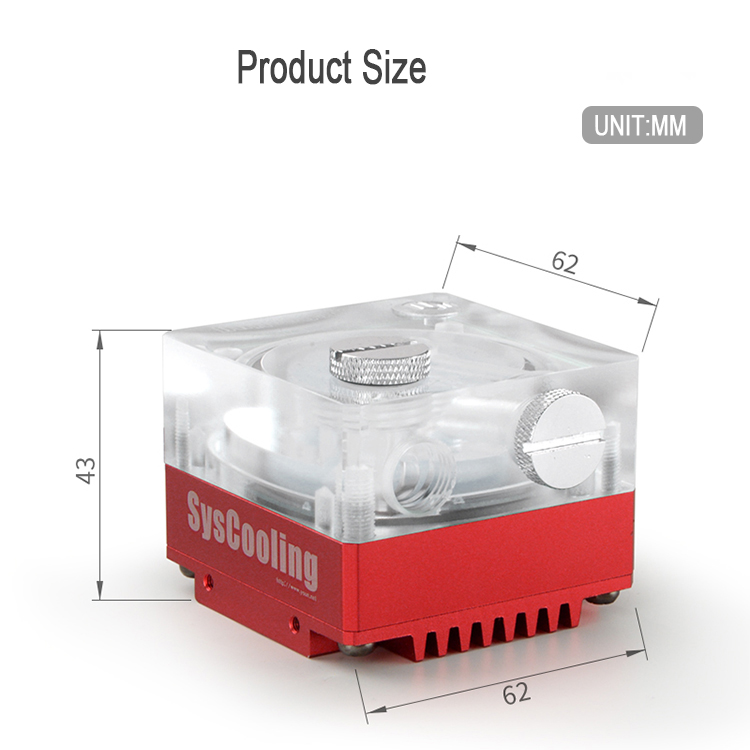

Dimensions: 62*62*45mm (Length * Width * Height)
Operating temperature: -20~70℃
Maximum speed: 2600RPM, supporting PWM speed regulation
Inlet and Outlet: G1/ thread
Pump body material: Aluminum + Acrylic
Design life: 50000 hours
Circuit design: Three-phase brushless DC circuit, MCU control
This model pumps maximum flow 500L/H, maximum speed 2600RPM, support PWM speed regulation.
Ceramic bearing design, three-phase brushless DC circuit, MCU control, quiet and smooth operation.

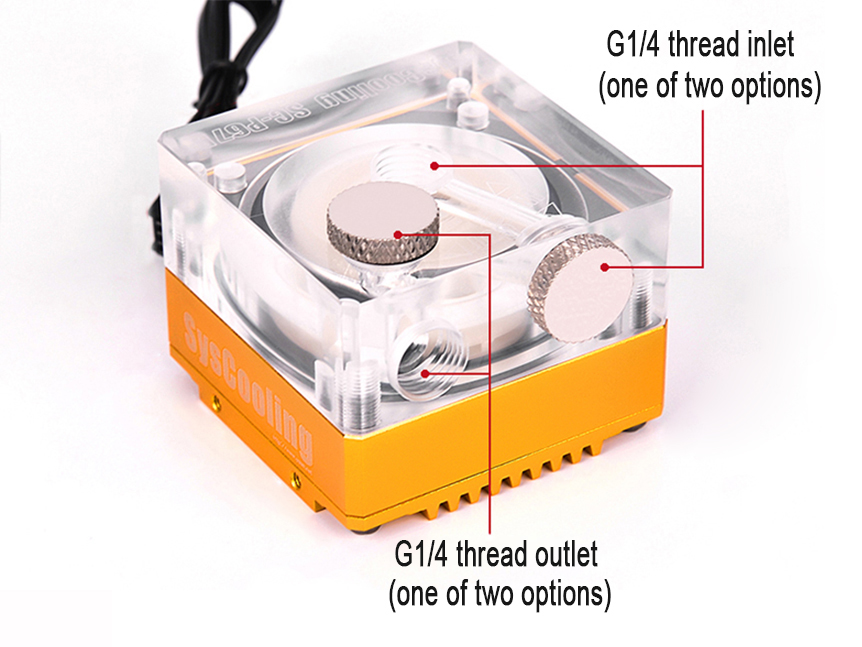

The inlet and outlet is G1/4 thread (2 split teeth), with various colors, and can be replaced with nozzle joints of various specifications.
Tip:
1. Centrifugal pump does not have self-priming ability, the pump cavity can be filled with liquid after normal operation.
2. The bottom of the water pump of this model is not waterproof. Do not immerse the water pump in the liquid.
3. In order to better protect the water cooling system and make it have a longer service life, it is recommended to use heat conduction liquid with low density, which is not easy to produce impurities precipitation, better performance and better heat dissipation effect.
