Product parameters:

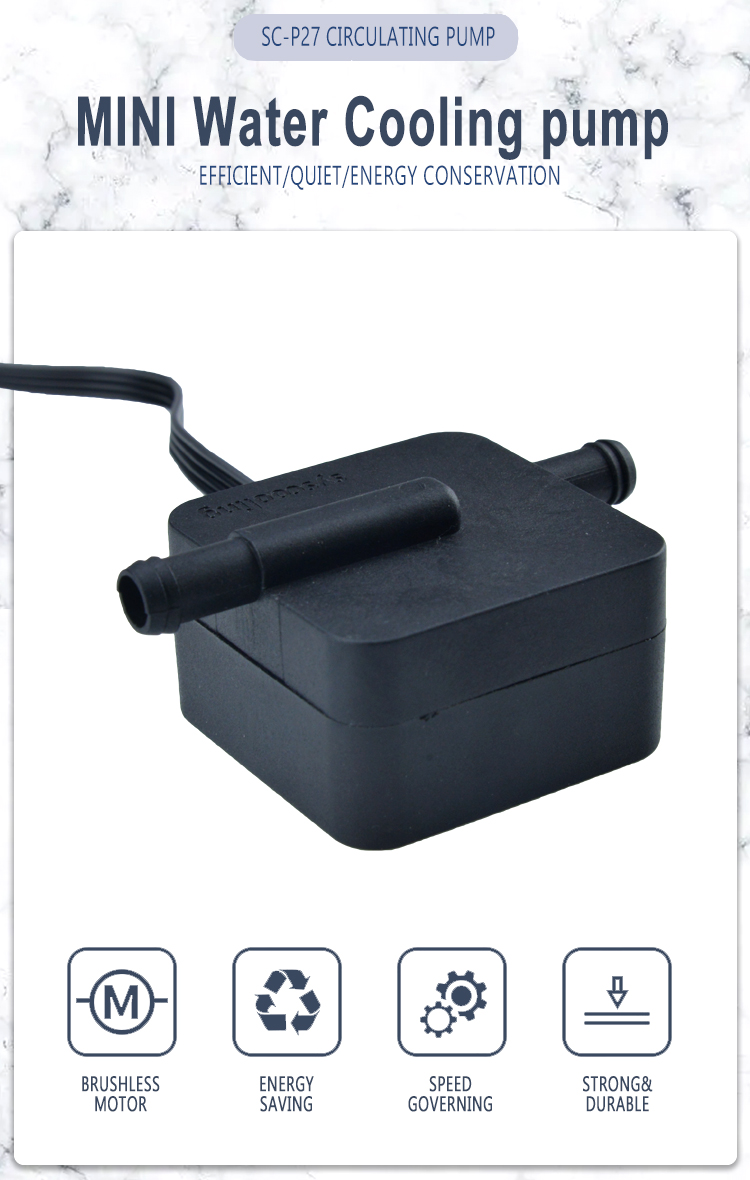

Model: SC-P27
Maximum lift: 3.5m
Working current: 0.6A
Life: 30,000 hours
Maximum speed: 2700RPM
Bearing material: Ceramic
Maximum flow: 270L/M
Working voltage: DC12V
Operating temperature: -15~60℃
Working noise: ≤25DB

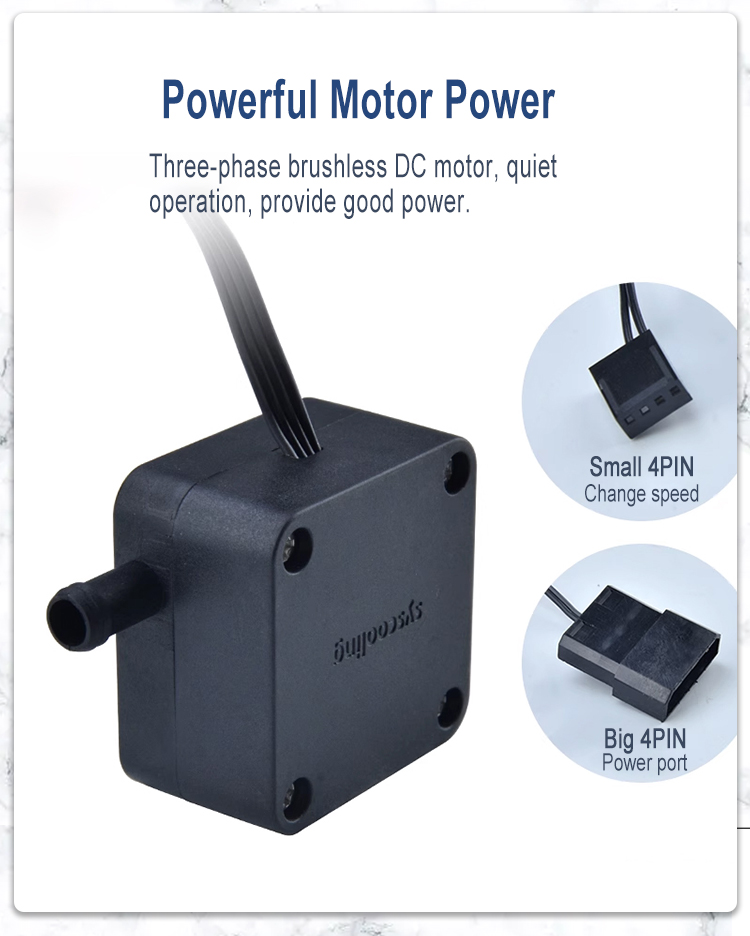

Power port: large 4PIN, support PWM
Note: three-phase brushless DC motor, MCU control







Note to buyers:
1. When filling the liquid, it is necessary to start the pump power repeatedly for several times. This operation helps to drive the liquid into the loop and expel the air.
2. Do not idle the pump! If there is no liquid, turn off the pump power immediately to avoid damage to the pump.
3. When testing for water leakage, place a paper towel or towel at the joint of the pipe connector to locate the water leakage.
4. After the liquid is added, please open the interface screw above the tank, and let the water cooling loop continue to circulate for 24 hours, so that the gas can effectively discharge from the water cooling system.
