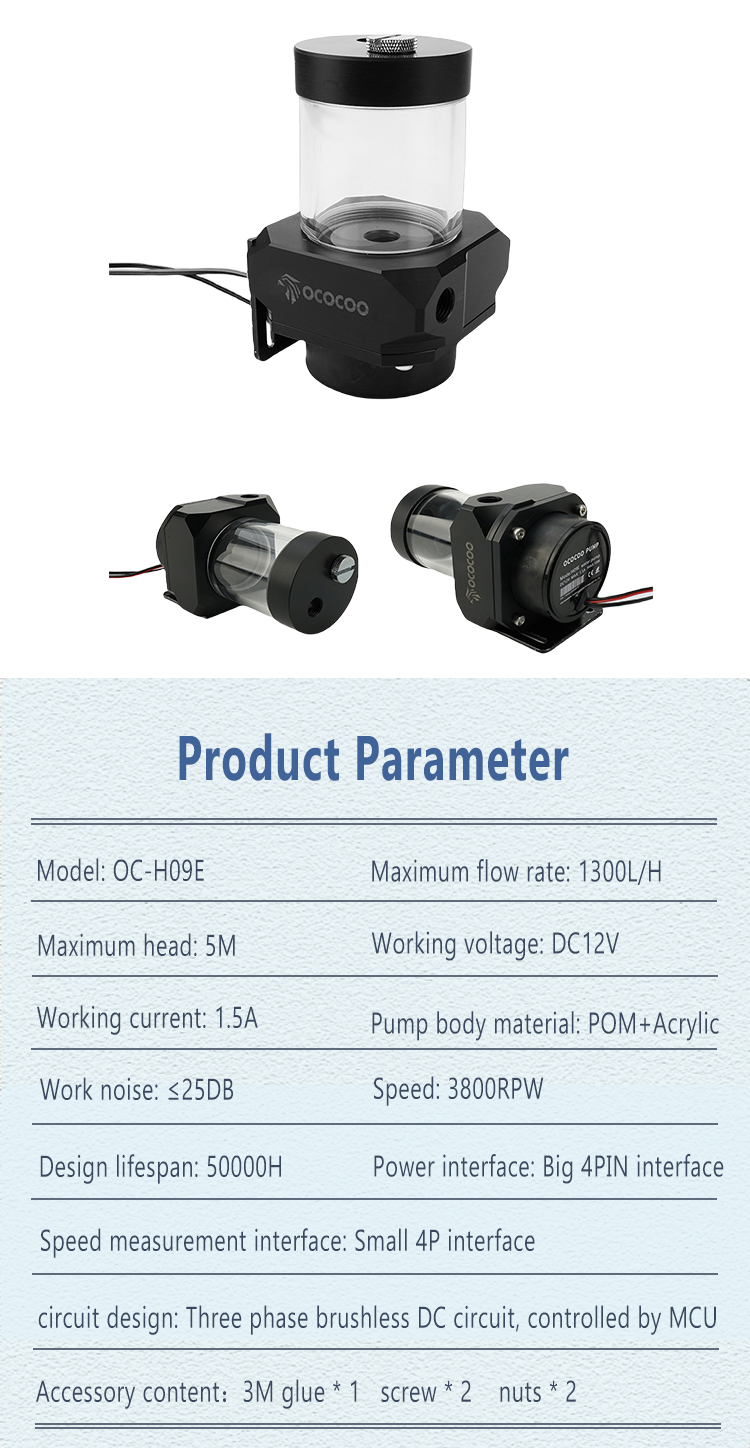

Product parameters:

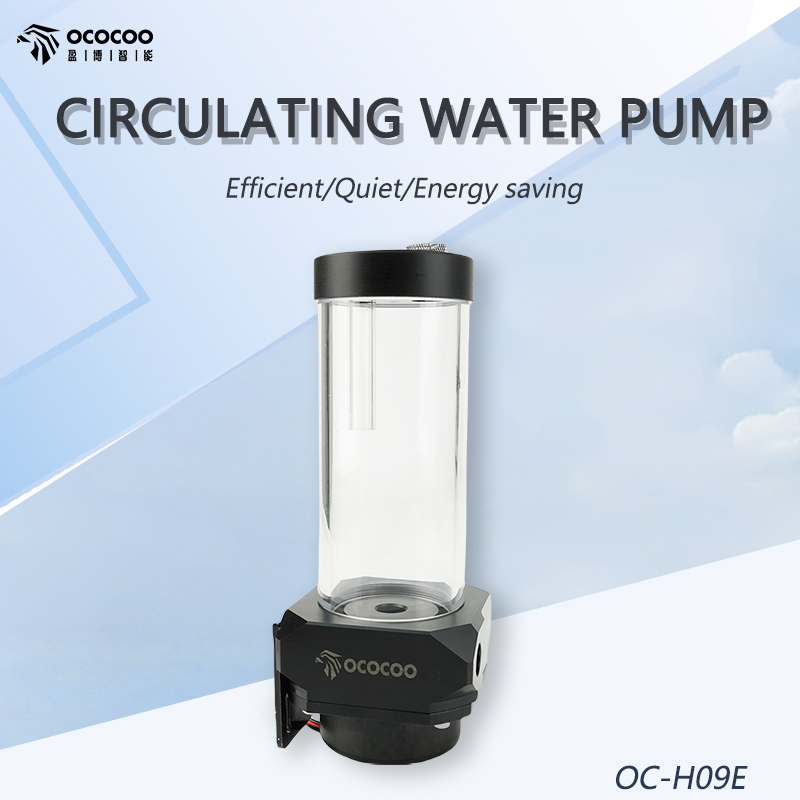

Model: OC-H09E

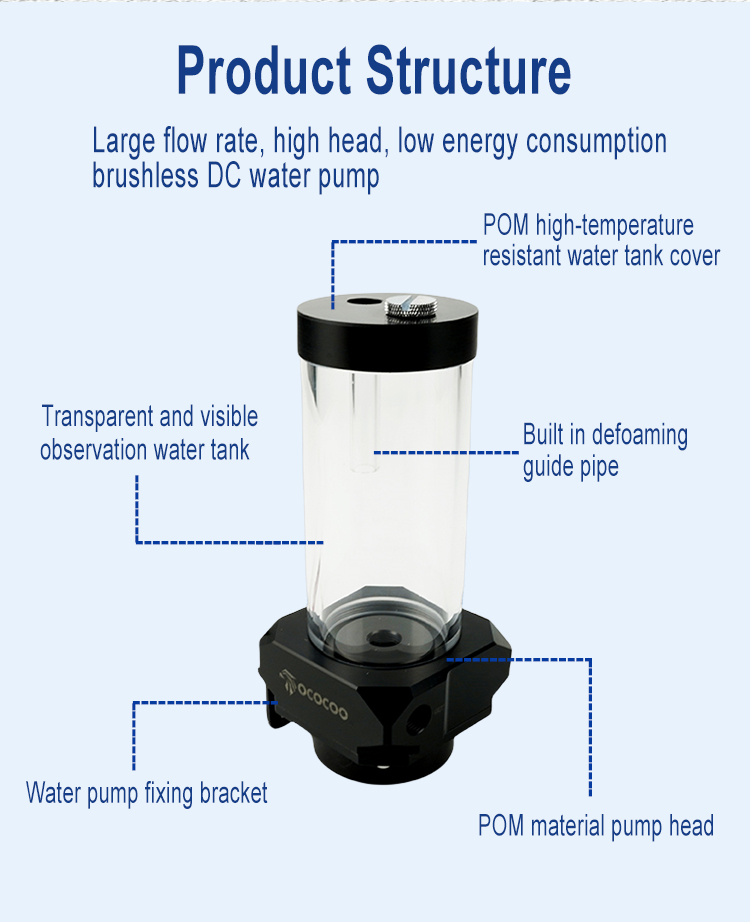

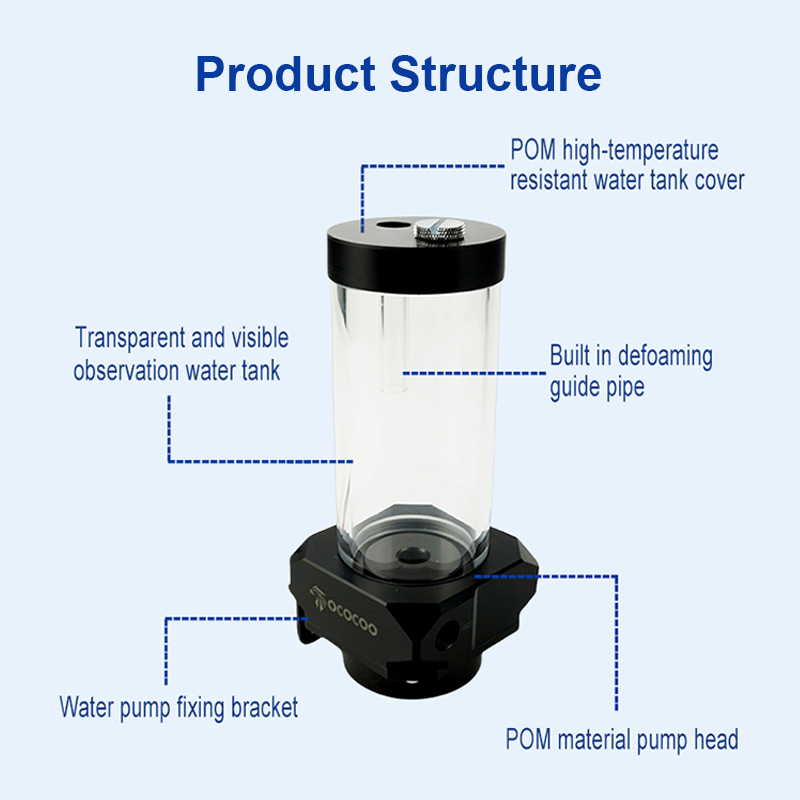

Material: POM+acrylic
Color: Black+Transparent
Working voltage: DC12V

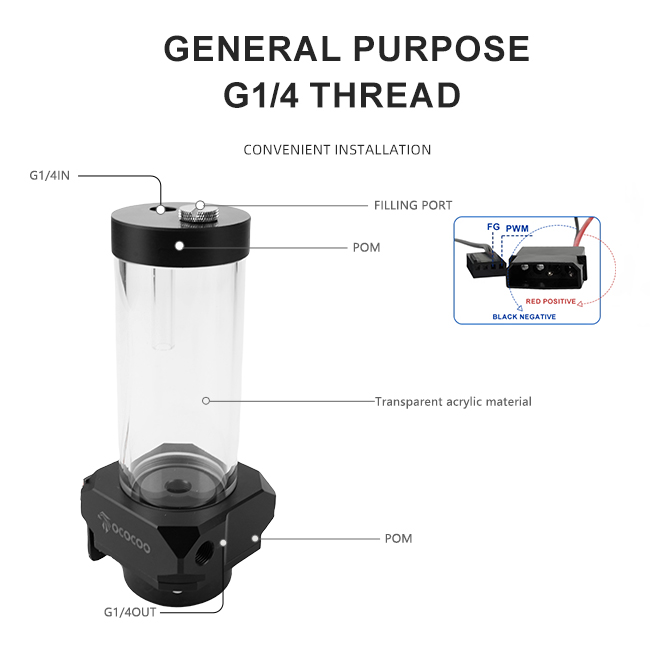

Inlet and outlet/water hole: G1/4 thread
Working current: 1.5A
Maximum flow rate: 1300L/H
Maximum head: 5M
Noise: ≤ 25DB
Speed: 3800RPM
Working temperature: -10~60 ℃
Lifetime: 50000 hours
Power interface: Big 4PIN interface
Speed measurement interface: Small 4PIN interface
Speed regulation type: Supports PWM

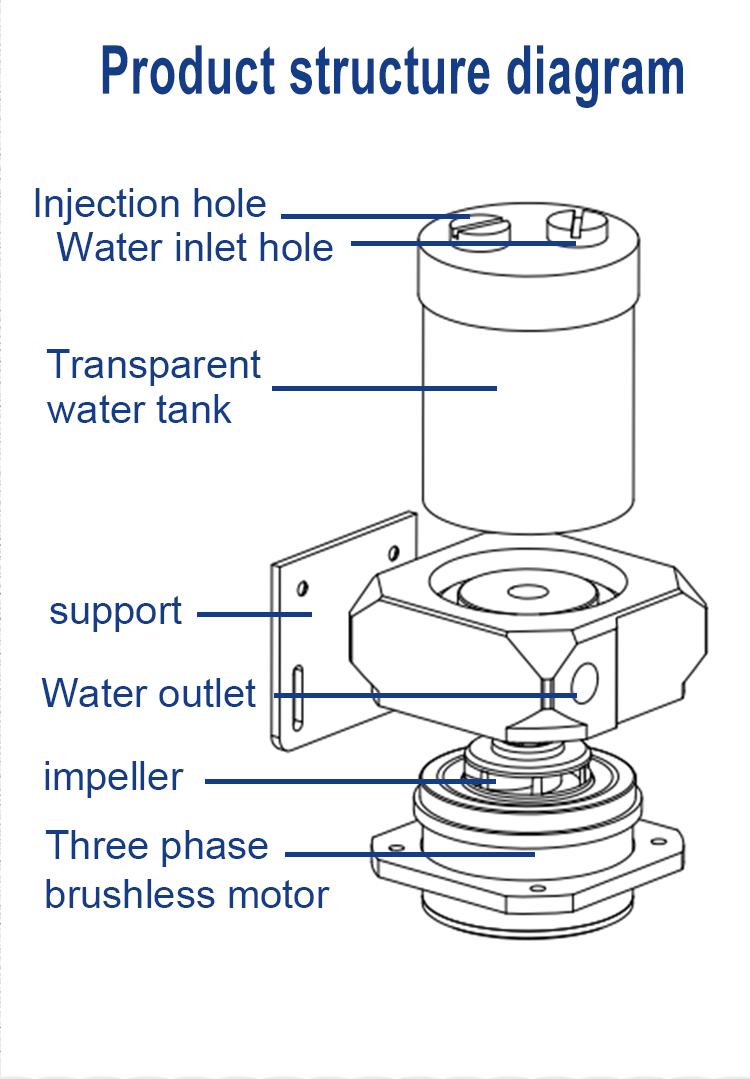

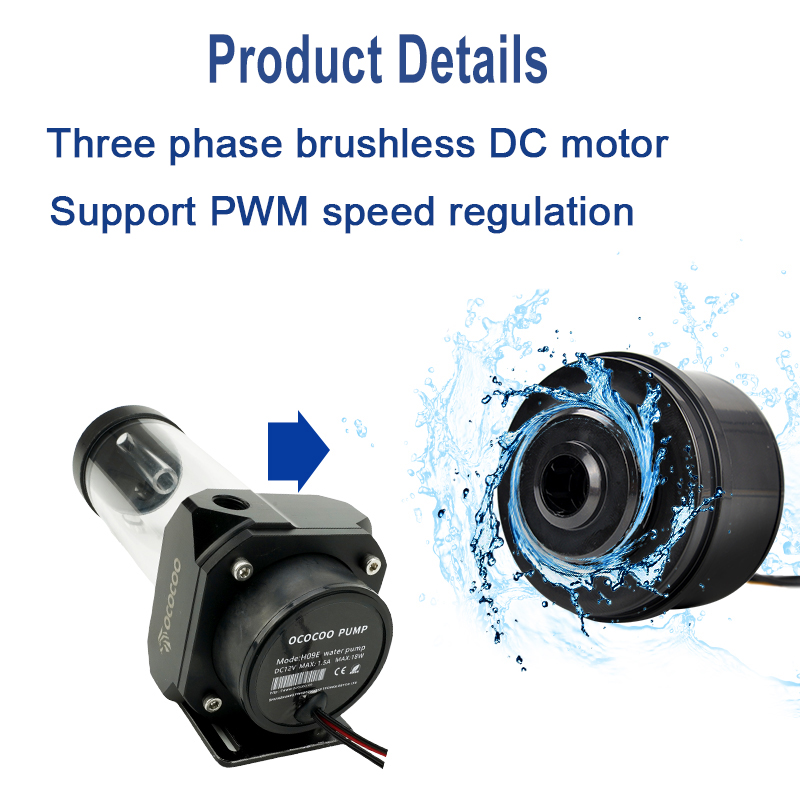

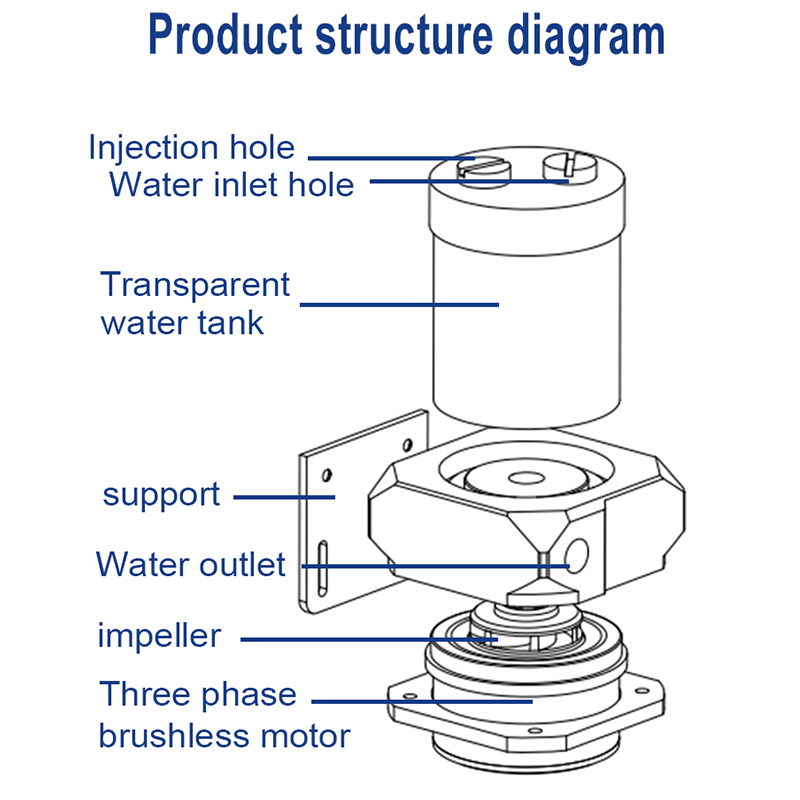

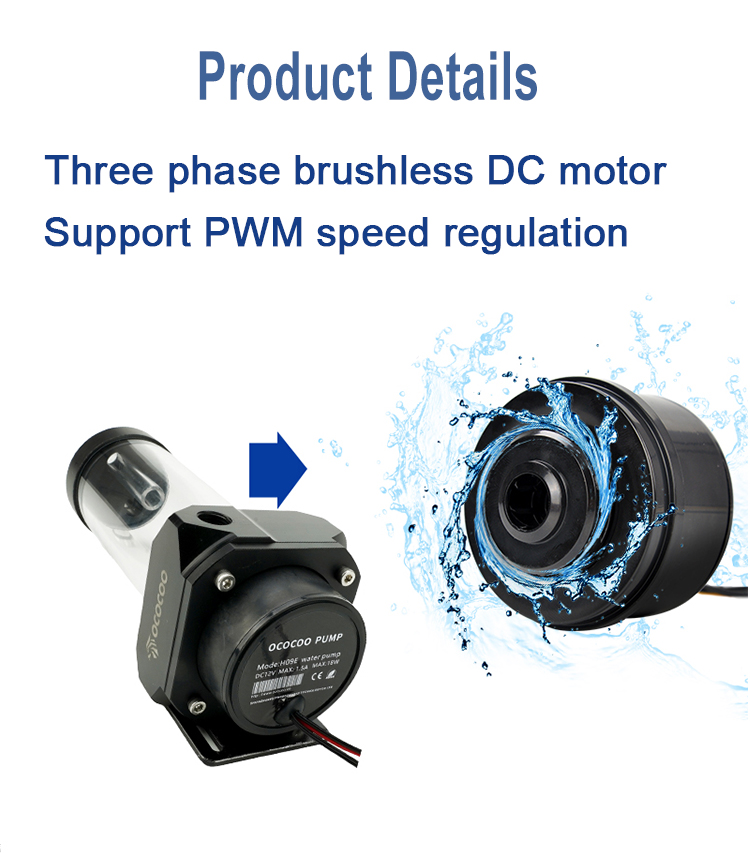

Circuit design: three-phase brushless DC circuit, controlled by MCU









Note to buyers:
1. When filling the liquid, it is necessary to start the pump power repeatedly for several times. This operation helps to drive the liquid into the loop and expel the air.

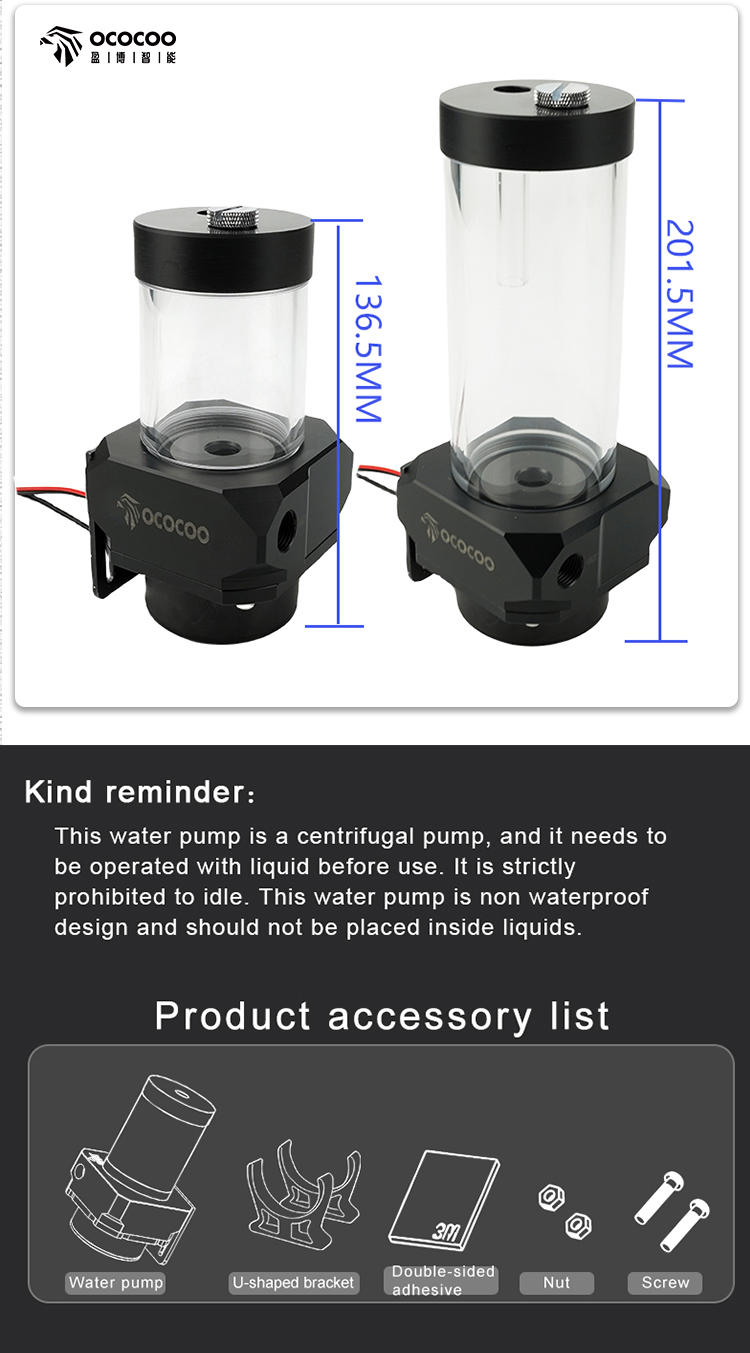

2. Do not idle the pump! If there is no liquid, turn off the pump power immediately to avoid damage to the pump.
3. When testing for water leakage, place a paper towel or towel at the joint of the pipe connector to locate the water leakage.
4. After the liquid is added, please open the interface screw above the tank, and let the water cooling loop continue to circulate for 24 hours, so that the gas can effectively discharge from the water cooling system.
