Product parameters:
Model: OC-H09C
Rated voltage: DC12 (V)
Voltage range: 8-13V
Rated current: 2.3A±10%
Rated power: 28W
Maximum flow : 13±15%L/min
Maximum lift: 12±1M
Material: POM+PPS+ acrylic
Noise: ≤40DBA/ level at 1 meter
Sealing: ≤0.2Mpa
Size: 253mm*55mm*62mm
Insulation class: E (120℃)
Weight: About 970g
FG Feedback: open leakage output, speed PRM=30*F

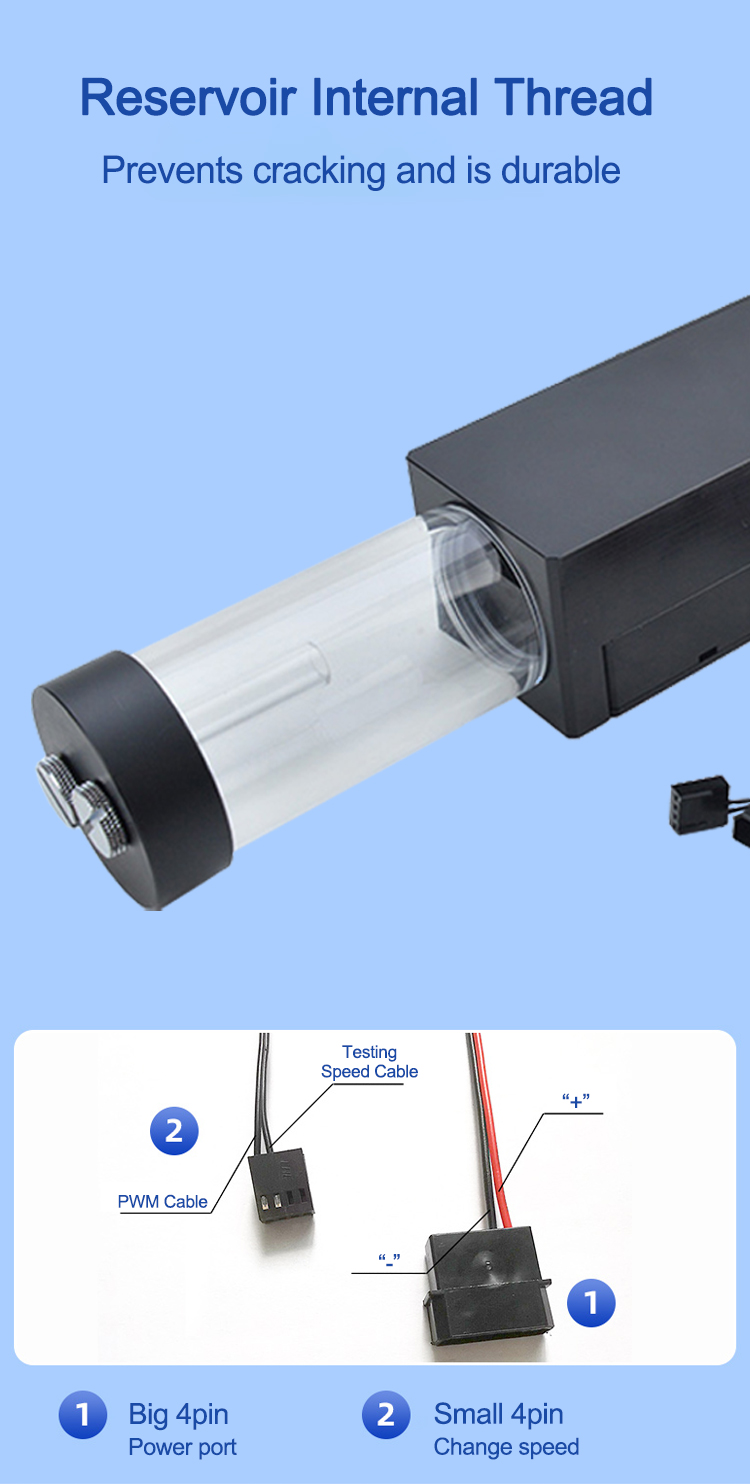

Speed control: PWM







Note to buyers:
1. When filling the liquid, it is necessary to start the pump power repeatedly for several times. This operation helps to drive the liquid into the loop and expel the air.
2. Do not idle the pump! If there is no liquid, turn off the pump power immediately to avoid damage to the pump.
3. When testing for water leakage, place a paper towel or towel at the joint of the pipe connector to locate the water leakage.
4. After the liquid is added, please open the interface screw above the tank, and let the water cooling loop continue to circulate for 24 hours, so that the gas can effectively discharge from the water cooling system.
