Product Parameters:

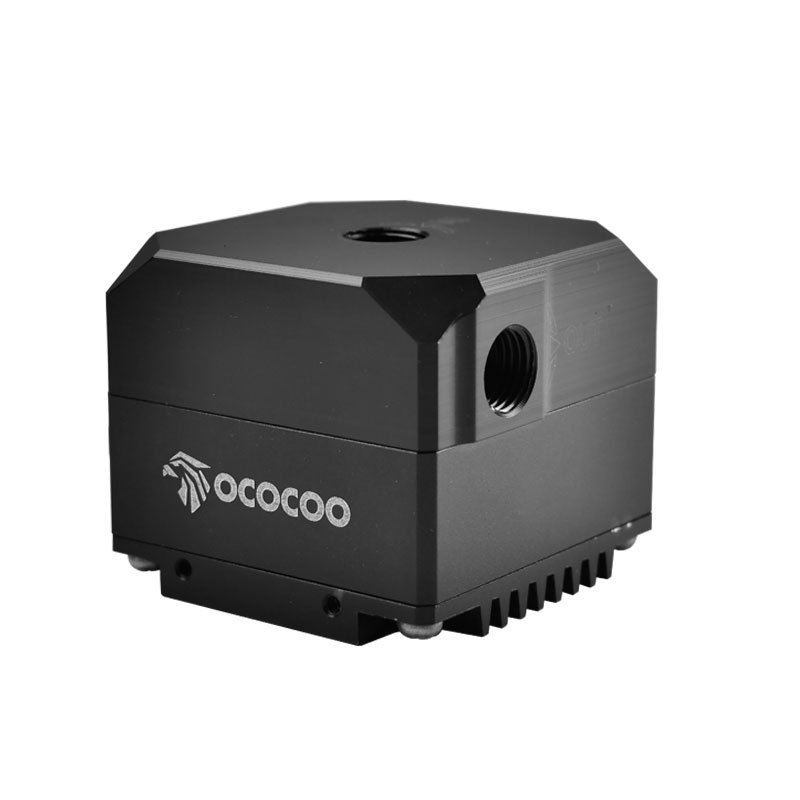

Model: OC-F60K
Maximum Head: 3±0.5M
Maximum Flow: 450L/H-510L/H
Voltage: DC12V/DC24V
Rated Current: 0.85±5%A
Rated Power: 10W
Working Noise: ≤25DB
Power Interface: Small 4PIN+FG+PWM
Speed Measurement Interface: Small 4PIN
Sealing: ≧ 0.2Mpa
Operating Temperature: -15~60℃
Inlet and Outlet: G1/4 thread
Bearing Material: Ceramic
Pump Body Material: Nylon+PPS
Dimensions: 67*74.5*41mm (Length * Width * Height)
Design Life: 30,000 hours
Appearance Color: Black
Weight: About 0.17KG (including packaging)
Working Principle: Centrifugal pump
Circuit Design: brushless DC circuit


Tip:
In order to create a good heat dissipation system after the installation of water cooling loop, please follow the following instructions before adding water cooling liquid:
1. It is strongly recommended to use commercially available water cooling liquid, such as OCOCOO special heat conduction liquid for water cooling, which can effectively resist corrosion, rust and non-flammable properties.Has good thermal conductivity, provides excellent heat dissipation efficiency.
2. When filling the water-cooled liquid, it is necessary to start the pump power repeatedly for several times. This repeated switching action can facilitate the water cooling liquid into the loop,and it pushes the air out.
3. Do not idle the pump! If there is no water cooling liquid, turn off the water cooling pump power immediately to avoid water pump damage.
4. Injecting water-cooled liquid from the top cover of the water tank can reduce the probability of air entering the pump and prolong the service life of the pump.
5. In order to exhaust smoothly, the slightly inclined system can be discharged with favorable air.
6. When testing whether there is water leakage, place toilet paper or towel at the joint of the pipe joint to confirm the water leakage.
7. After water injection is completed, please open the screw of water injection port above the water tank, and let the water cooling loop continue to circulate for 24 hours, so that the gas can be effectively discharged water cooling system.
