Product parameters:
Model number: OC-D700
Material: PPS+ Acrylic + Aluminum
Rated voltage: DC12V

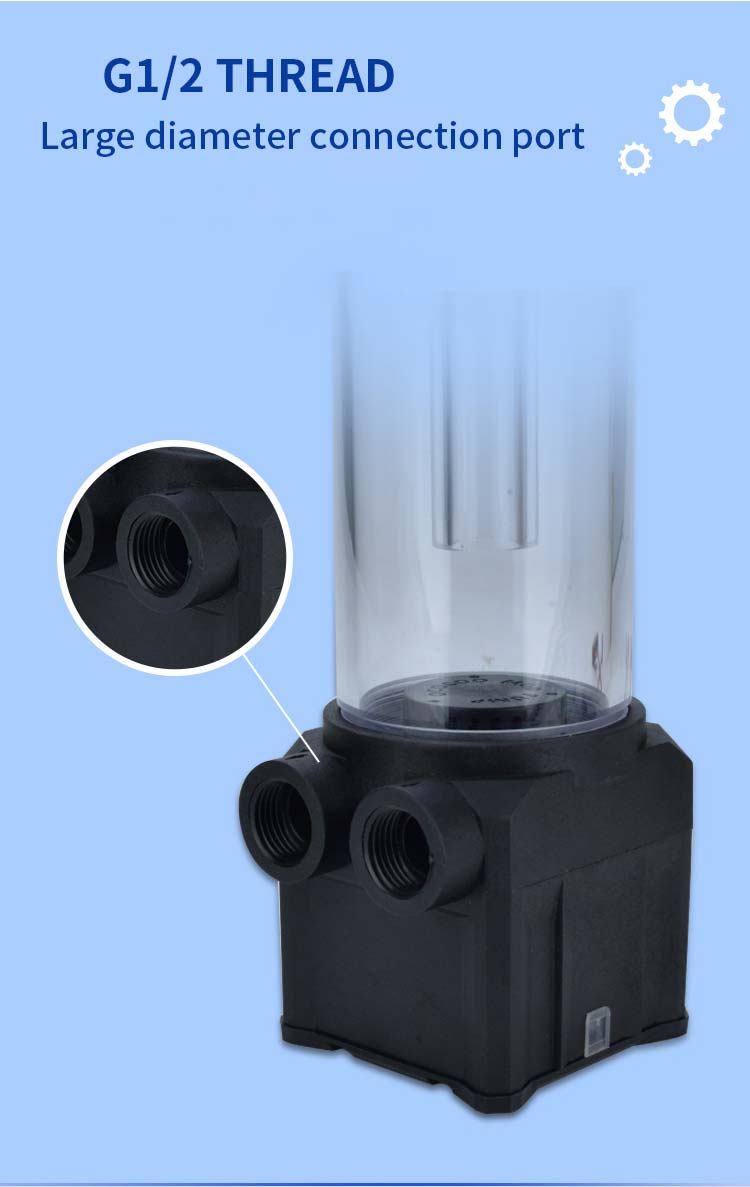

Inlet/Outlet: G1/2 thread
Voltage range: 8V-13V
Rated current: 3.5±5%A
Rated power: 42W

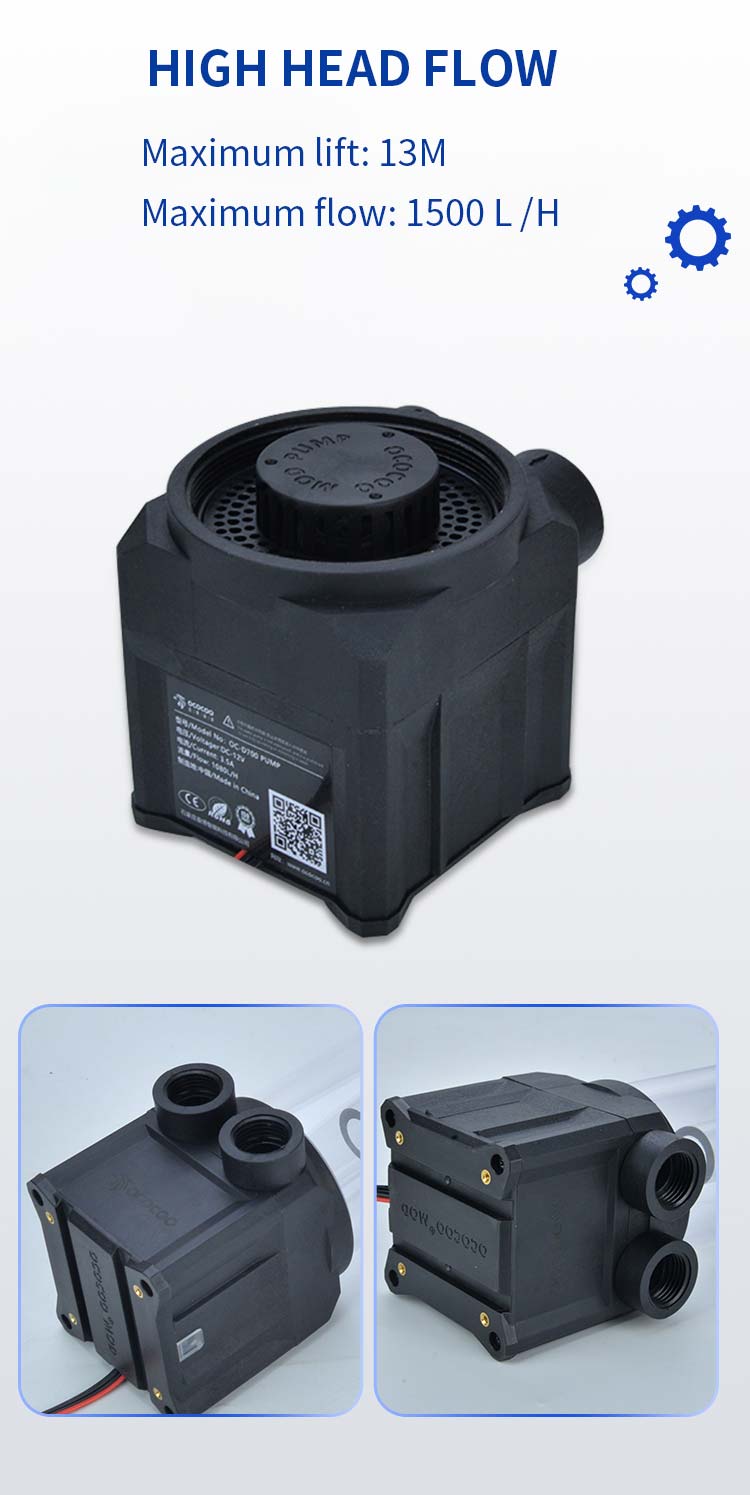

Maximum flow: 1500L/H
Maximum head: 13M
Noise: ≤35DB
Air tightness: ≤0.2MPA
Weight: About 821g

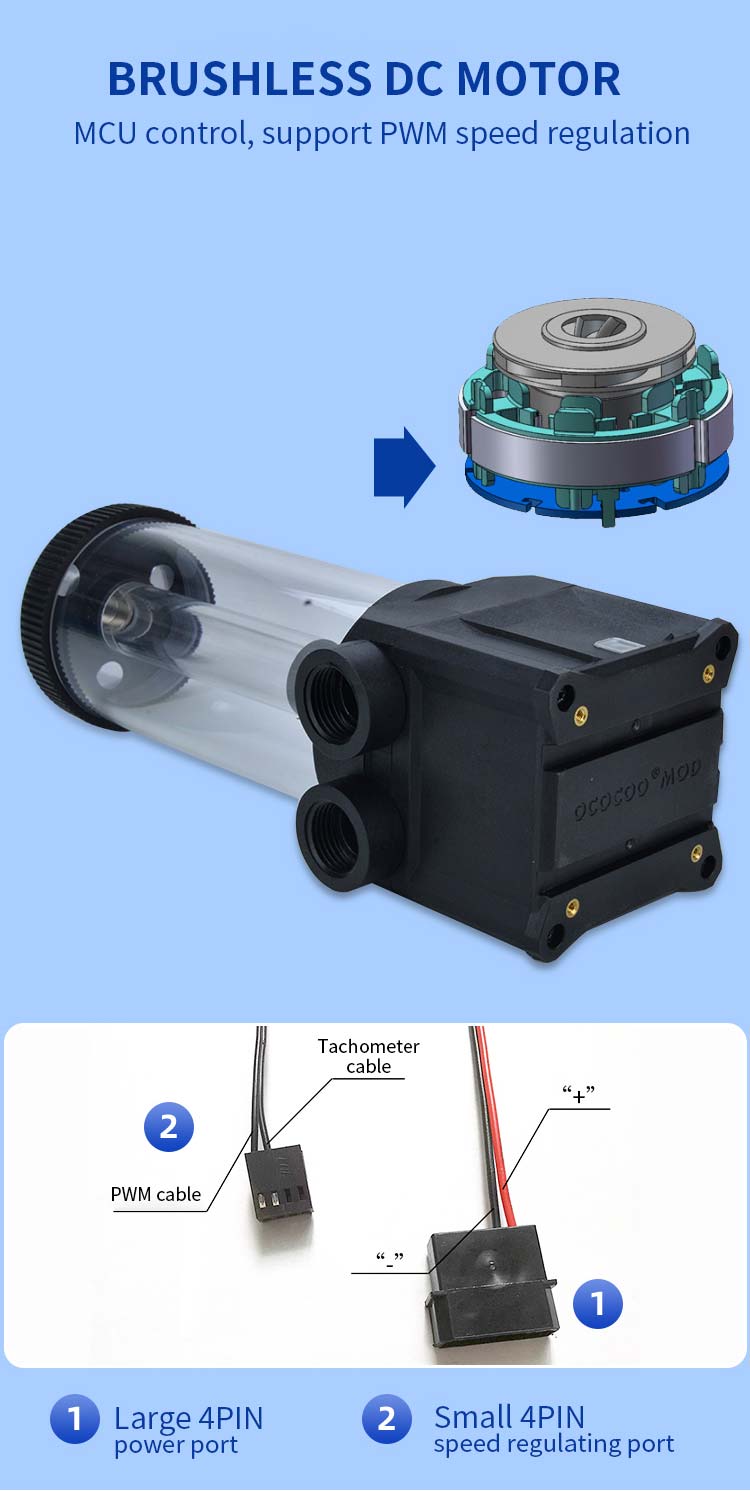

Speed control: Supports PWM
Life: 30,000 hours
Motor: three-phase brushless DC
Color: Black + Transparent
Power port: Large 4PIN
Speed control port: Small 4PIN

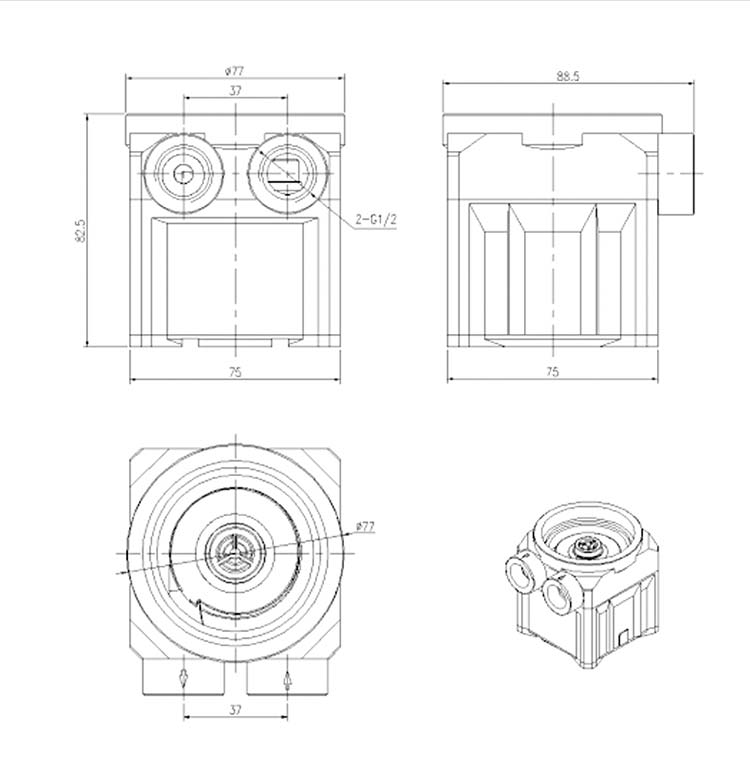

Size: 235mm*88.5mm*77mm
Note to buyers:
1. When filling the liquid, it is necessary to start the pump power repeatedly for several times. This operation helps to drive the liquid into the loop and expel the air.
2. Do not idle the pump! If there is no liquid, turn off the pump power immediately to avoid damage to the pump.
3. When testing for water leakage, place a paper towel or towel at the joint of the pipe connector to locate the water leakage.
4. After the liquid is added, please open the interface screw above the tank, and let the water cooling loop continue to circulate for 24 hours, so that the gas can effectively discharge from the water cooling system.
