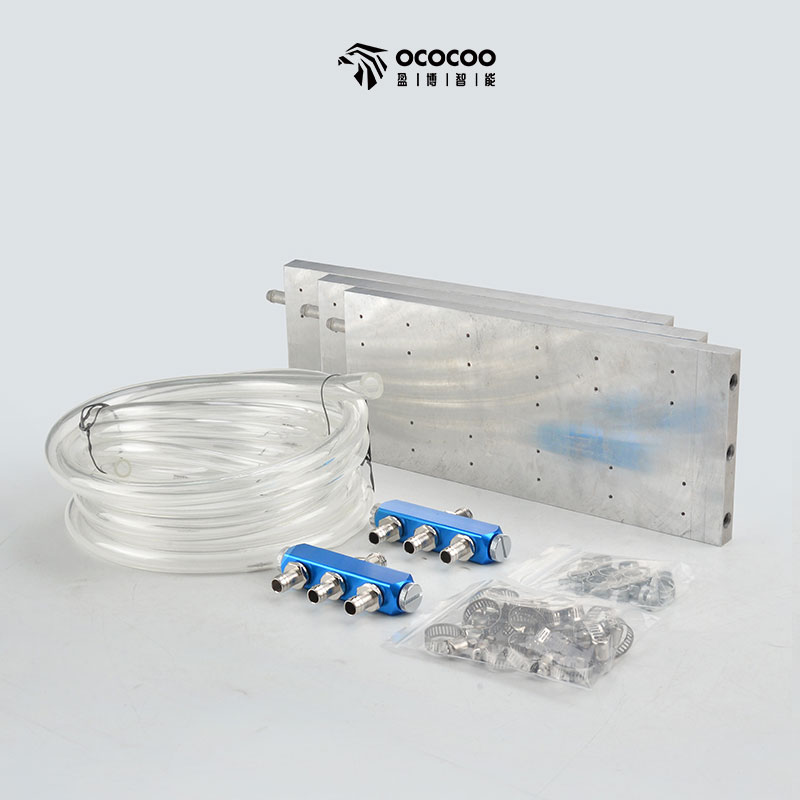

Name: What is the M30S water Cooled board kit
Type: Miner water cooling
Plate parameters:
Material: Aluminum
Color: Silver
Nozzle diameter: 9.8mm (suitable for hose with inner diameter of 8mm and outer diameter of 10mm)
Production process: Lead welding

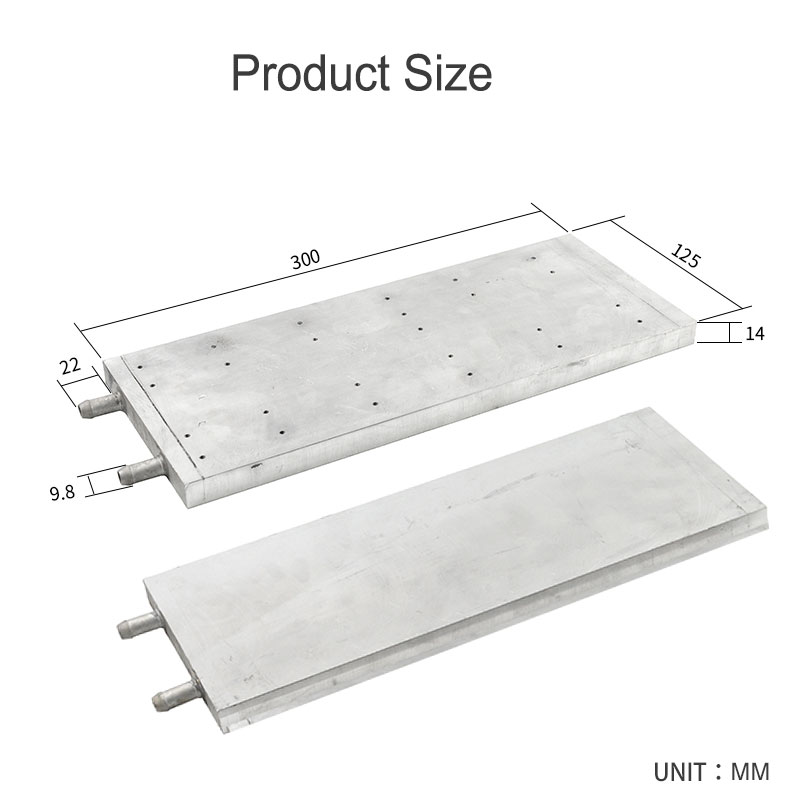

Plate Size: 300×125×14mm(Without water nozzle)
Weight: About 5.20KG (including packaging)
Apply to: Whats M30S miner

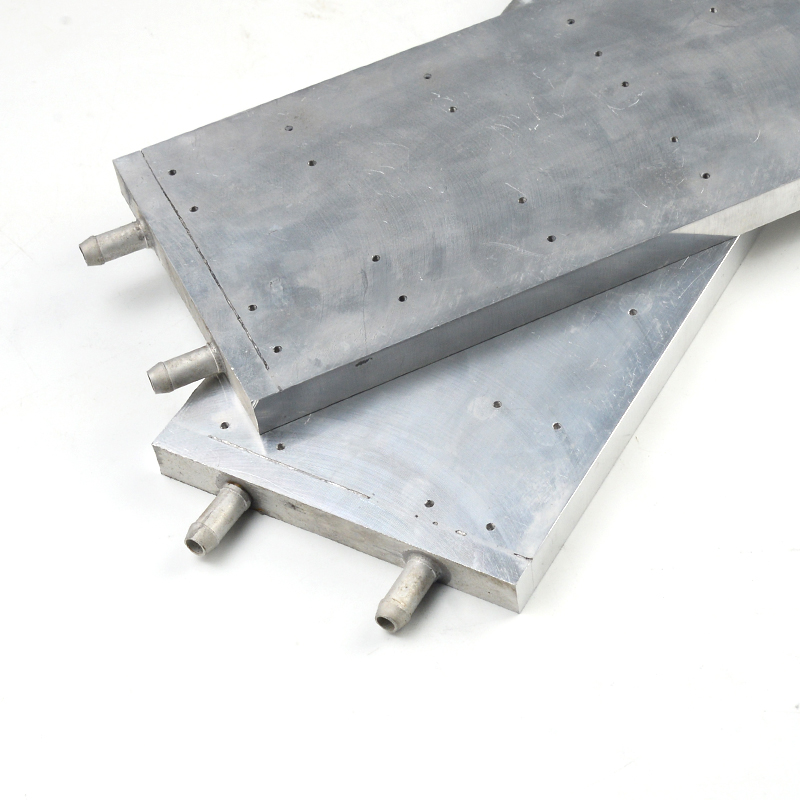

To get better thermal conductivity,there is no special treatment on surface,it is normally caused some oxidation film on the surface,please don’t worry there is no influence to water cooling system.

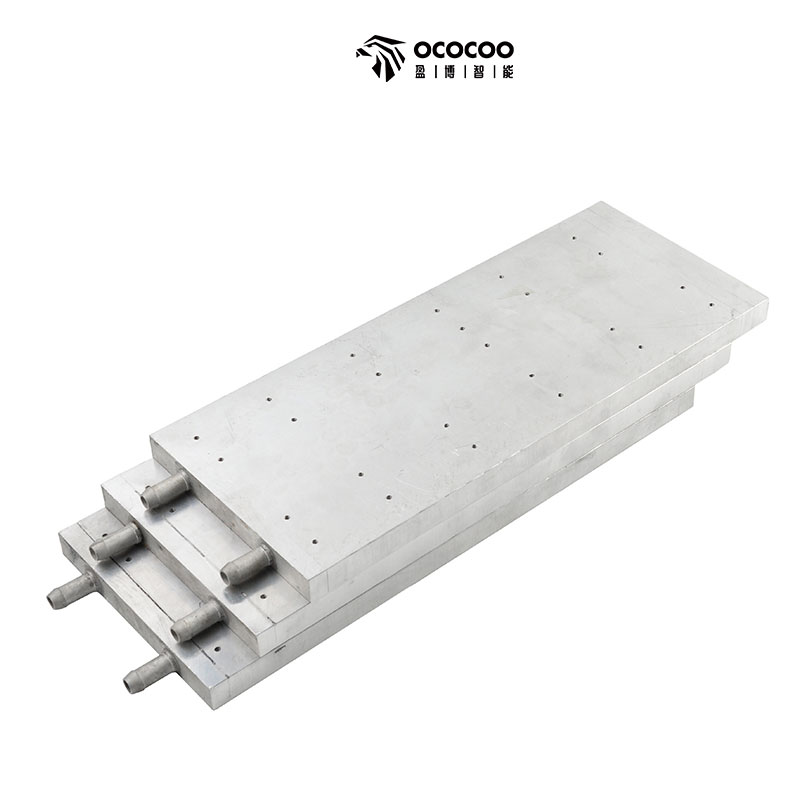

The water cooling plate is made by one-piece welding technology, which greatly reduces the leakage probability of liquid and improves the service life of the product.
Please feel free to use it.
Note to buyers:

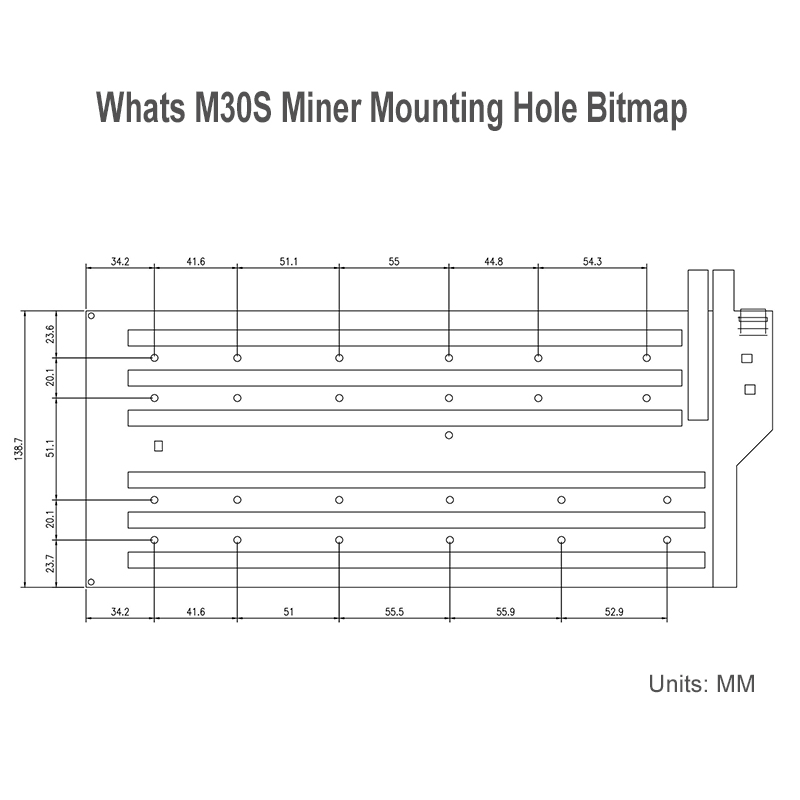

In order to make better use of the water cooling plate, please confirm the location of the mounting hole according to the picture before placing the order.
Tip：

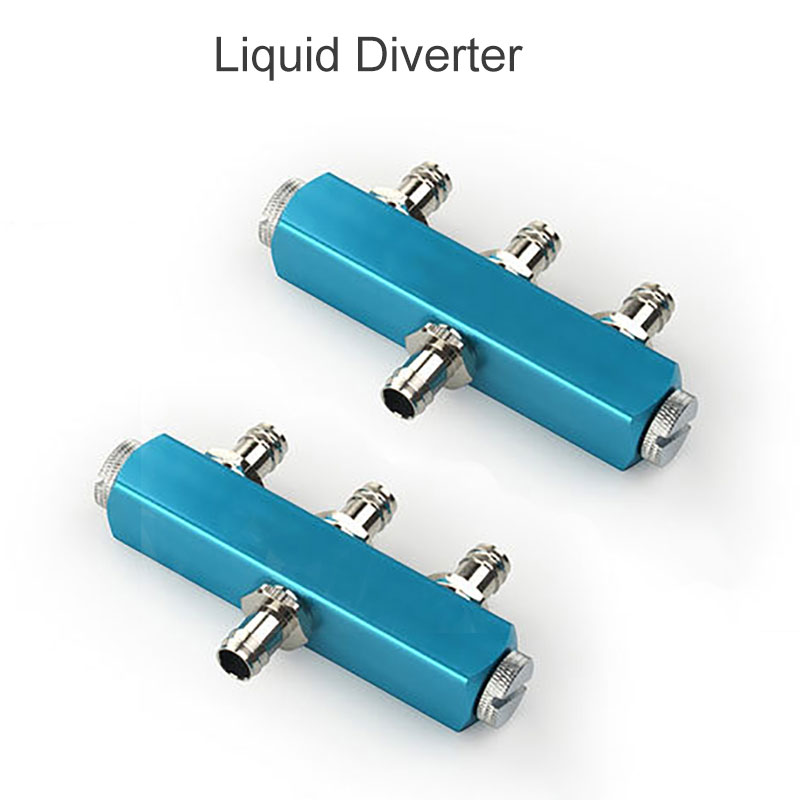

1. The water distributor has 3 interface positions, the total interface is connected to the joint with an inner diameter of 10mm, and the sub-interface is connected to the joint with an inner diameter of 8mm. We have connected the joint for you, you can connect the hose for use.
2. This heat dissipation system does not include thermal grease, please prepare your own.
3.If you have any questions about the product, please contact us.
