Features:

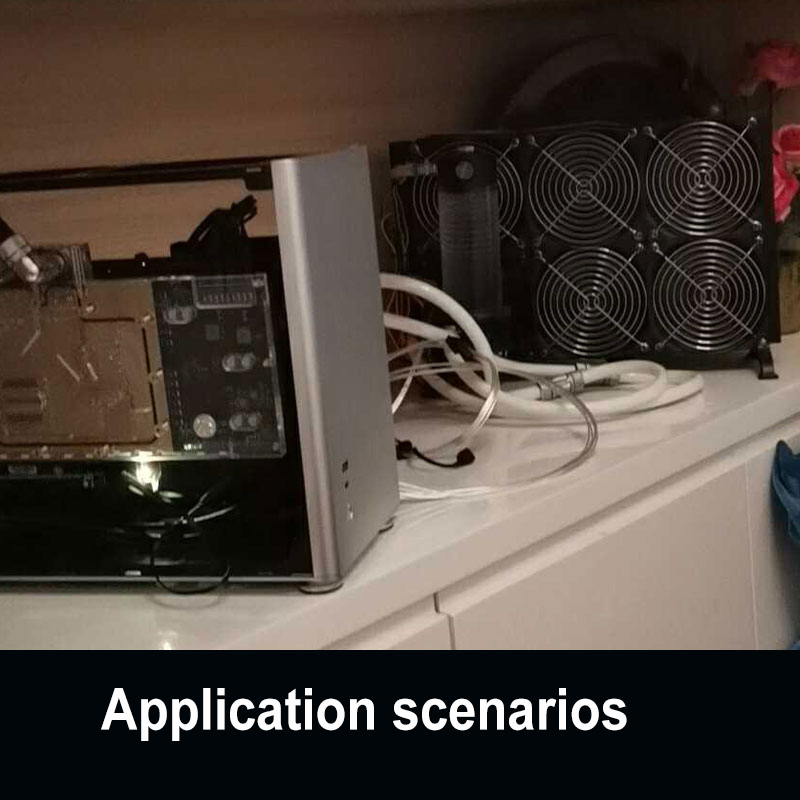

Suitable for computer mainframe, laser marking machine, server, high power LED, UV machine, laser cutting machine, ant or any machine water cooling.
This radiator needs to match the use of water cooling head, so that the radiator and cold head form a water loop, cold head attached to the hot spot to take away the heat, the heat out to achieve the effect of cooling.

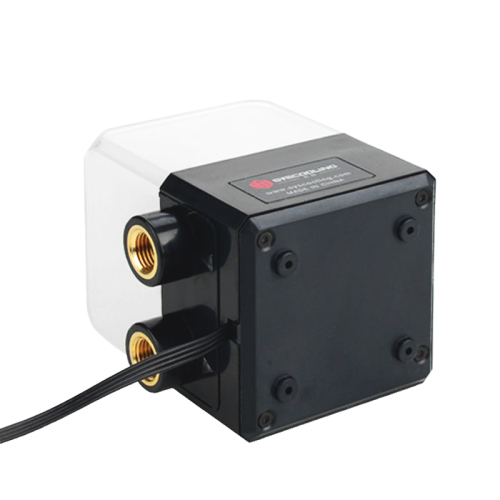

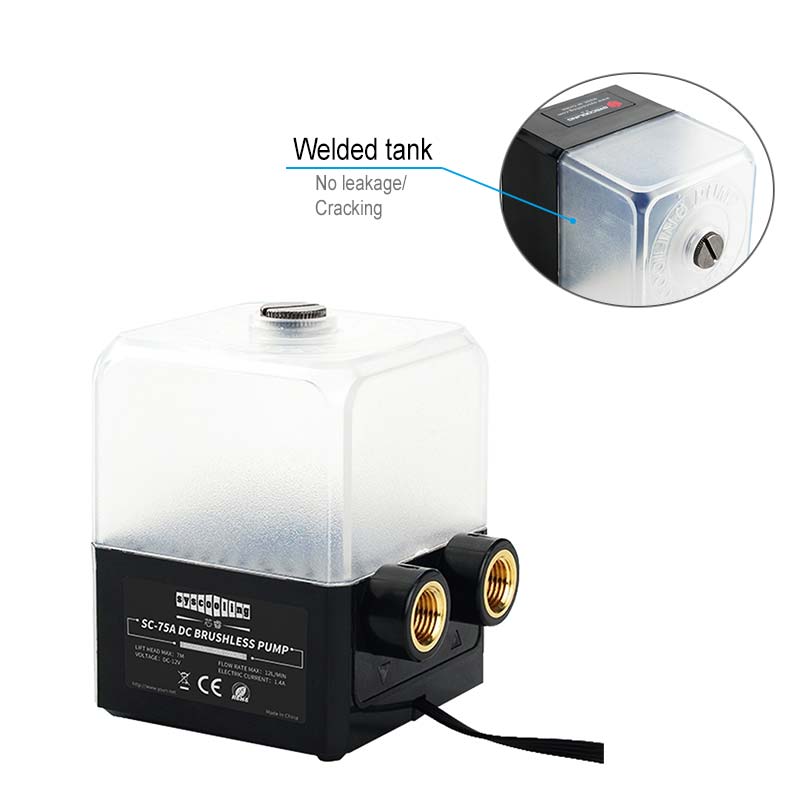

Pump Parameters:

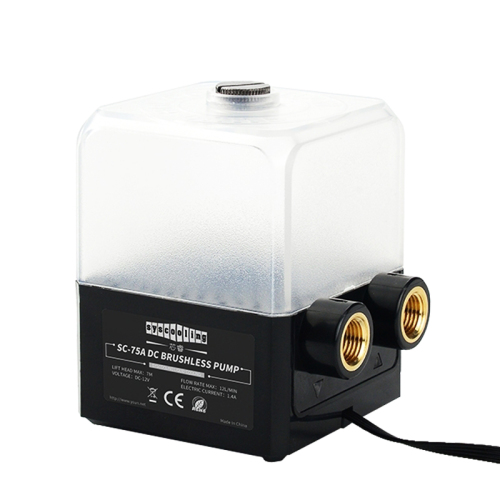

Model:SC-P75A
Maximum flow: 750L/H
Maximum head: 7M
Voltage: DC12V
Operating Current: 1.4A
Size: 86×74×102.5 mm
Working noise: ≤25DB
Bearing material: Stainless steel
Injection hole: G1/4 thread
Maximum speed: 4300RPM
Pump body material: ABS

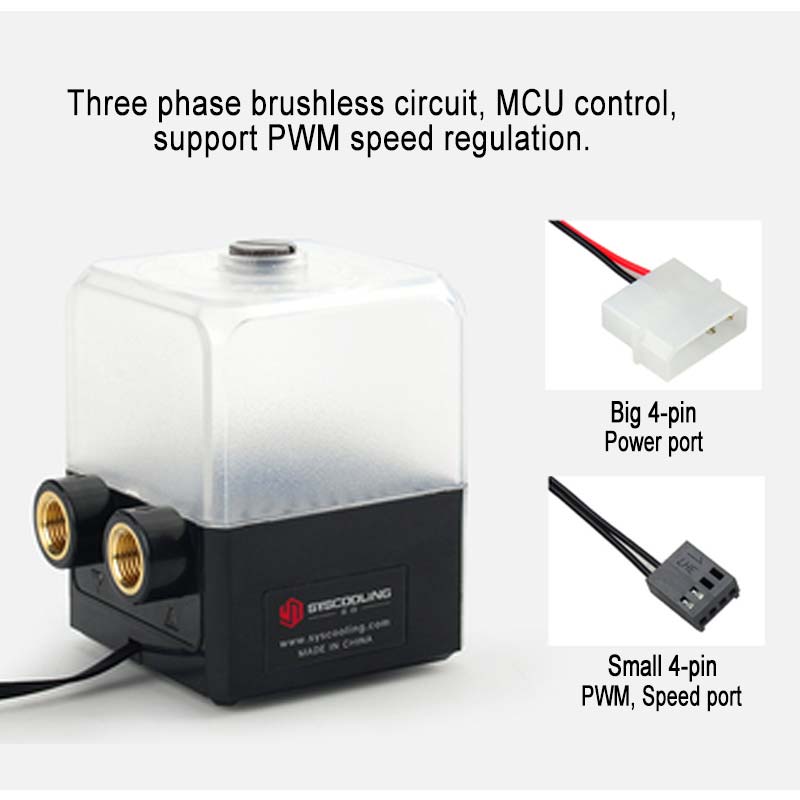

Speed port: Small 4PIN
Power port: Big 4PIN
Circuit design: three-phase brushless DC circuit, MCU control

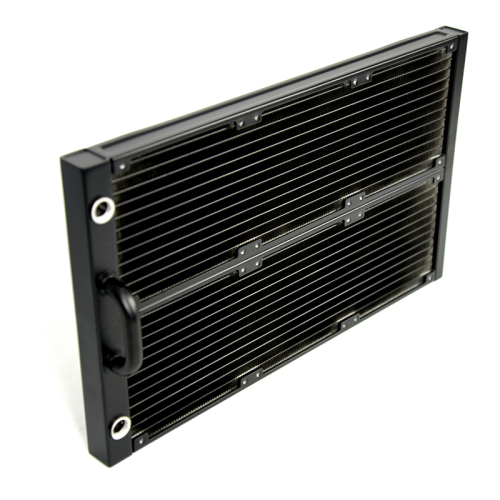

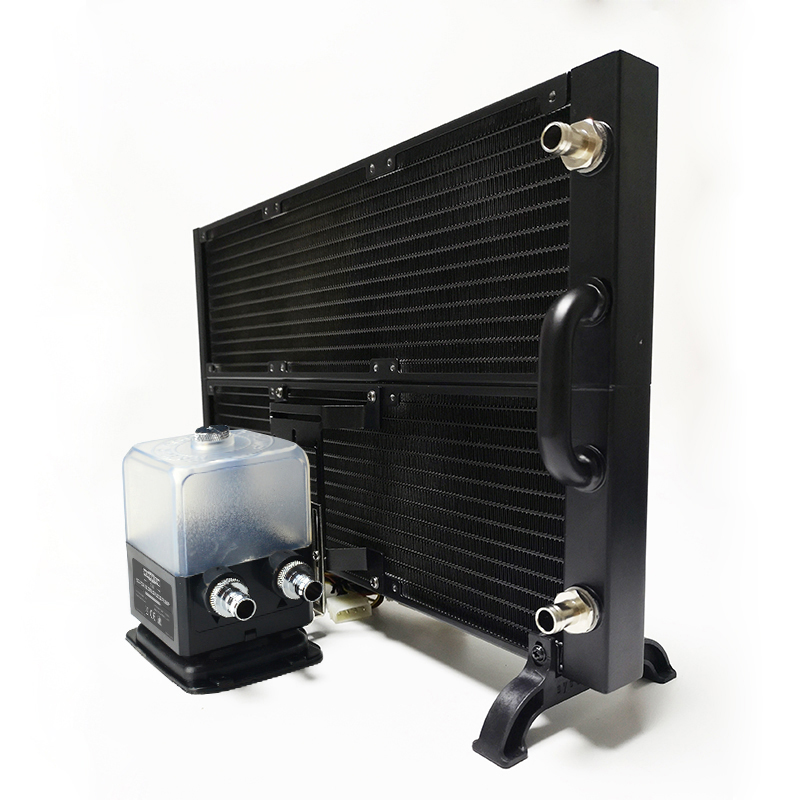

Radiator parameters:
Material: Aluminum
Color: Black
Connection port: G1/4 thread
Number of waterways: 24

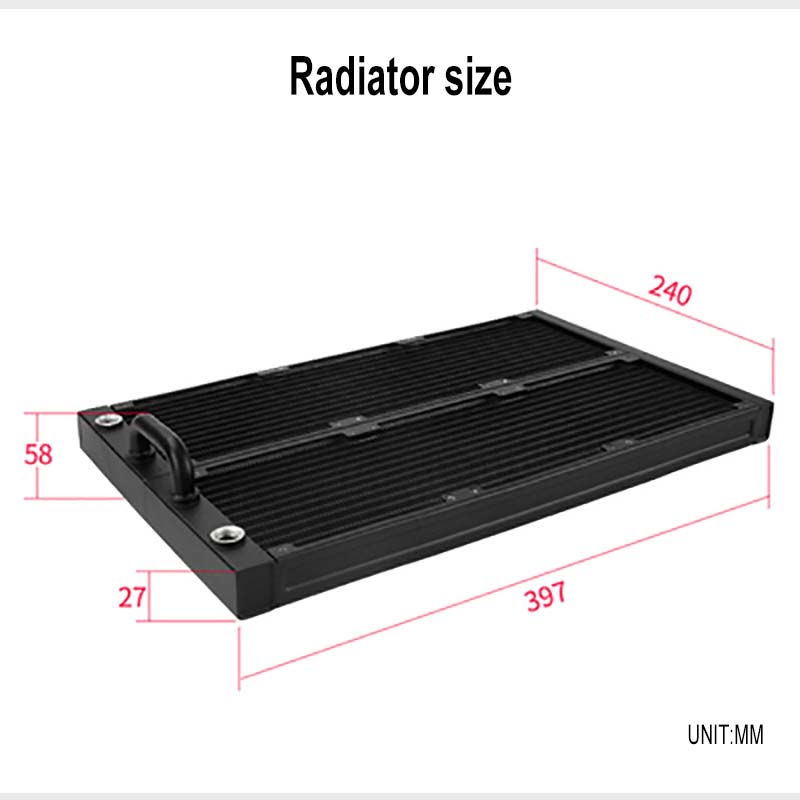

Size: 397 mm * 240 mm * 58 mm

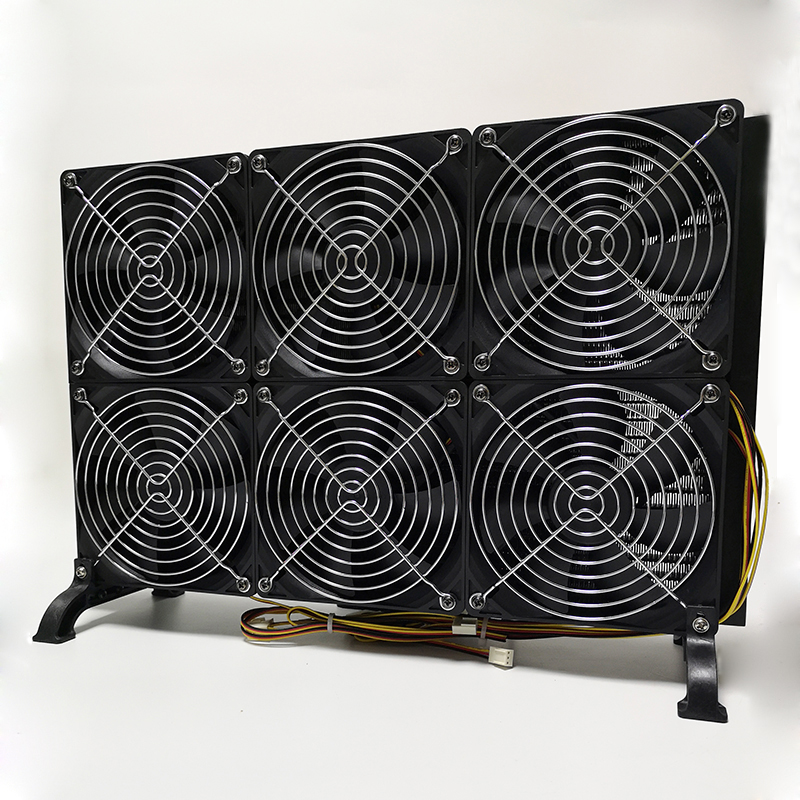

Fan diameter: 120mm x 6
Surface: Paint process

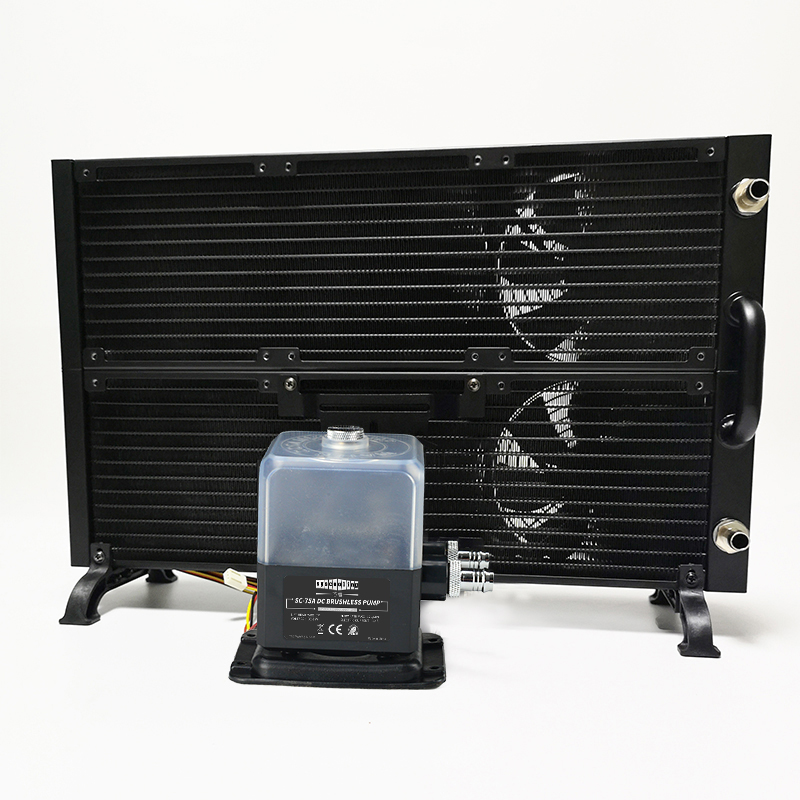

Package list:
360 by 360 radiator ×1
Fan ×6
Fan cover× 6
SC-P75A pump ×1
R45 Heat sink support x 1
Pump bracket ×1
L-type bracket ×1
Barb×6
10mm hose x 2 m
Hose hoops ×8
Line×2
Buyer's note: Some parts will be assembled before shipment.
