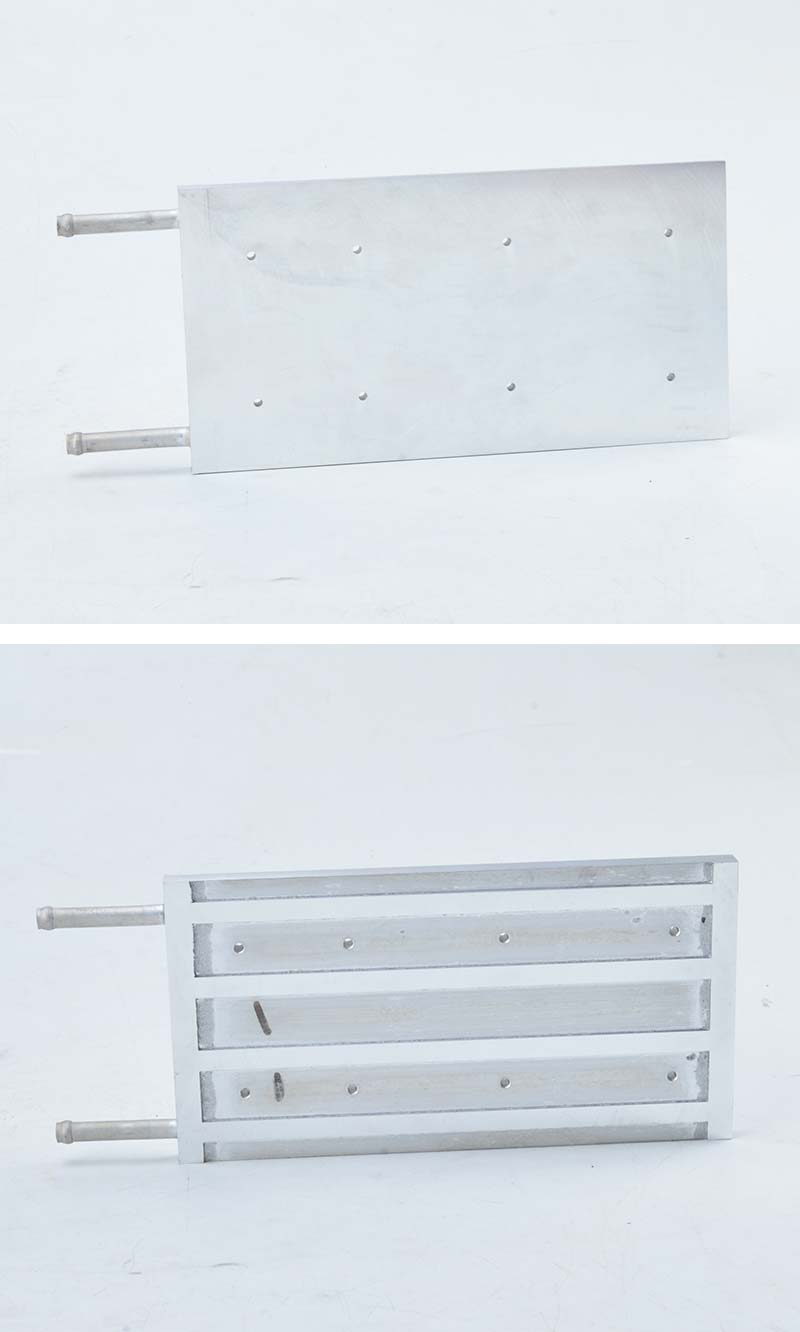

Plates parameters:
Material: Aluminum
Color: Silver

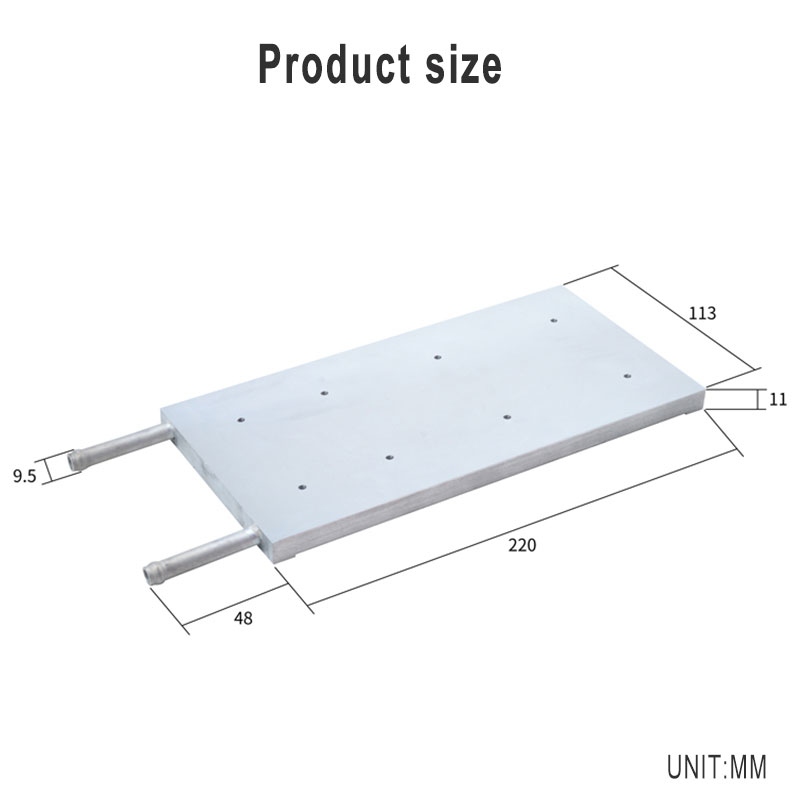

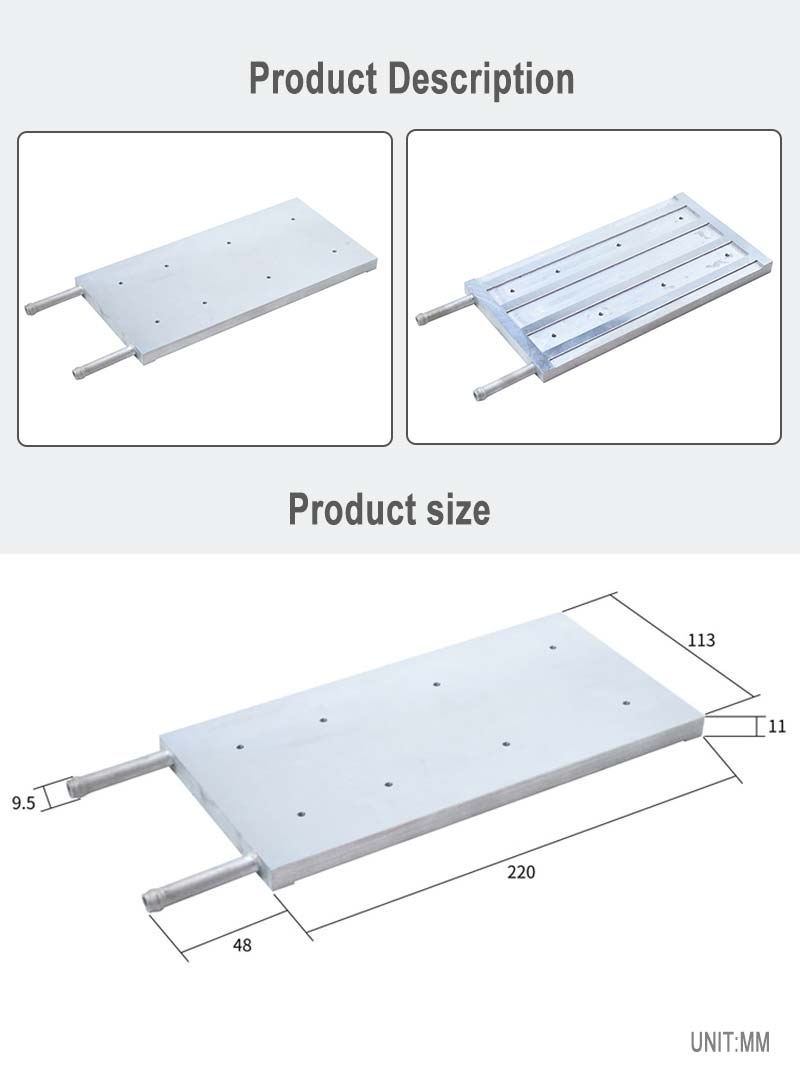

Size: 220*113*11mm (without water nozzle)
Connector size: length 48mm, diameter 9.5mm

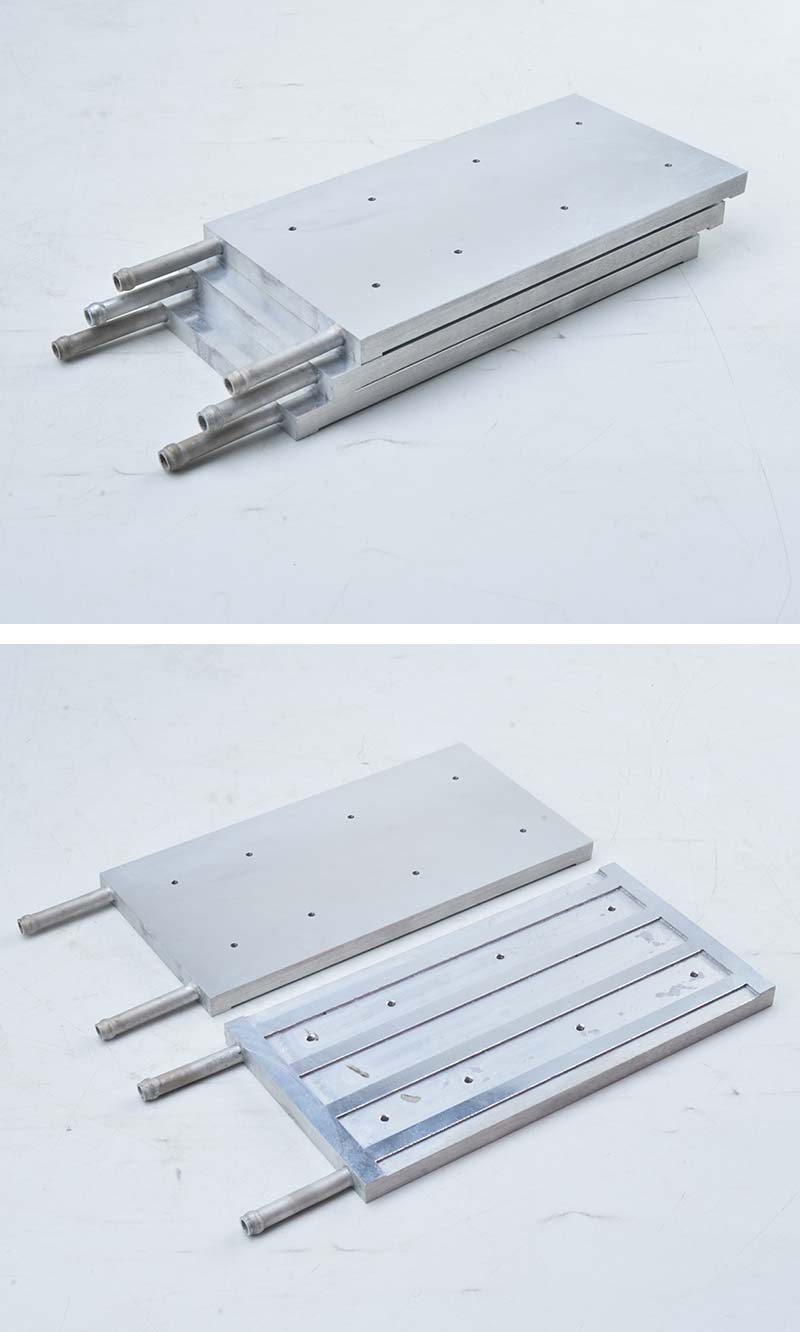

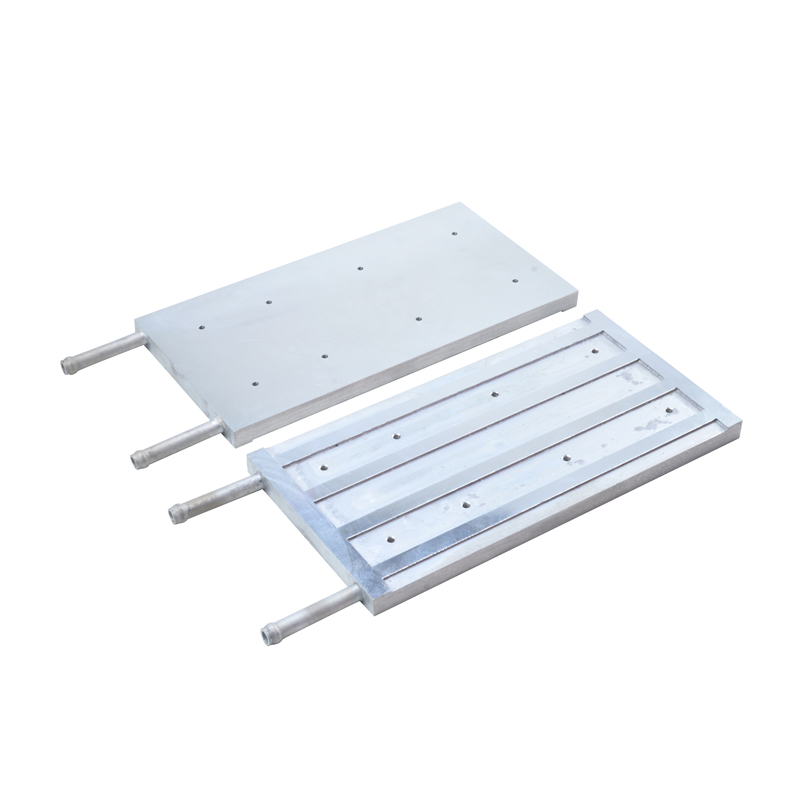

Process: Overall welding

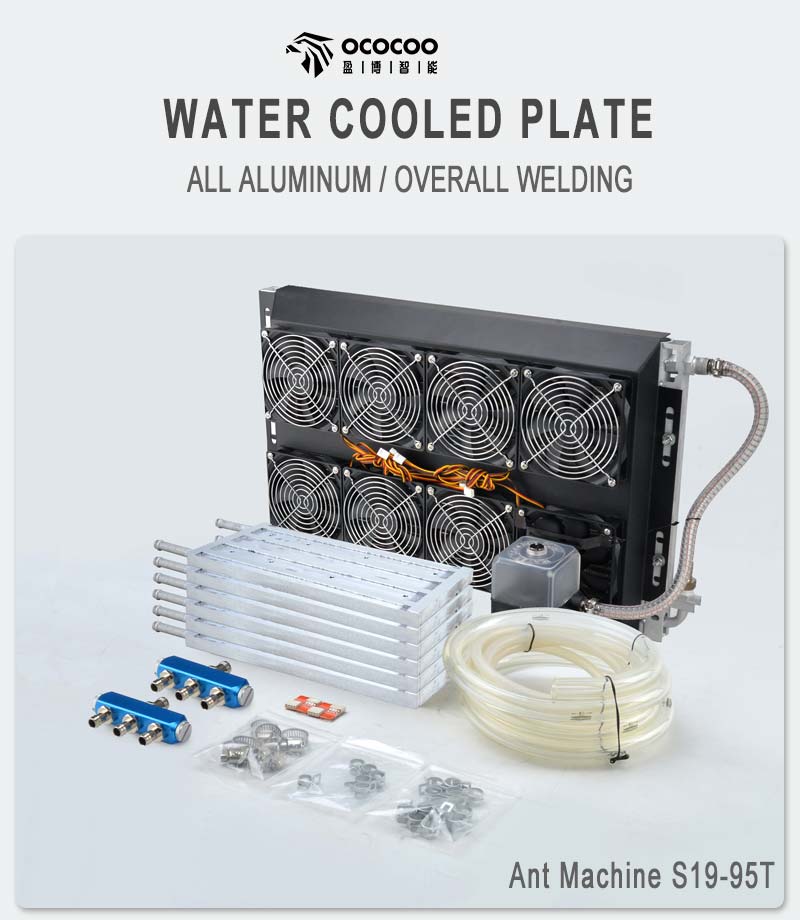

Application: Suitable for ant miner S19-95T water cooling system
Features:

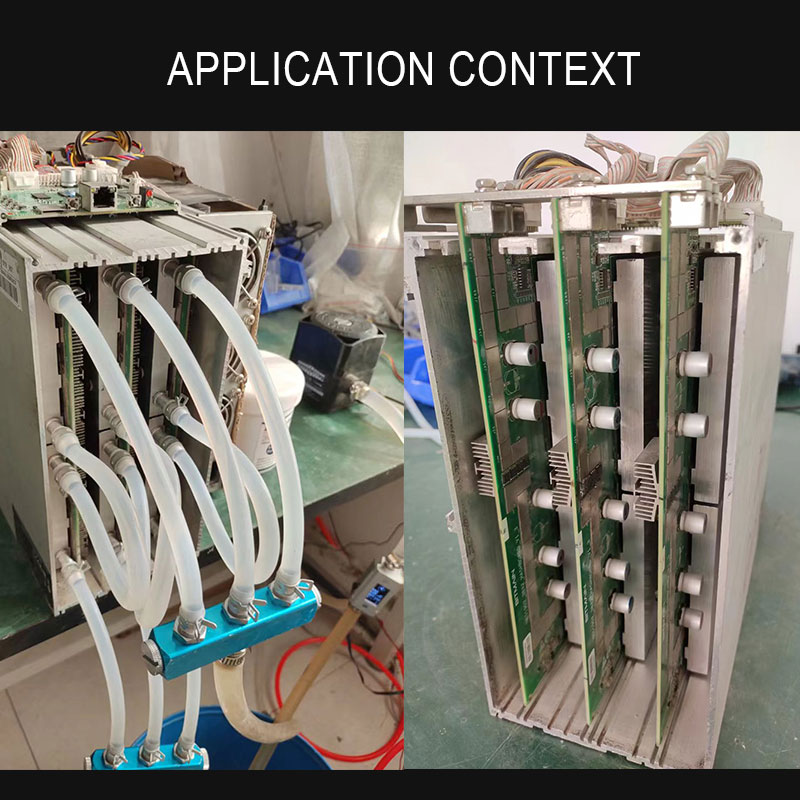

The system consists of six water cold plates, and when installed, every two water cold plates serve for one hash board.

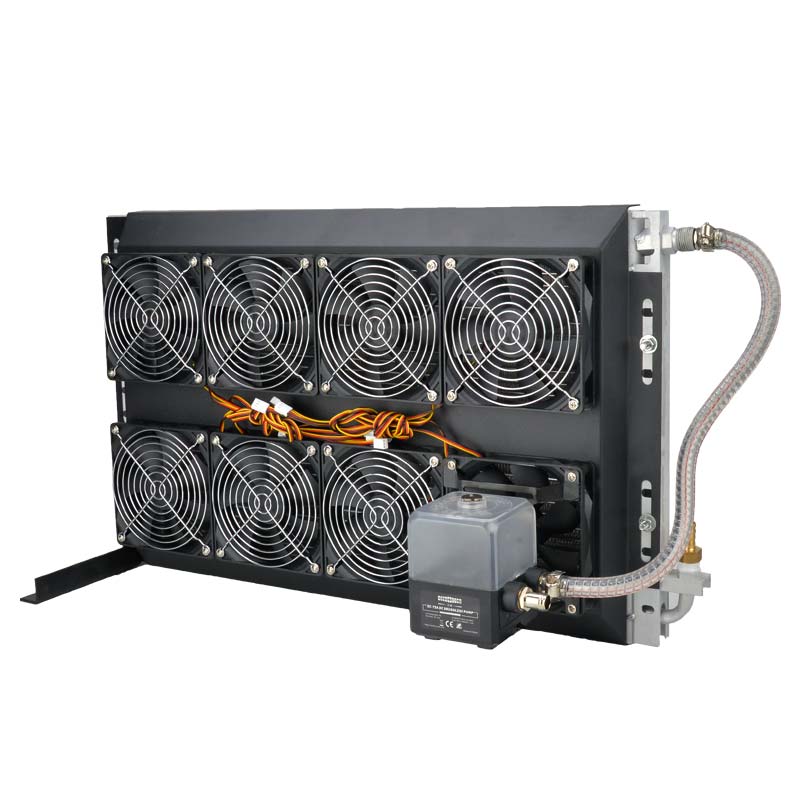

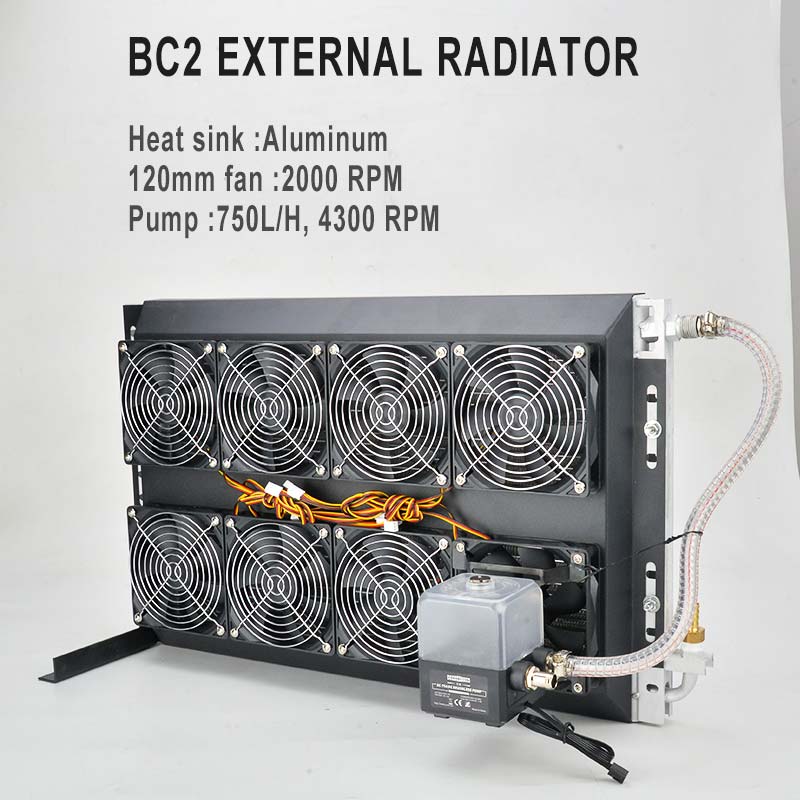

It is equipped with high-power external radiator and thickened pipe to prevent pipe rupture caused by excessive liquid temperature during system use.
Tip:

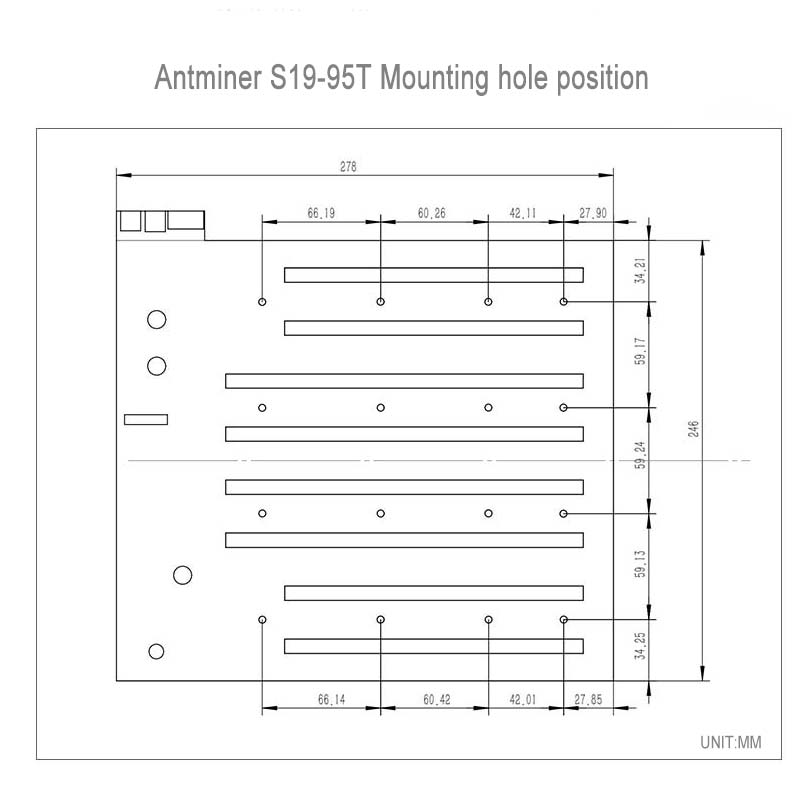

1. Please first confirm whether the hash plate screw hole position is appropriate.

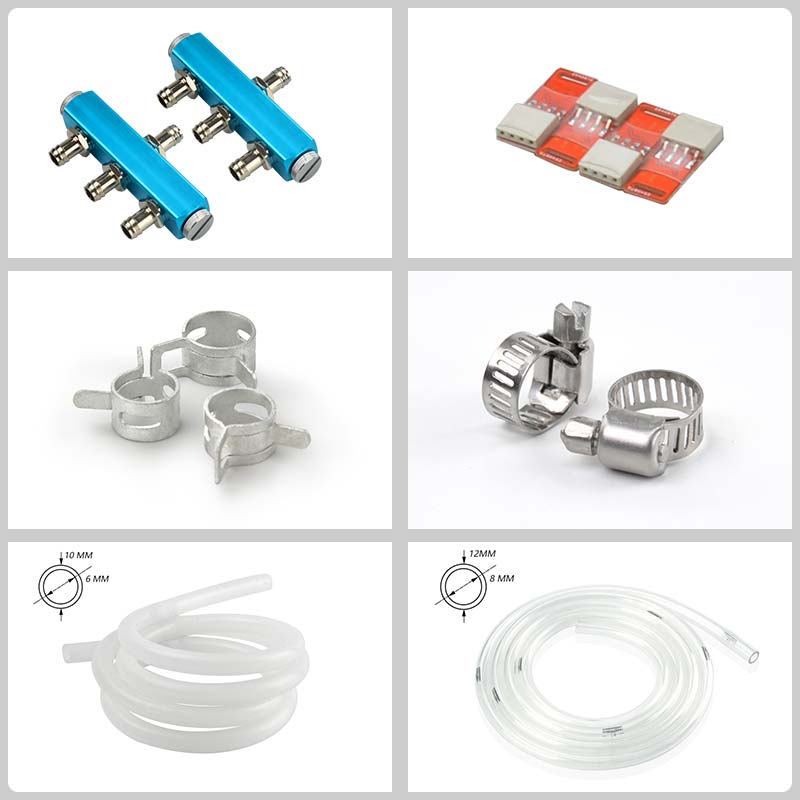

2. The water distributor has 6 interface positions, the total interface is connected to the joint with an inner diameter of 10mm, and the sub-interface is connected to the joint with an inner diameter of 6mm. We have connected the joint for you, you can connect the hose for use.
3. This heat dissipation system does not include thermal grease, please prepare your own.
