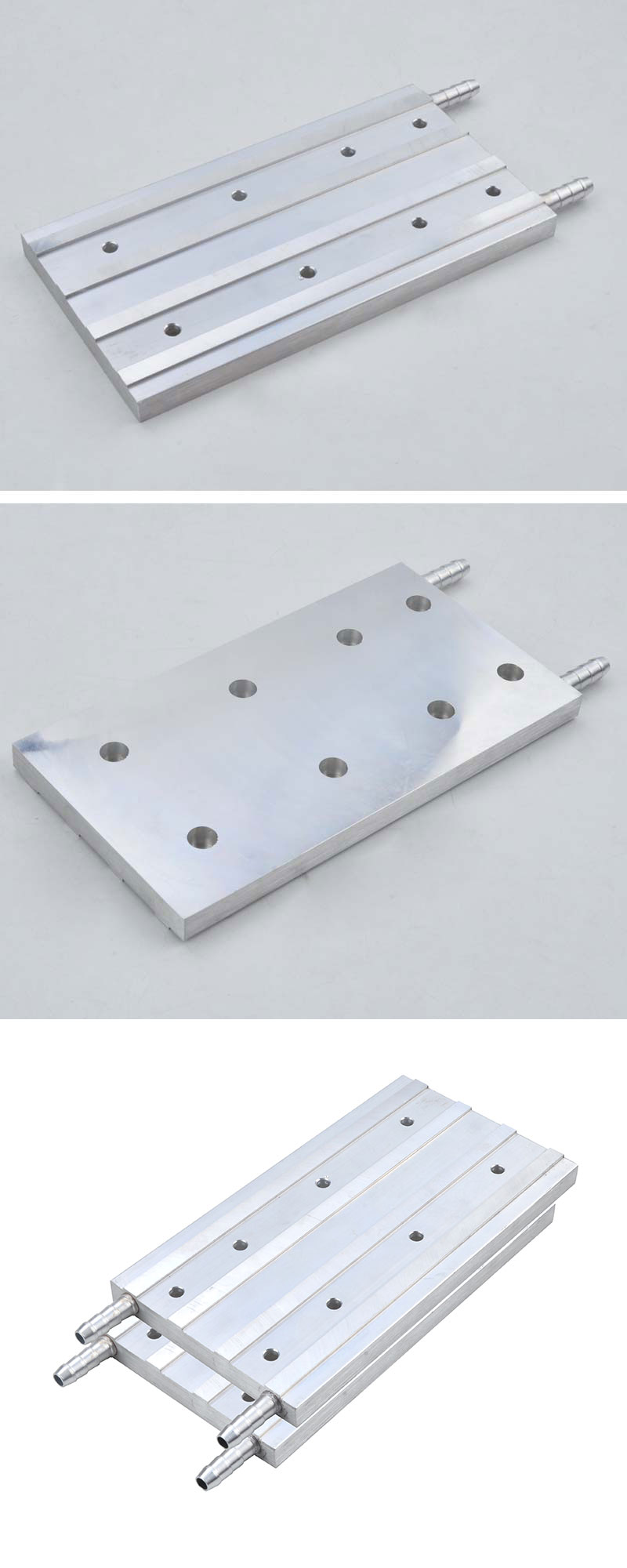

Plate parameters:
Material: Aluminum
Color: Silver

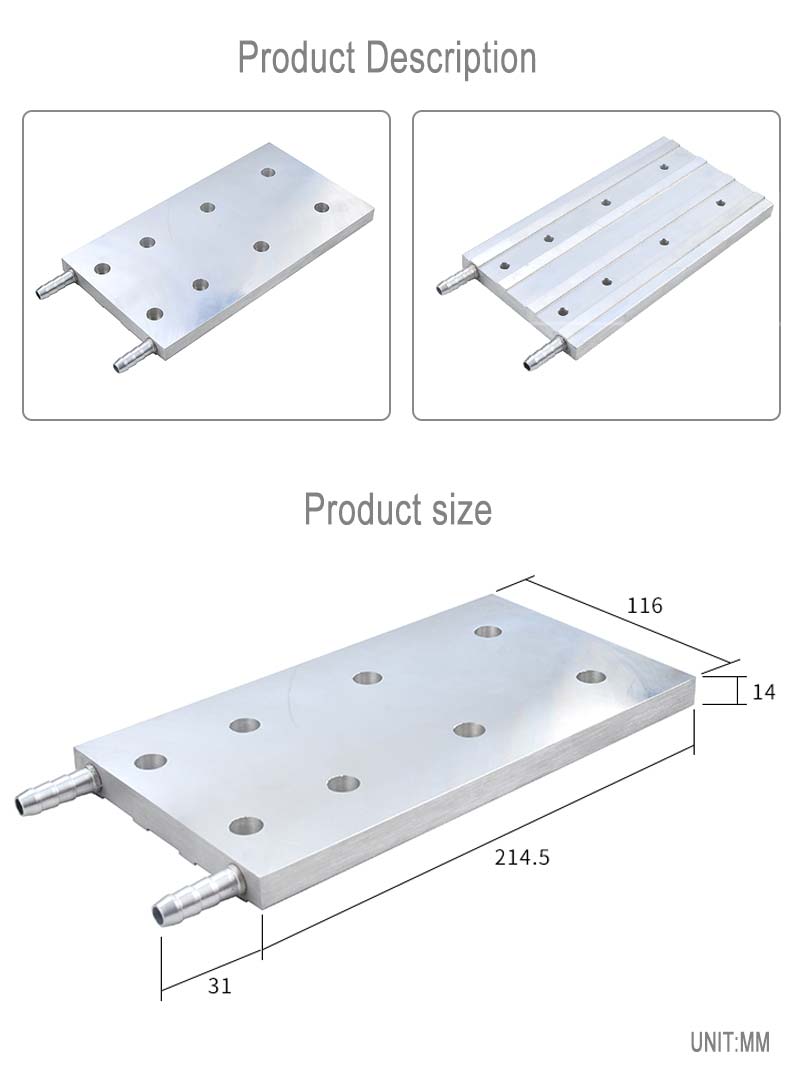

Size: 214.5*116*14mm (without water nozzle)
Outer diameter of the interface: 9.6mm, with inner diameter of 8mm-10mm liquid guide pipe

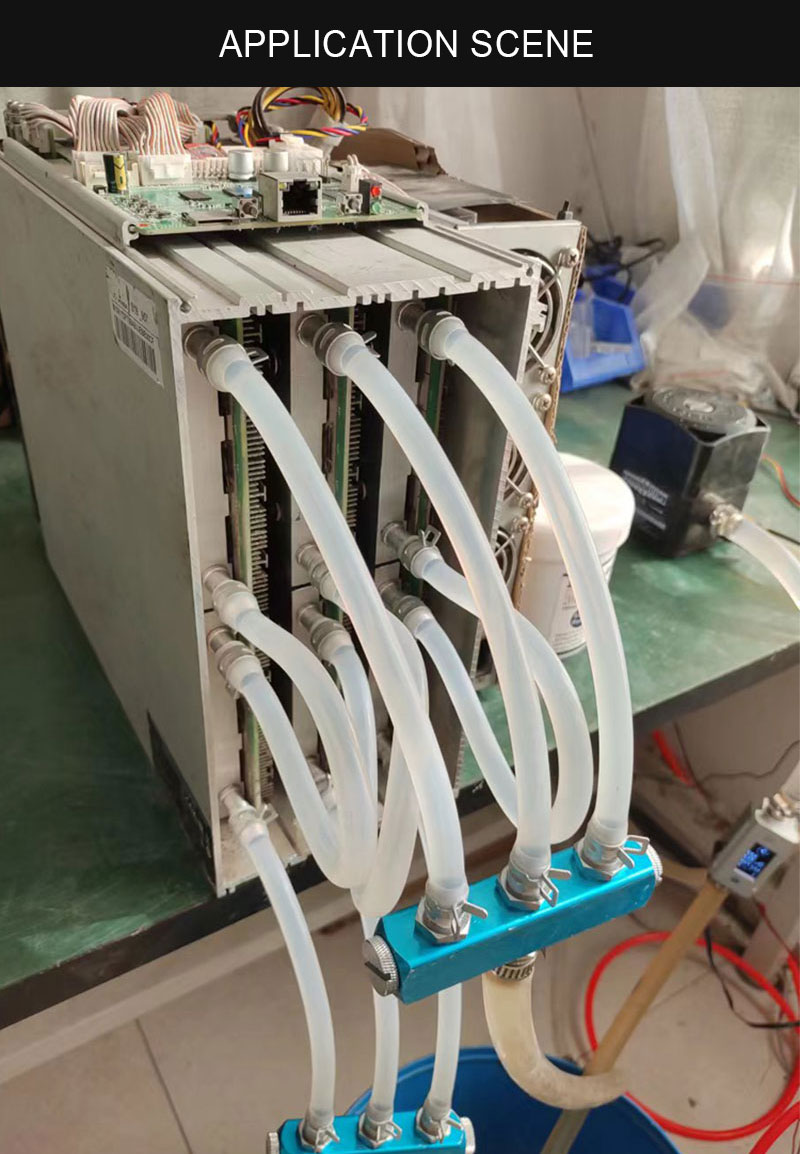

Application: Suitable for ant miner S19-95T water cooling system
Tip:

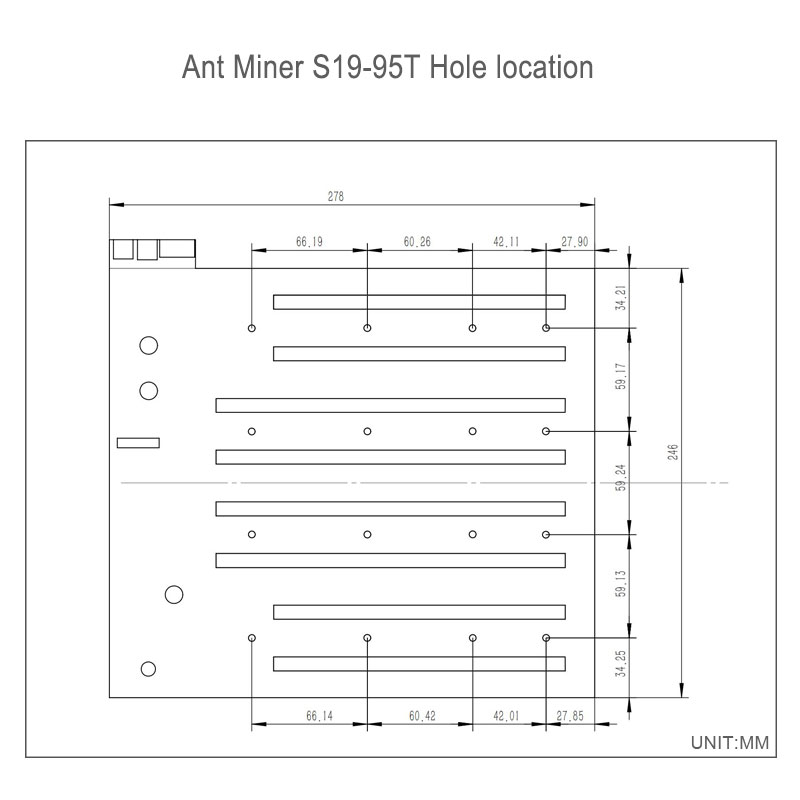

Confirm the location of mounting holes before making a selection.
If you need installation steps, please contact us.

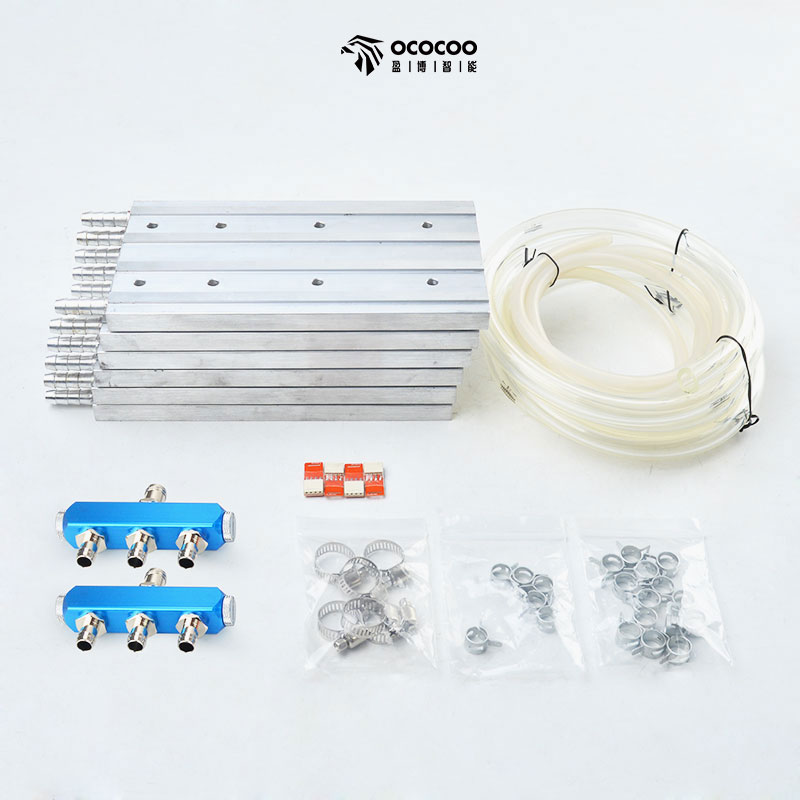

List:
Water plates * 6
Water segregator * 2
N6 hose * 2m (connecting water cooling plate and water separator outlet)
N10 Hose * 3m (connect water distributor and external radiator)
Quasi speed device *4 (inserted into the fan socket of the mining machine)
Hose clamp *6 (tighten N10 tube)
Spring clamp *22 (tighten N6 tube)
Note to buyer: Please bring your own silicone used for water cooling plate as it cannot be shipped.
