Product Parameters:

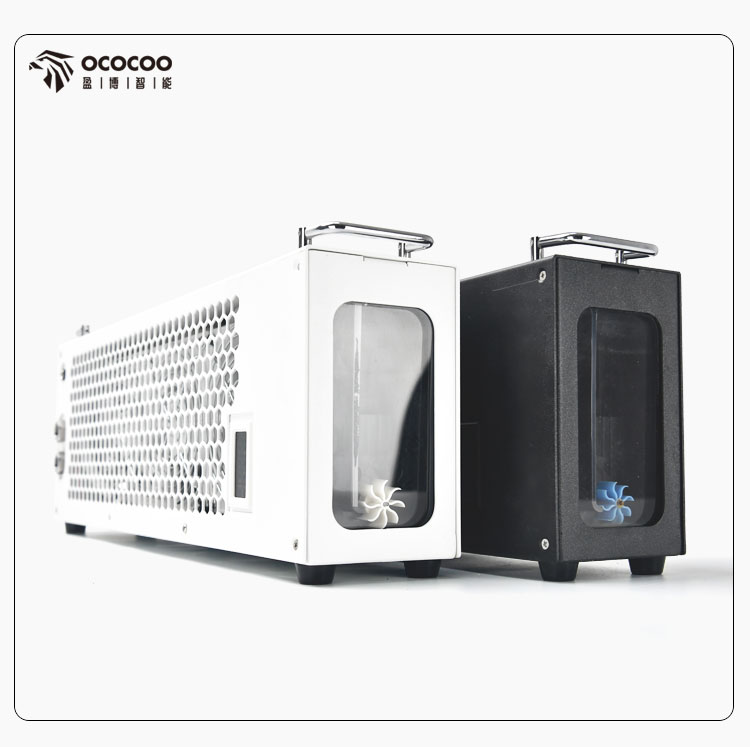

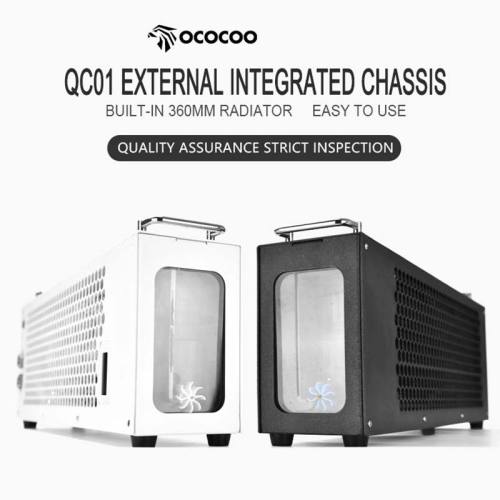

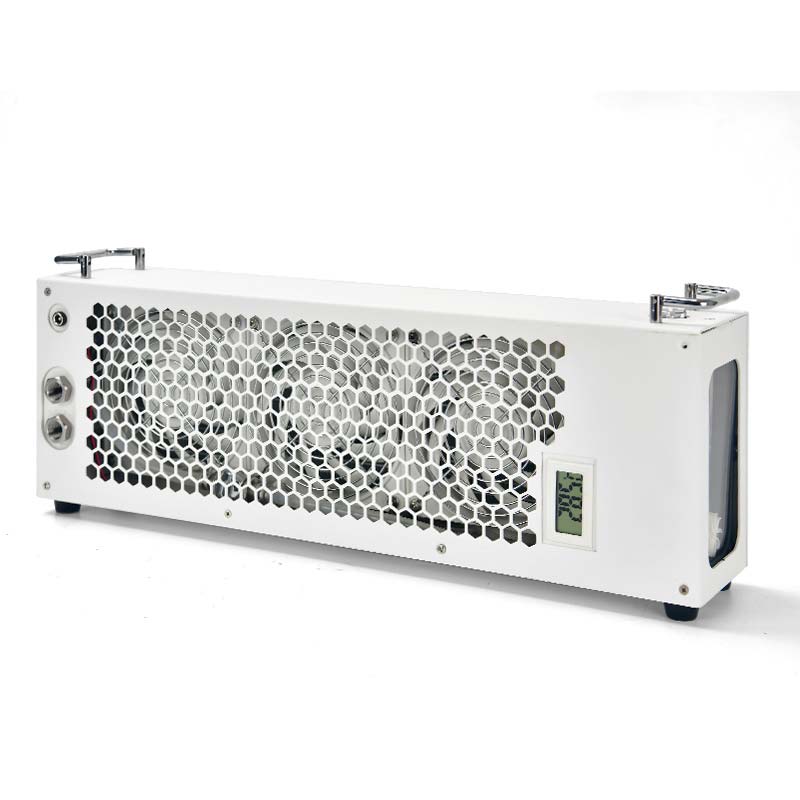

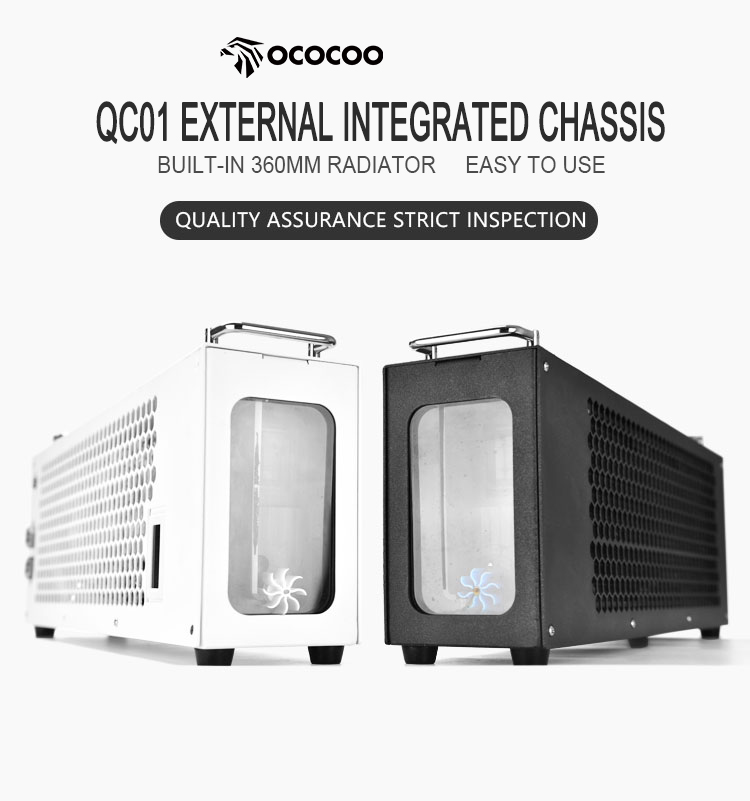

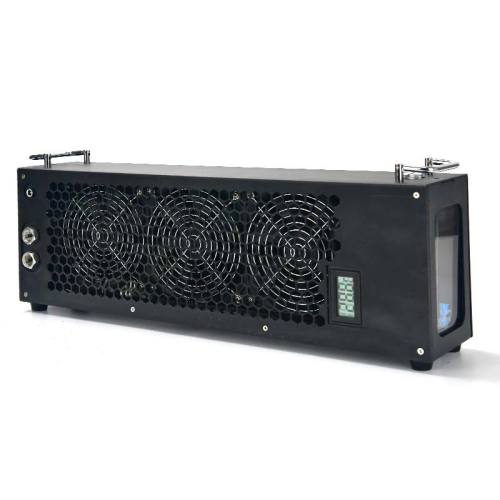

Name: 360 integrated heat dissipation chassis
Material: Aluminum/Copper
Heat Dissipation Power: 600W±5%
Pump Type: Centrifugal pump

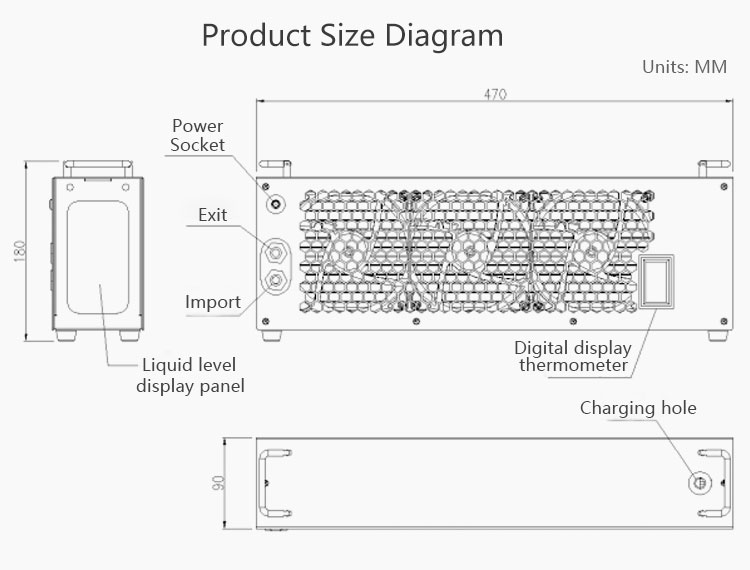

Product Size: 470mm*180mm*90mm (Length * Width * Height)

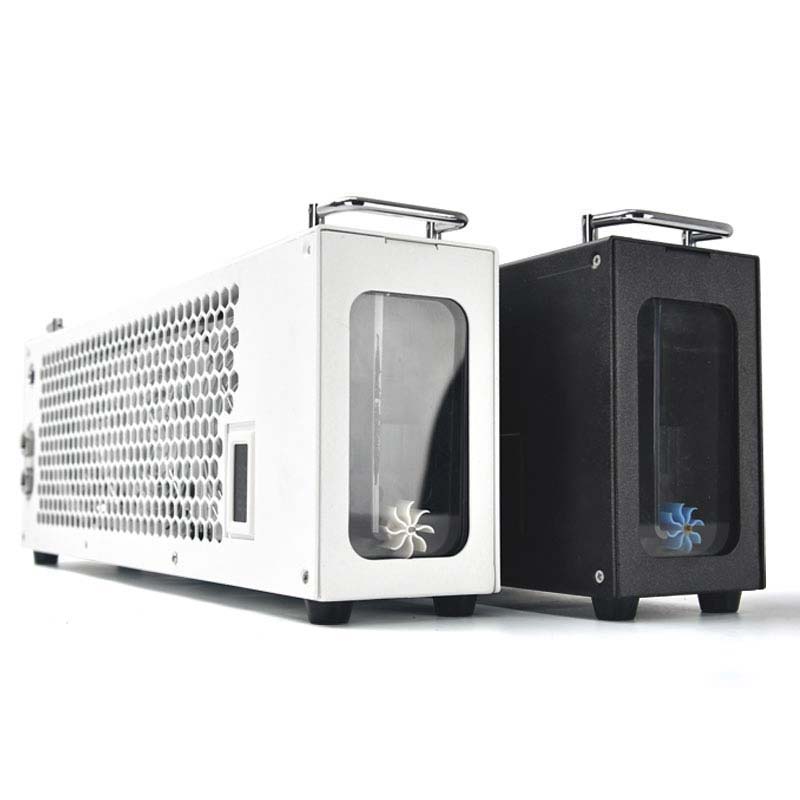

Chassis Color: Black/White

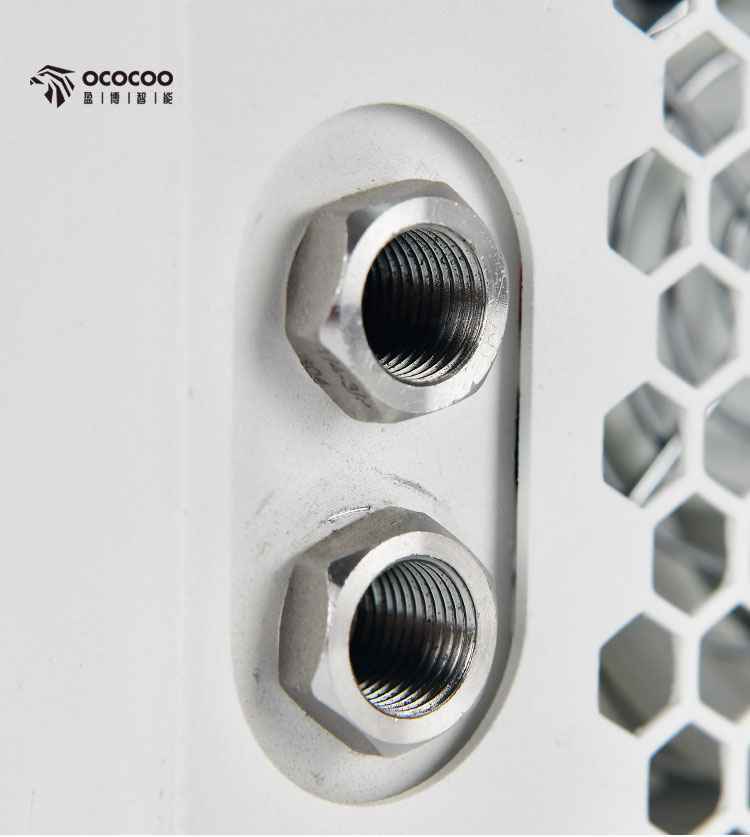

Interface Type: G1/4 thread
Heat Sink Frame: Iron
Fan Speed: 2200 RPM
Ambient Temperature: -15~60℃
Sealing: > 0.2Mpa
Design Life: 3W hours
Weight: 4200G
Tip:
In order to create a good heat dissipation system after the installation of water cooling loop, please follow the following instructions before adding water cooling liquid:
1. When filling the water-cooled liquid, it is necessary to start the pump power repeatedly for several times. This repeated switching action can facilitate the water cooling liquid into the loop, and the air out.
2.do not make the pump idle! If there is no water cooling liquid, turn off the water cooling pump power immediately to avoid water pump damage.

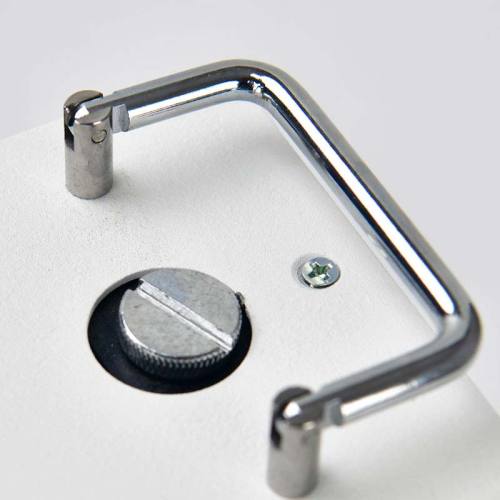

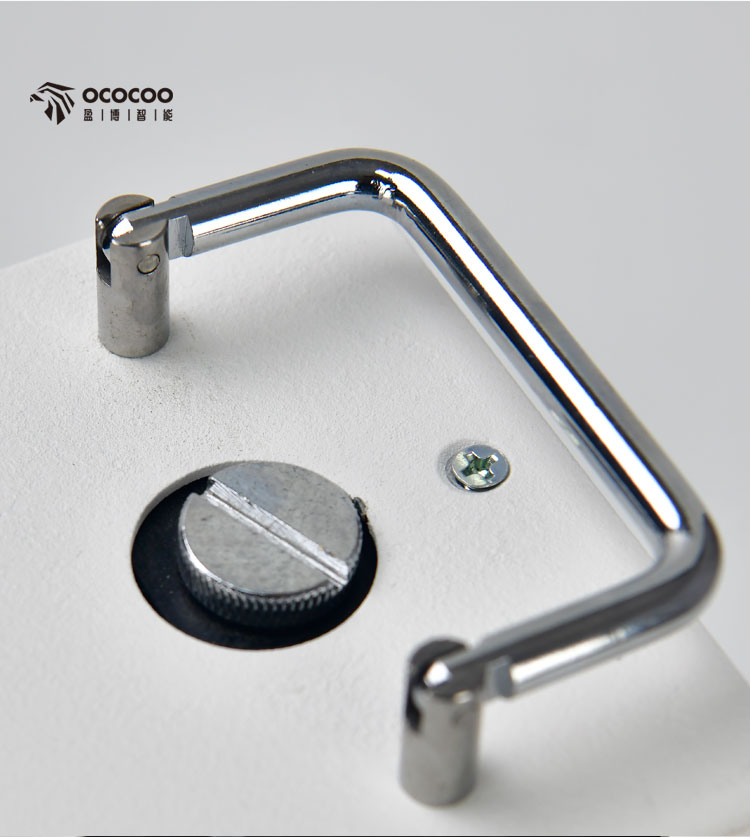

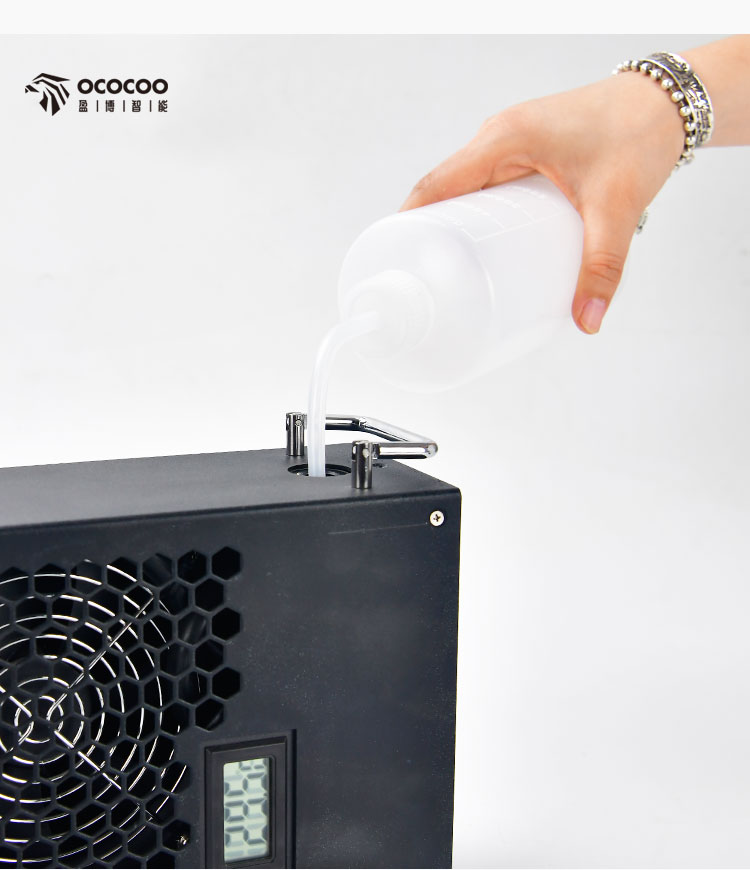

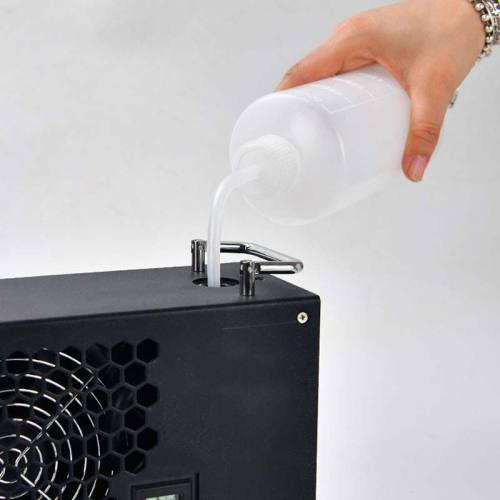

3. Injecting water cooling liquid from the top cover of the water tank can reduce the probability of air entering the pump and prolong the service life of the pump.
4. In order to exhaust smoothly, slightly inclined system can be discharged in the air.
5. When testing whether there is water leakage, please place toilet paper or towel at the joint of the pipe joint to confirm the water leakage.
6. After water injection is completed, please open the screw on the water injection port above the water tank and let the water cooling loop circulate continuously for 24 hours, which can effectively discharge the gas from the water cooling system.
