Core selling point
1. Copper Core for Fast Heat Pickup
Oxygen-free copper tubes and fins carry heat away from the coolant far faster than aluminum cores, so this 240mm radiator holds tight temperature windows in high-TDP loops. Laser modules, medical imaging units, and dense server nodes stay within operating limits even under continuous full load.
2. Twelve-Tube Core in a Compact 240mm Body
Twelve flat copper tubes paired with densely corrugated fins pack a large heat-exchange surface into a short 240mm frame, so builders get more cooling capacity per millimeter of cabinet space. Airflow stays even across both fan stations, keeping heat rejection predictable at low fan speeds.
3. Top-Mounted Ports for Simple Bleeding

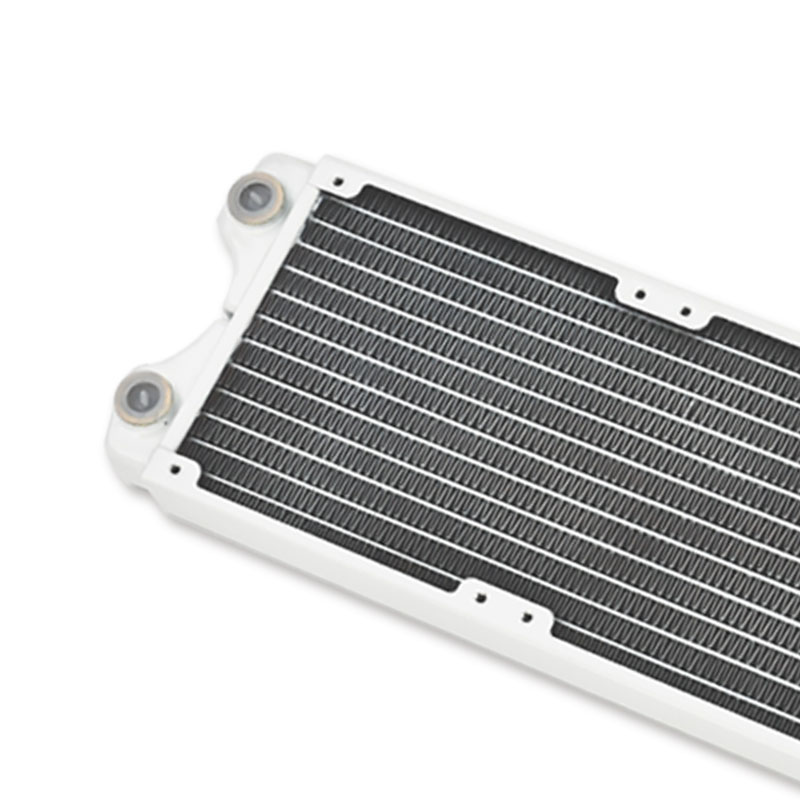

Both ports sit on the top tank, the highest point of the loop, so trapped air escapes during filling instead of stalling coolant flow. Standard threaded ports accept common fittings and quick couplings, letting service teams prime the system in minutes without extra bleed valves.
4. White Housing for Clean Equipment Matching

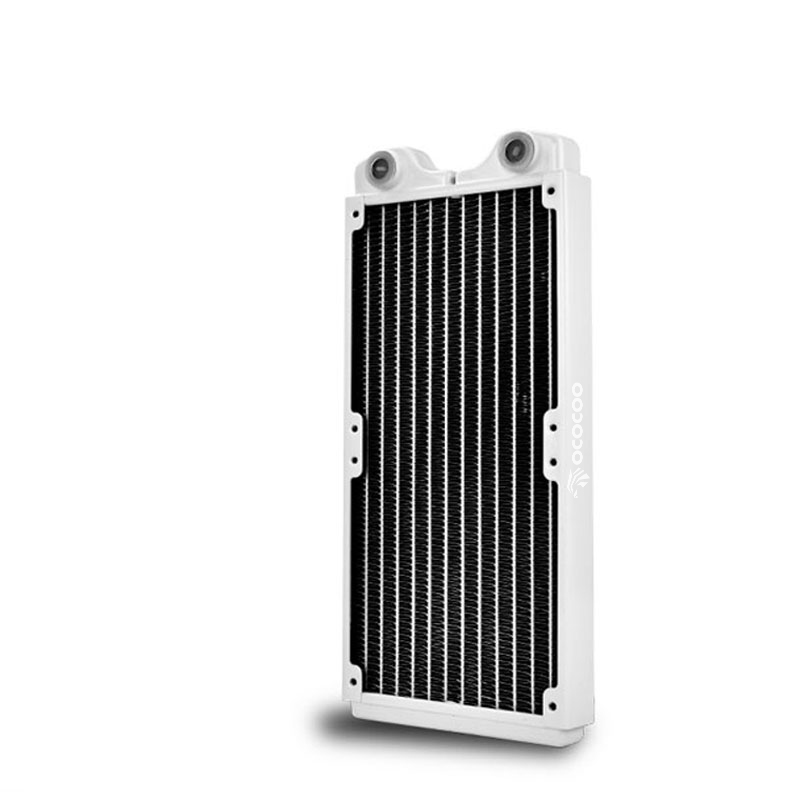

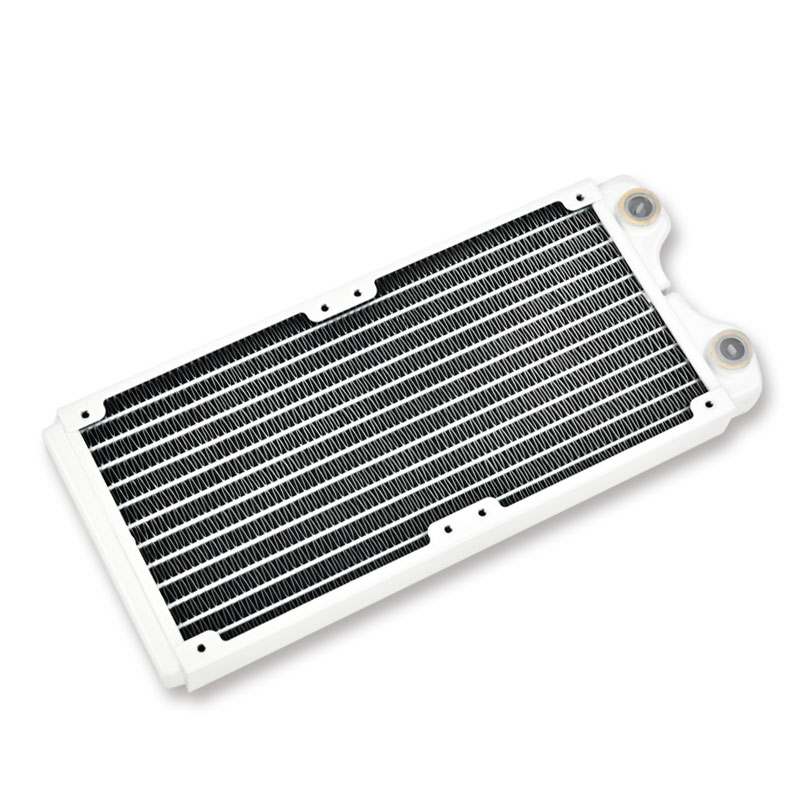

The matte white frame suits light-colored chassis, laboratory benches, and cleanroom equipment where black hardware stands out. Custom housing colors and brand marking are available for OEM programs, so finished machines carry a consistent visual identity.
5. OCOCOO Build Quality and Repeat-Order Consistency
Produced under the OCOCOO brand, every radiator is 100% air-pressure leak tested and brazed as one solid copper assembly. Uniform fin pitch and port geometry arrive consistent unit after unit, so OEMs and distributors can plan production without rechecking incoming hardware.
6. Applications Across Demanding Cooling Loops
Serving laser cutting equipment, medical diagnostic devices, AI computing nodes, beauty instruments, semiconductor tools, new energy charging stations, and energy storage cabinets, this copper radiator brings stable coolant temperatures to equipment that cannot afford thermal drift.
Product parameters:
Model: PT240
Material: Pure copper fin
Interface type: G1/4 thread

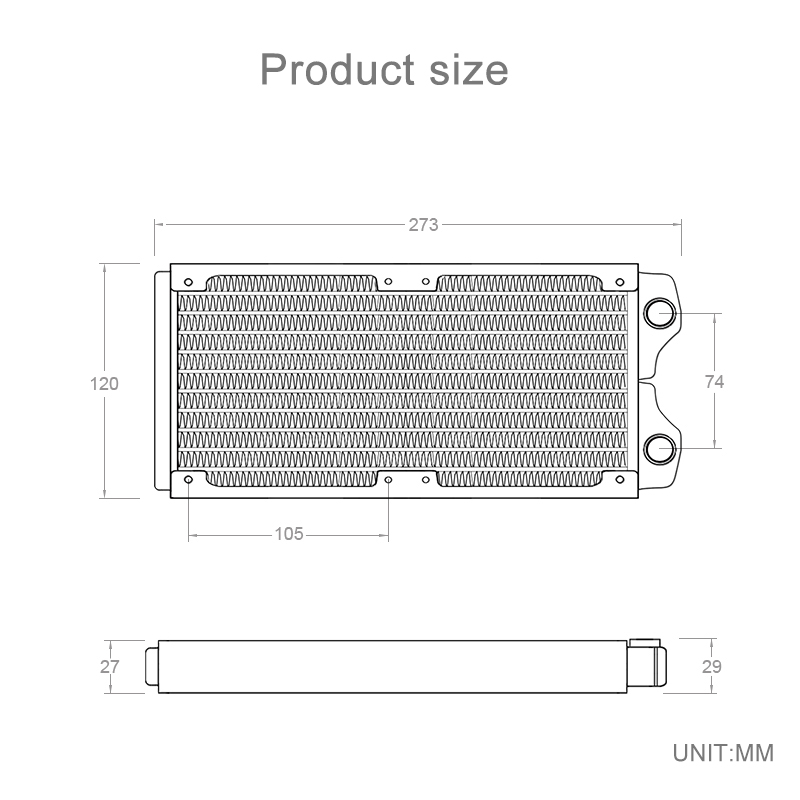

Dimensions: 273mmx120mmx27mm (L xW xH)
Waterways: 12
Scale density: 18FPI
Density: 0.2 Mpa
Color: White
Inlet and Outlet size: 11.8mmx18mm (inner diameter * outer diameter)
Surface treatment: Paint baking process
Fan size: 120mmx120mm x2
Weight: About 0.60kg (including packaging)
Accessories: 6-32-28 Fan mounting screw x 8,6-32-8 Heat sink bar fixing screw x 8
Application: For PC water cooling system or other various industrial equipment and electronic chip cooling
