Product parameter：

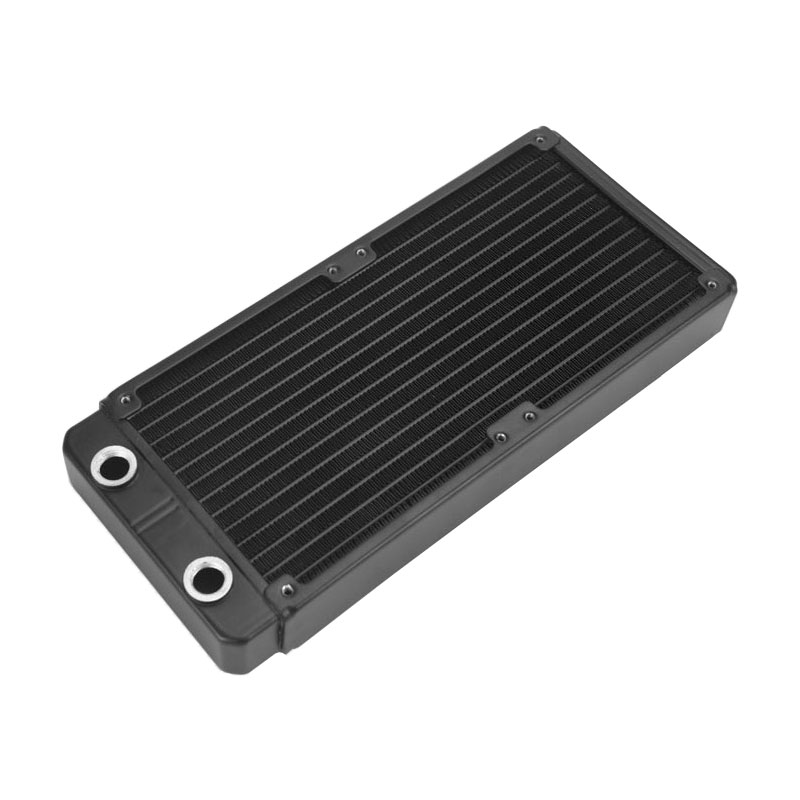

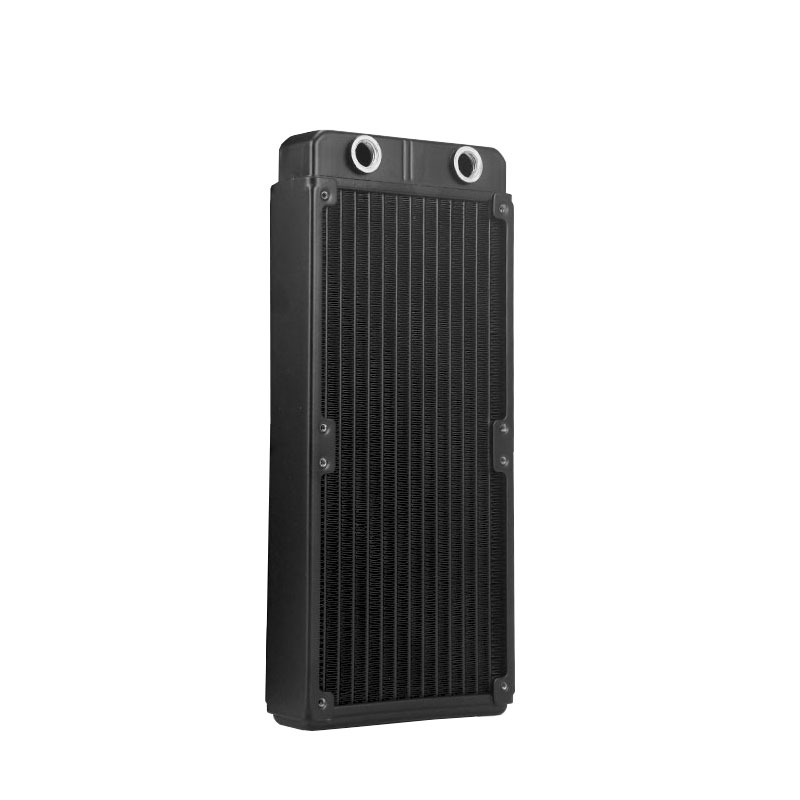

Model:CA240/360
Material:Pure aluminum

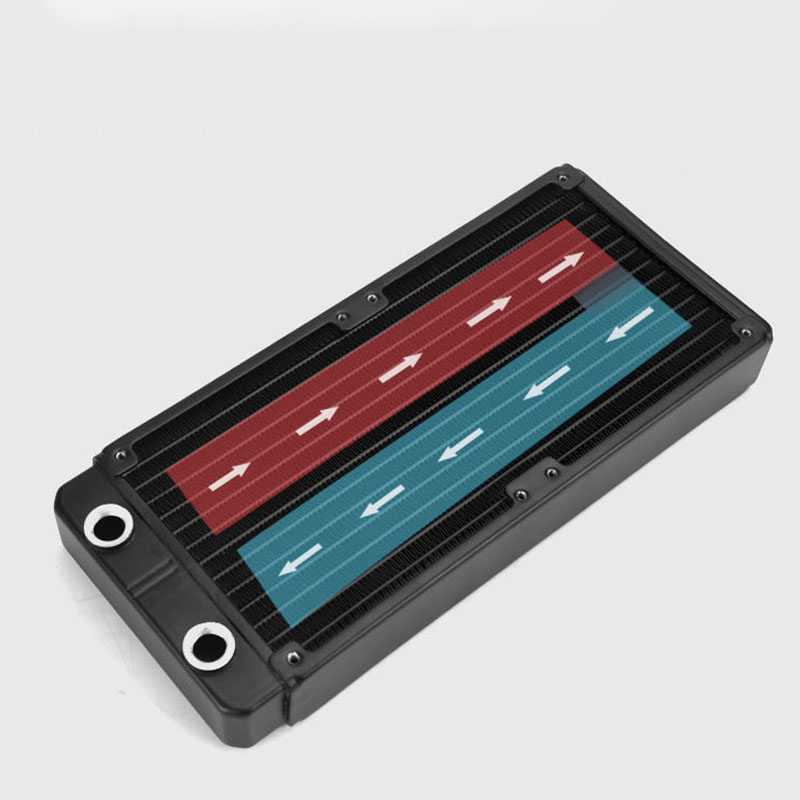

Number of waterways:12
Fan size:120*120mm
Screw specification:6-32-31，6-32-6
Net weight:About 475g/678g

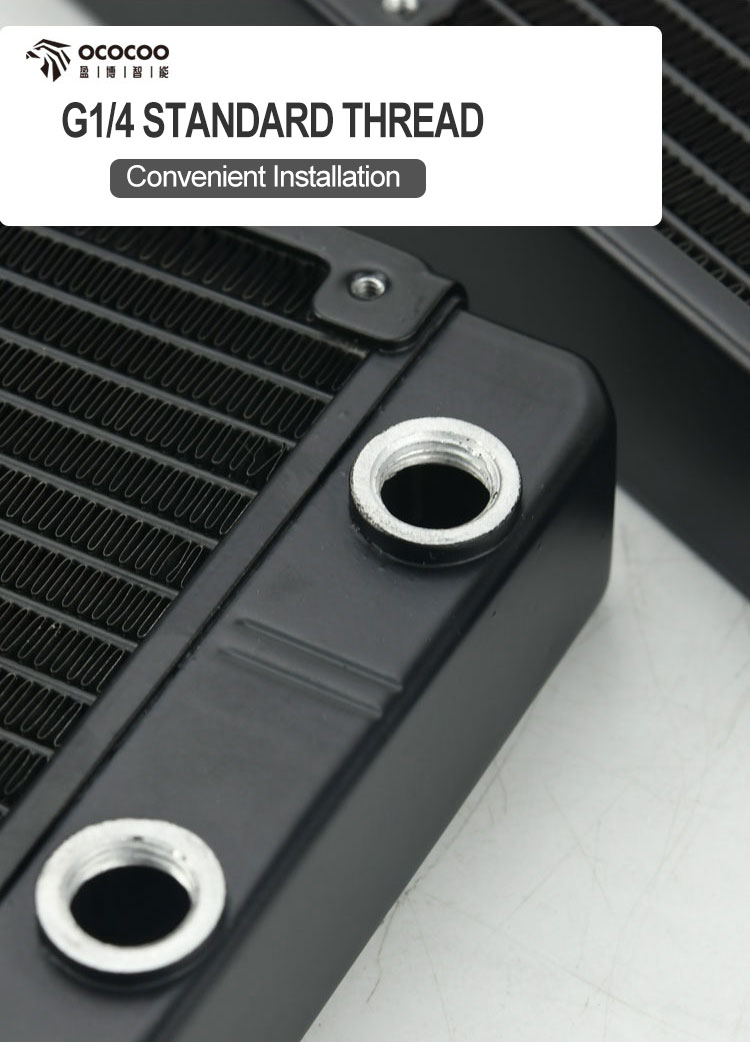

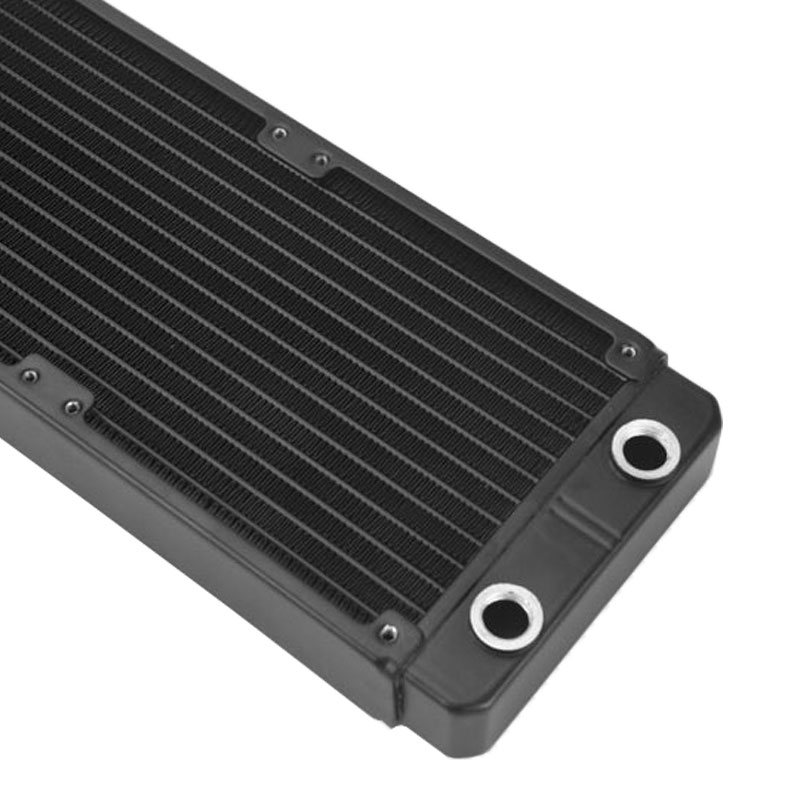

Connector：G1/4 threads

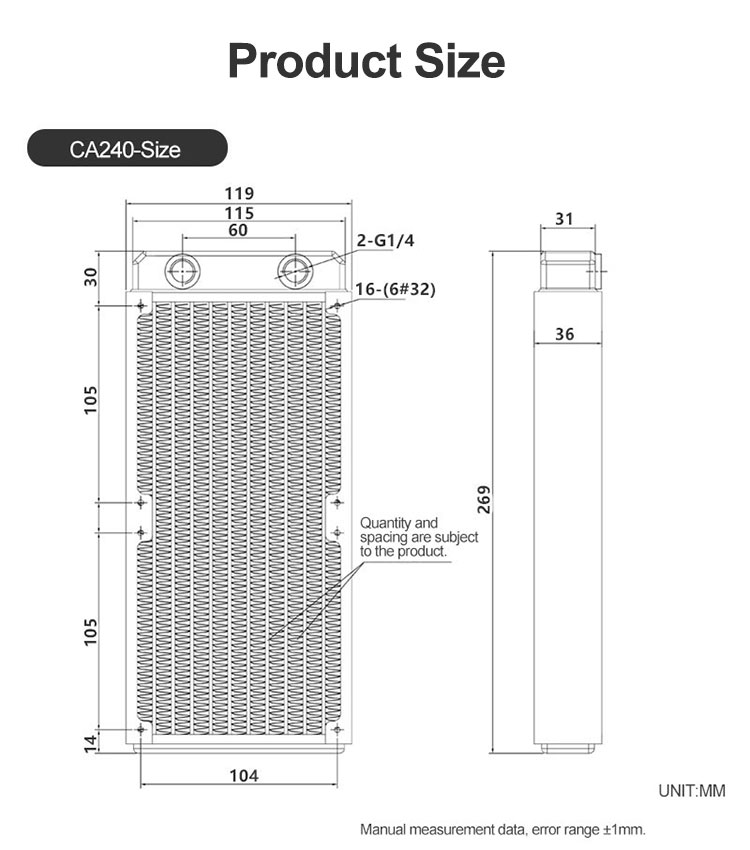

Size: 240:269*119*36mm (L*W*H)
360:390*119*36mm (L*W*H)
Color: Black
Tightness test:0.2Mpa
Function:For PC water cooling system, industrial variable frequency drive, laser head cooling, industrial control cabinet and other cooling
Features:
High-temperature solder molding, 100% factory airtight test.
After wind tunnel and thermal imaging test, the air permeability is strong and the heat dissipation is uniform, which meets the requirements of professional level players for water cooling.

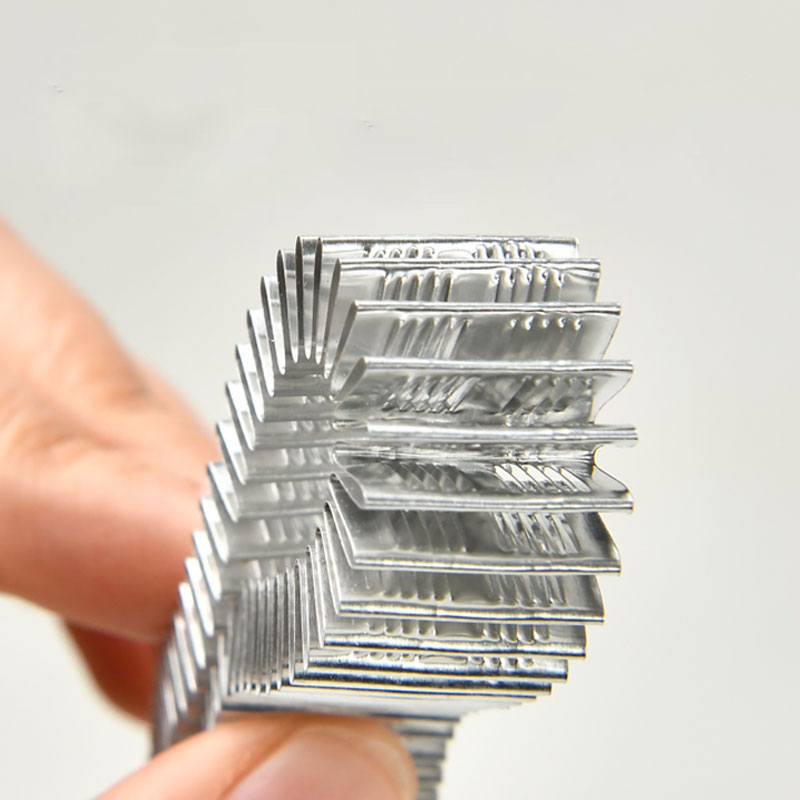

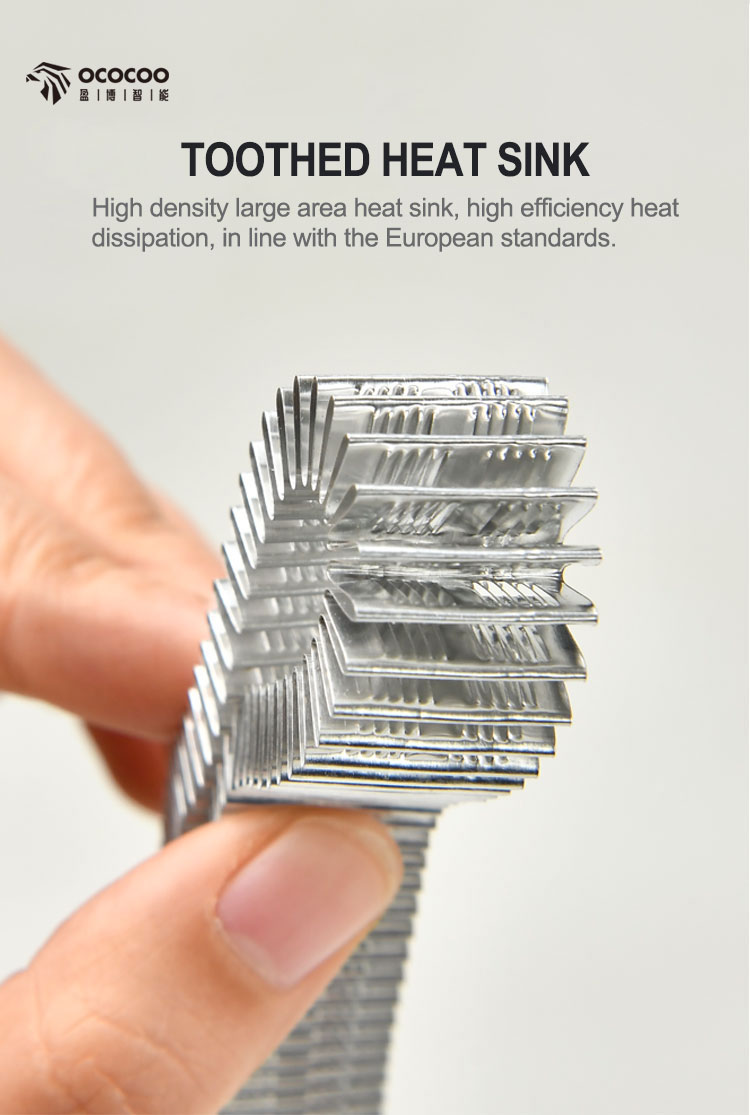

12 single tubes design, high density fins, high specification materials and structural design, efficient and practical,
The surface is treated with baking varnish and the texture is beautiful.
Only 36mm thick, suitable for most compact DIY mounting positions, lightweight design for easy installation
Factory direct sales, price concessions, quality assurance.
Remarks:

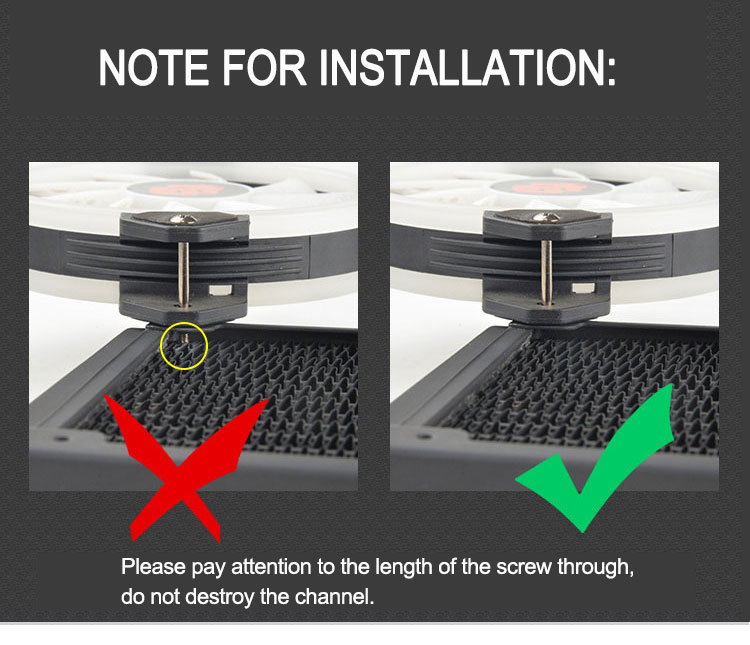

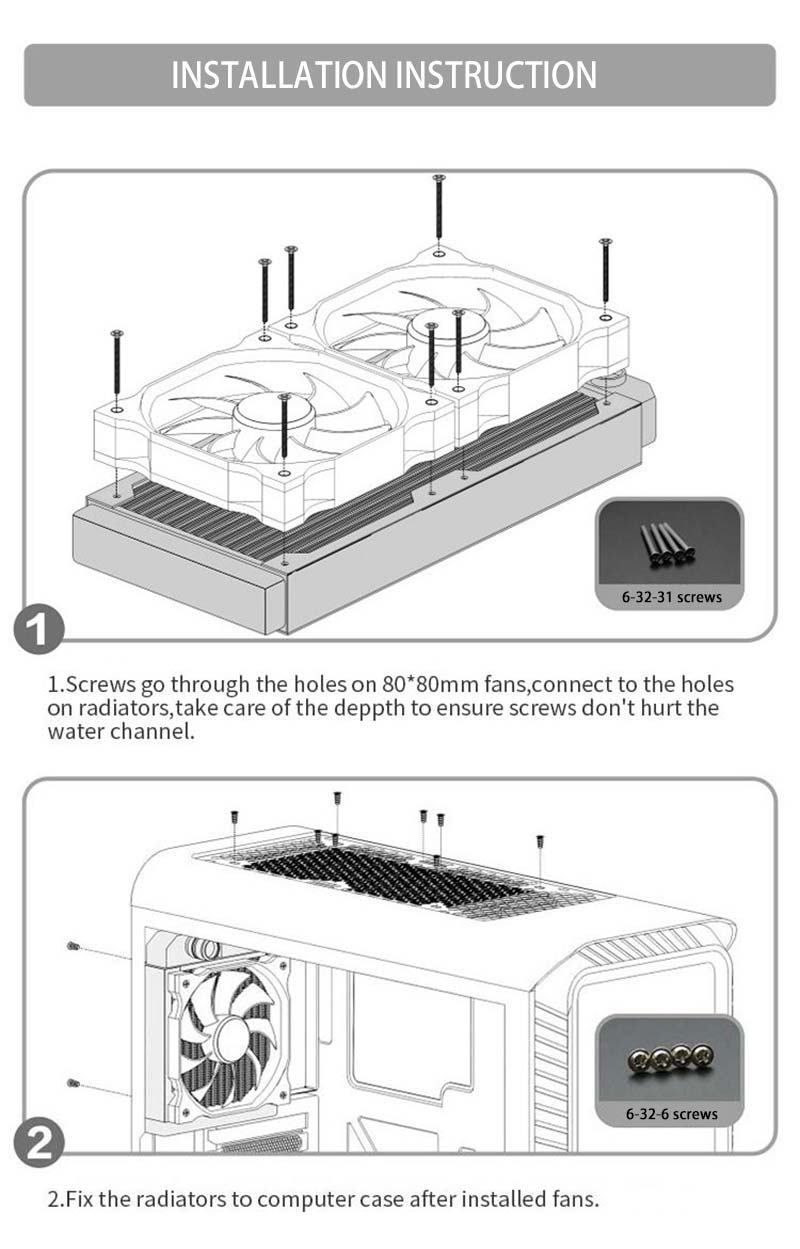

The water pipe is designed under the screw hole.
Using long screws may Pierce the channel.
Please be careful when installing.
This misuse is not covered by the warranty!
