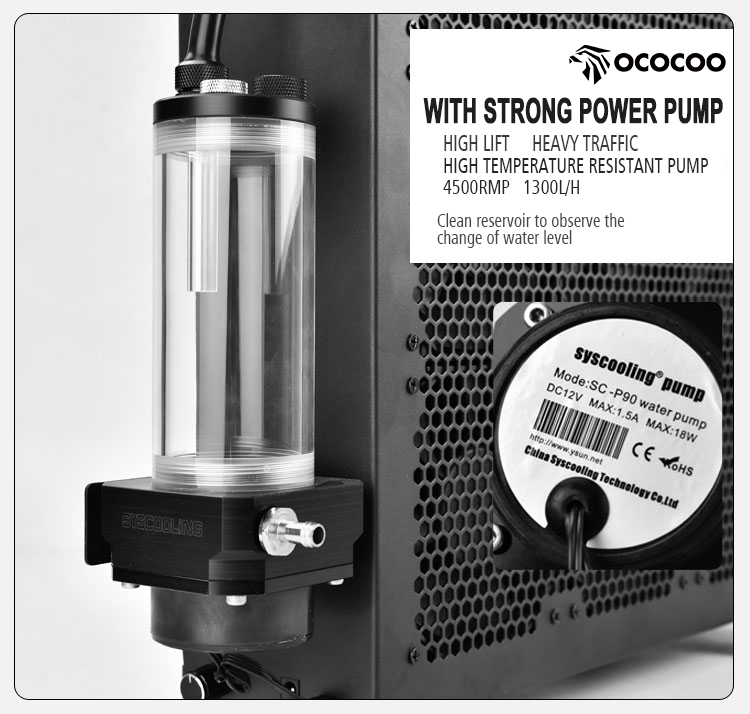

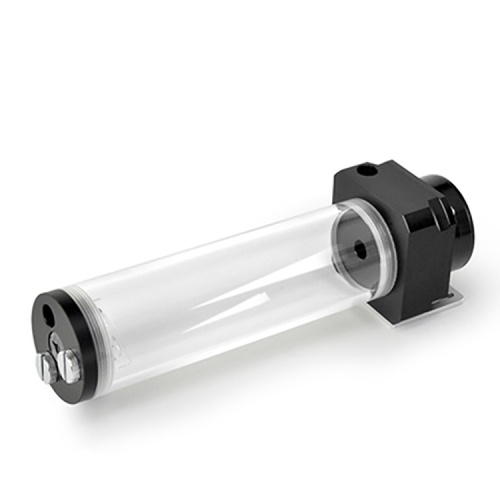

Pump Parameters:
Maximum Flow: 1300L/H
Maximum Head: 5M
Operating Current: 1.8A
Speed Measurement Interface: Small 4P interface
Working Noise: ≤25DB

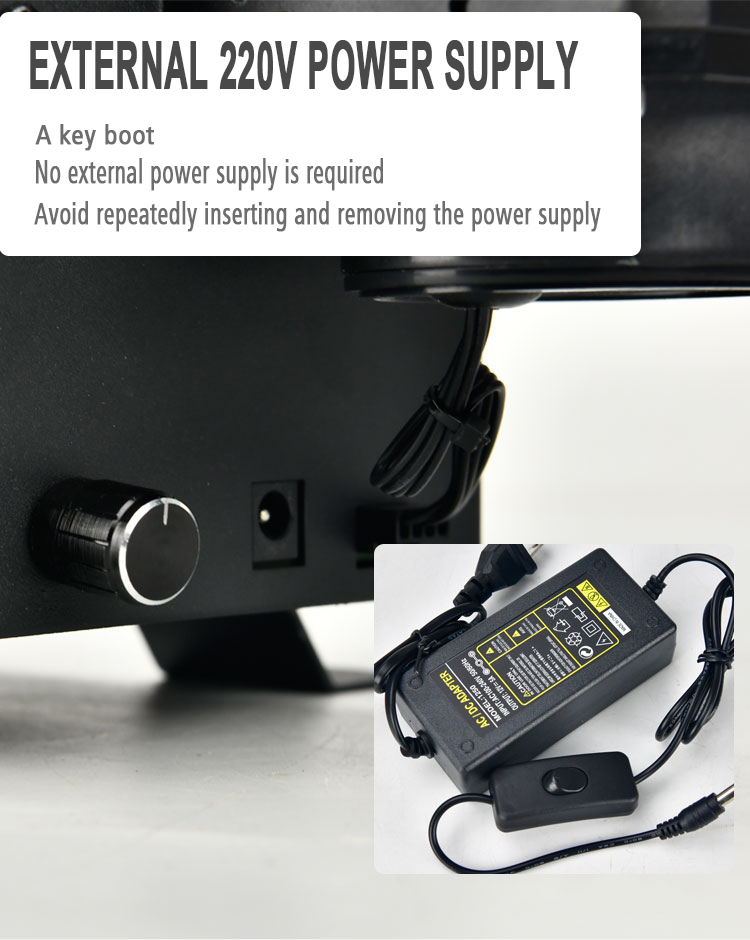

Input Voltage: DC12V
Operating Temperature: -10~60℃
Speed Control type: Supports PWM speed control
Circuit Design: Three-phase brushless DC circuit, MCU control


Product Parameters:

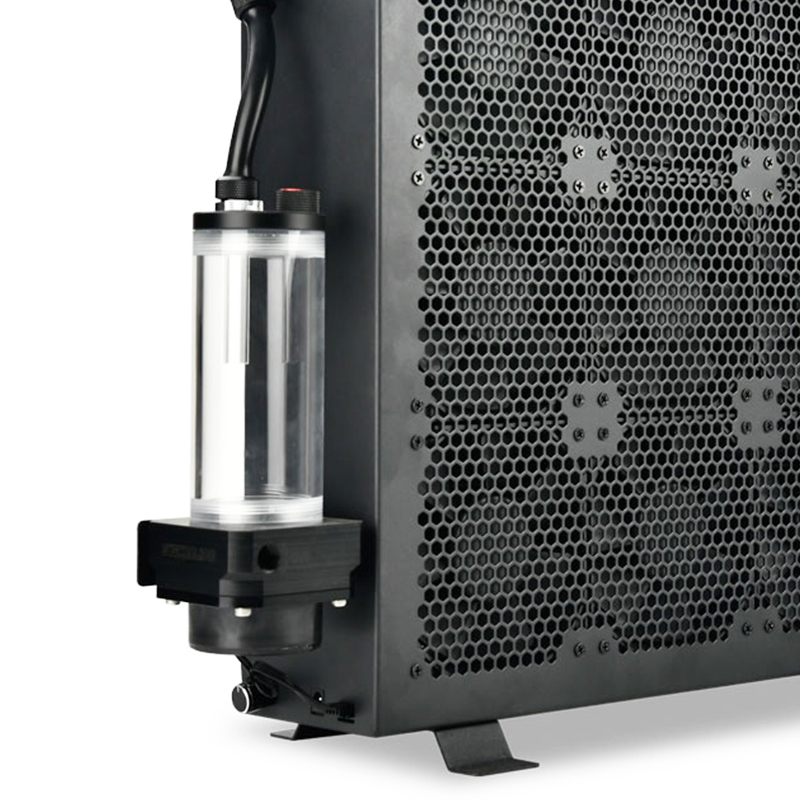

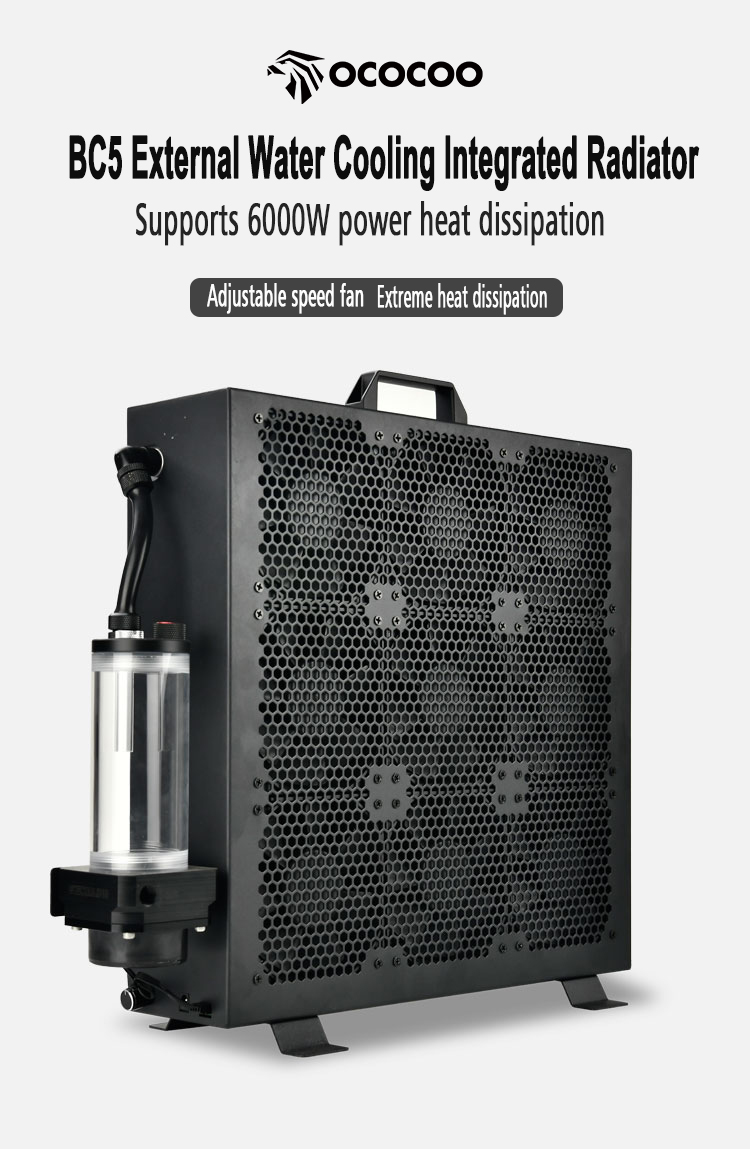

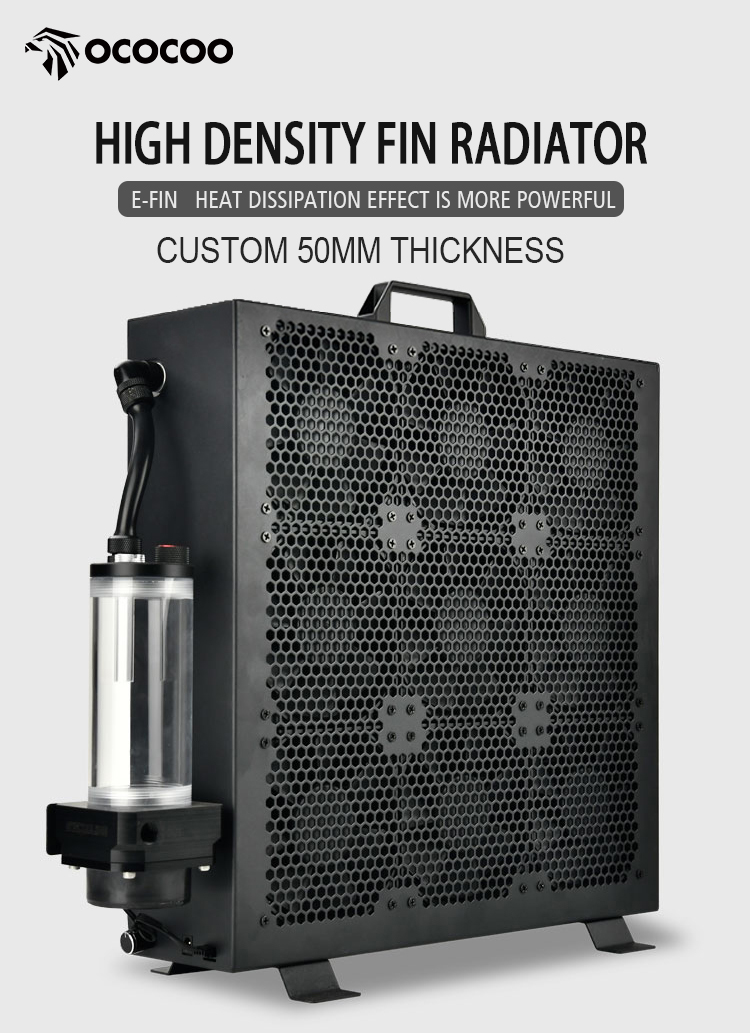

Name: BC9 external water cooled integrated radiator
Maximum Power: 6000W
Pump Parameters: 4500RMP 1300L/H

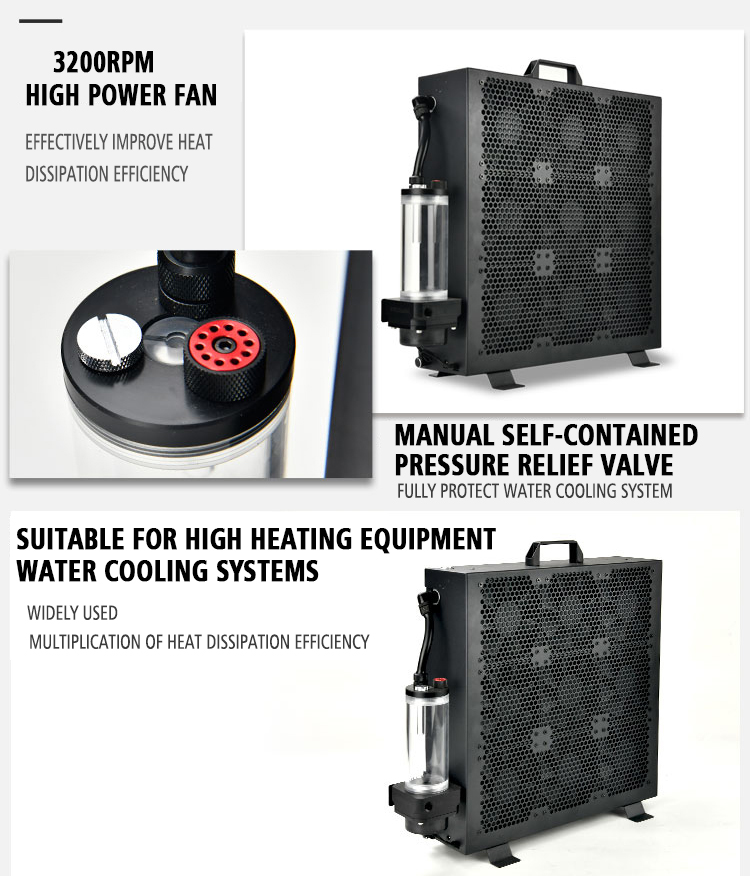

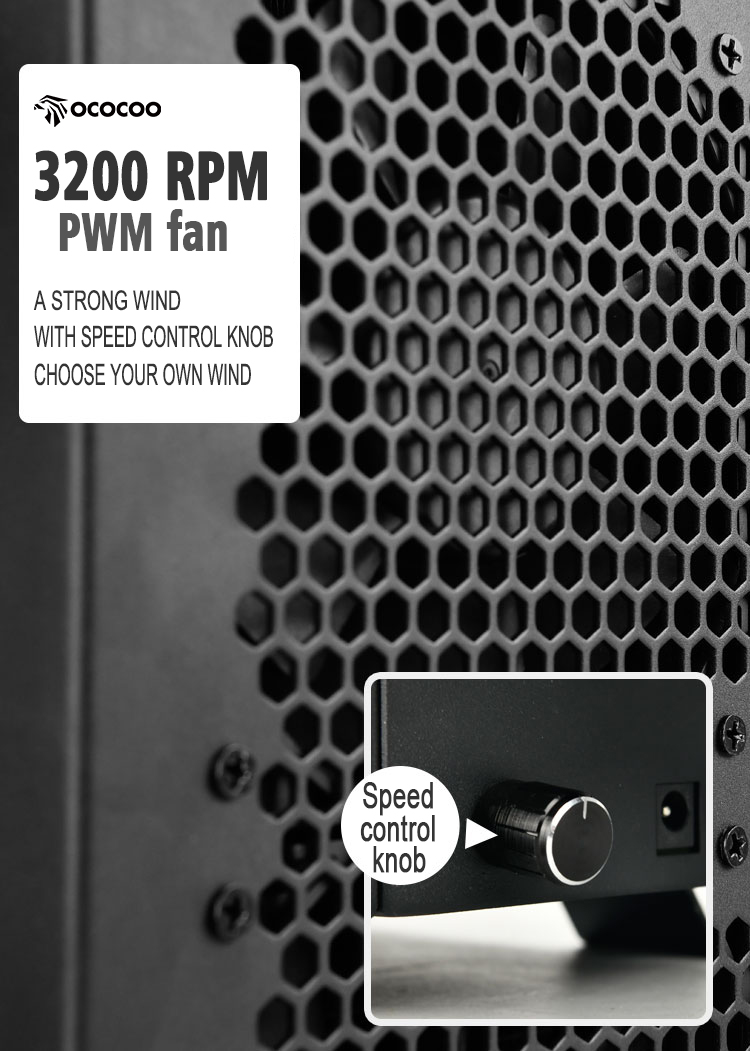

Fan Speed: 3200 RPM

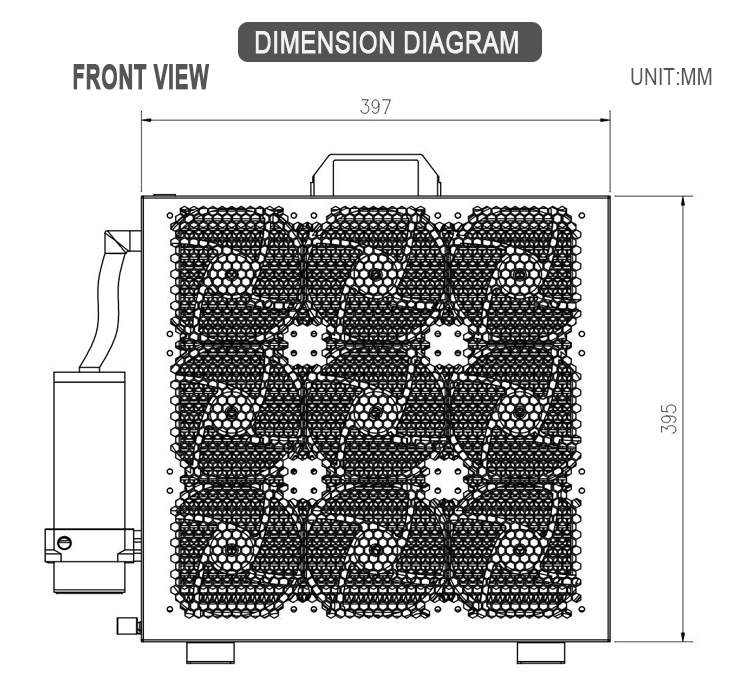

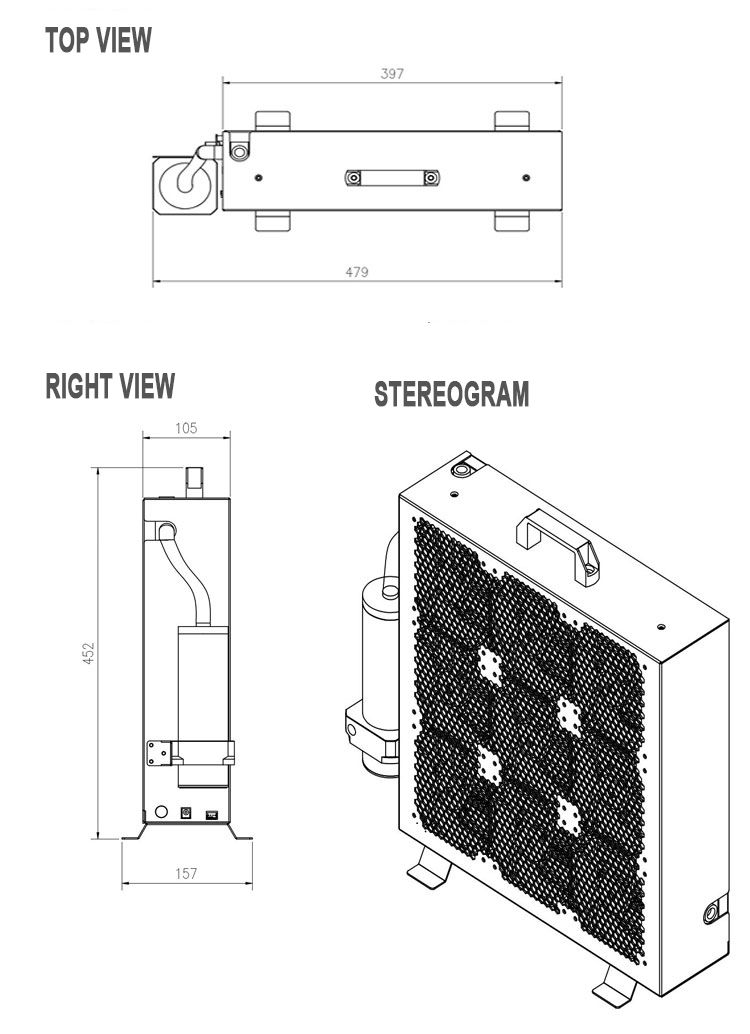

Radiator size: 397mm*157mm*105mm (Length * Base width * Height)
Weight: About 16.50KG (including packaging)
Radiator Material: Aluminum
Color: Black
Interface type: G1/4 thread







Tips:
After installing the water cooling circuit, in order to create a good heat dissipation system, please follow the following precautions before adding cold water:
1. When filling the water-cooling liquid, it is necessary to repeatedly start the power supply of the water pump for several times. This repeated switch action can help to inject the water-cooling liquid into the circuit and discharge the air.
2. Do not idle the water pump! If there is no cold liquid, please turn off the power supply of the water cooling pump immediately to avoid damage to the water pump.
3. Injecting water-cooling liquid into the upper cover of the water tank can reduce the probability of air entering the water pump and prolong the service life of the water pump.
4. For smooth exhaust, slightly tilt the system to facilitate the exhaust.
5. When testing whether there is water leakage, please place toilet paper or towel at the joint of pipe joint to confirm the water leakage.

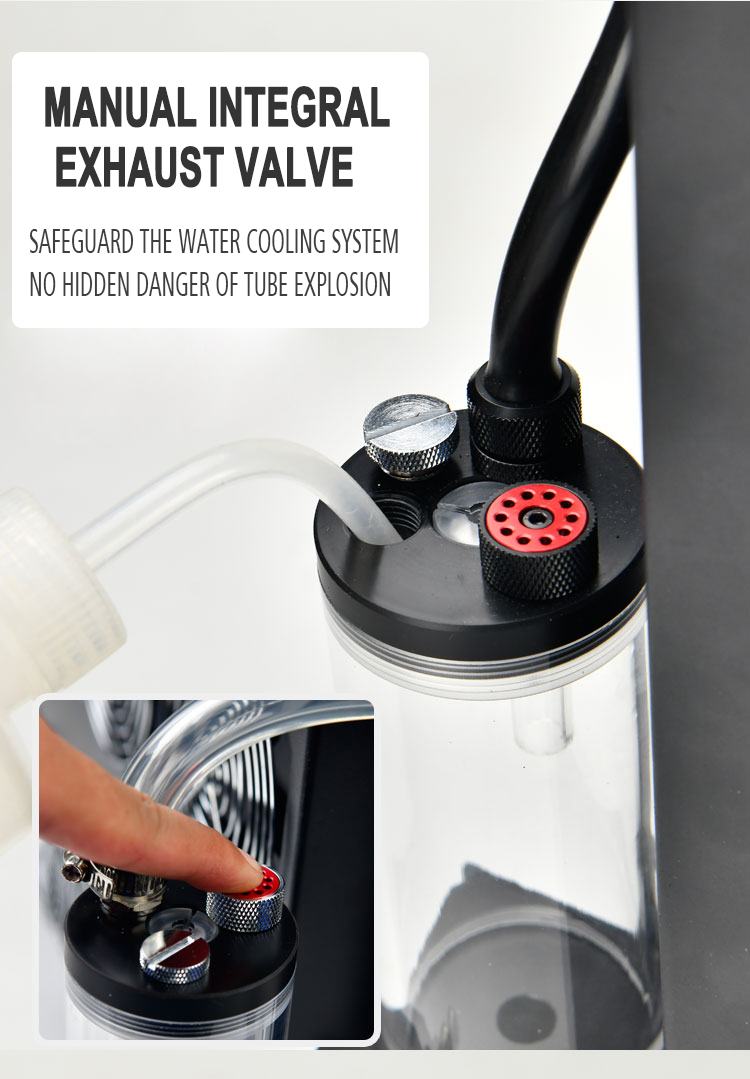

6. After completing the water injection, please open the screw at the water injection port above the water tank and let the water cooling circuit circulate continuously for 24 hours, which can effectively discharge the gas out of the water cooling system.
