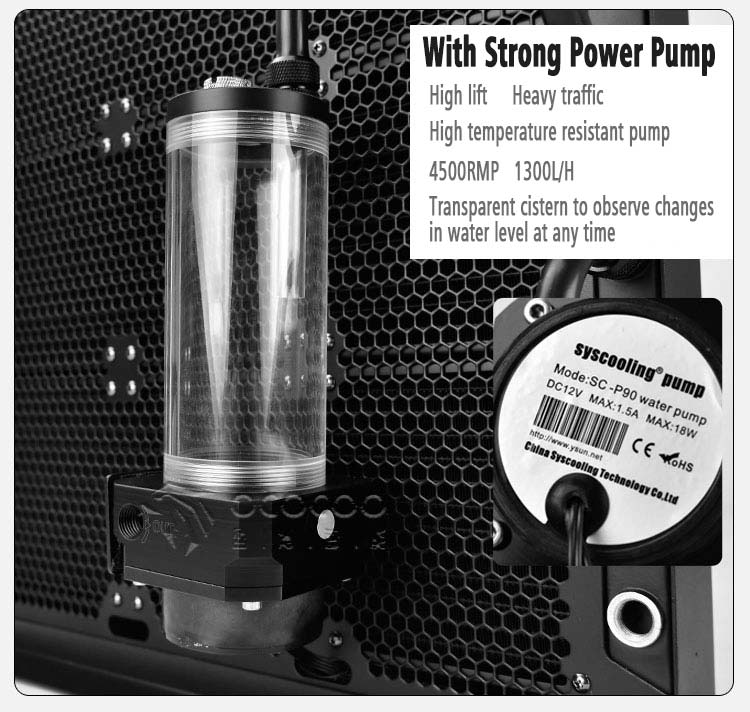

Pump Parameters:
Maximum Flow: 1300L/H
Maximum Head: 5M
Operating Current: 1.8A
Speed Measurement Interface: Small 4P interface
Working Noise: ≤25DB
Input Voltage: DC12V
Operating Temperature: -10~60℃
Speed Control type: Supports PWM speed control
Circuit Design: Three-phase brushless DC circuit, MCU control
Product Description:

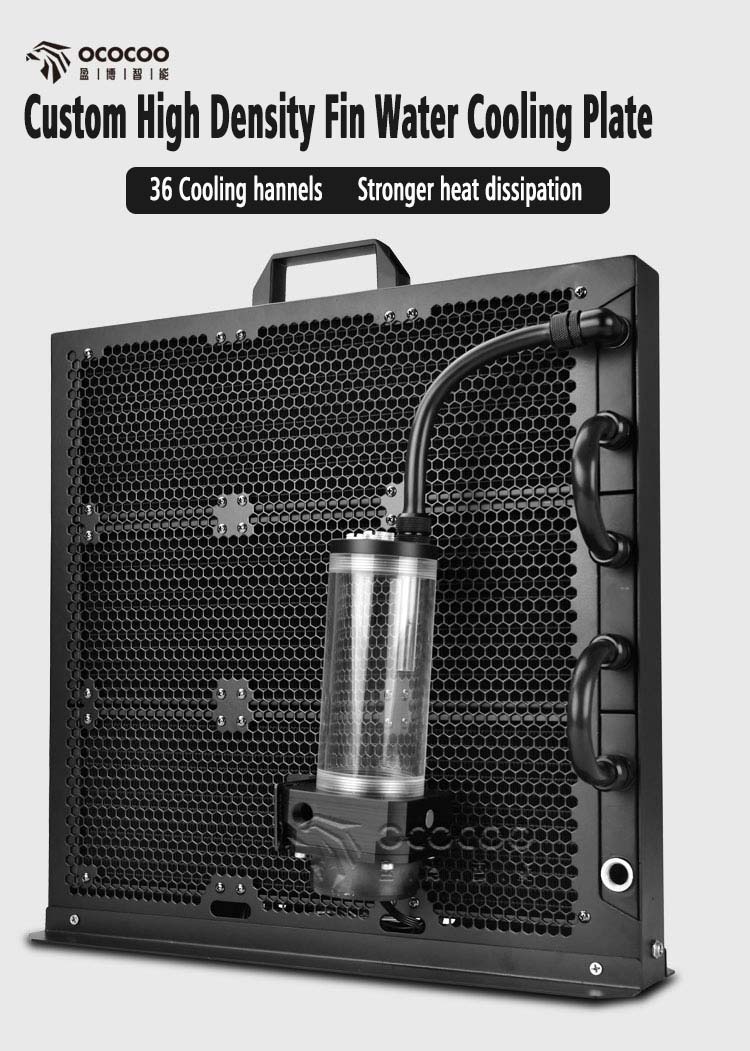

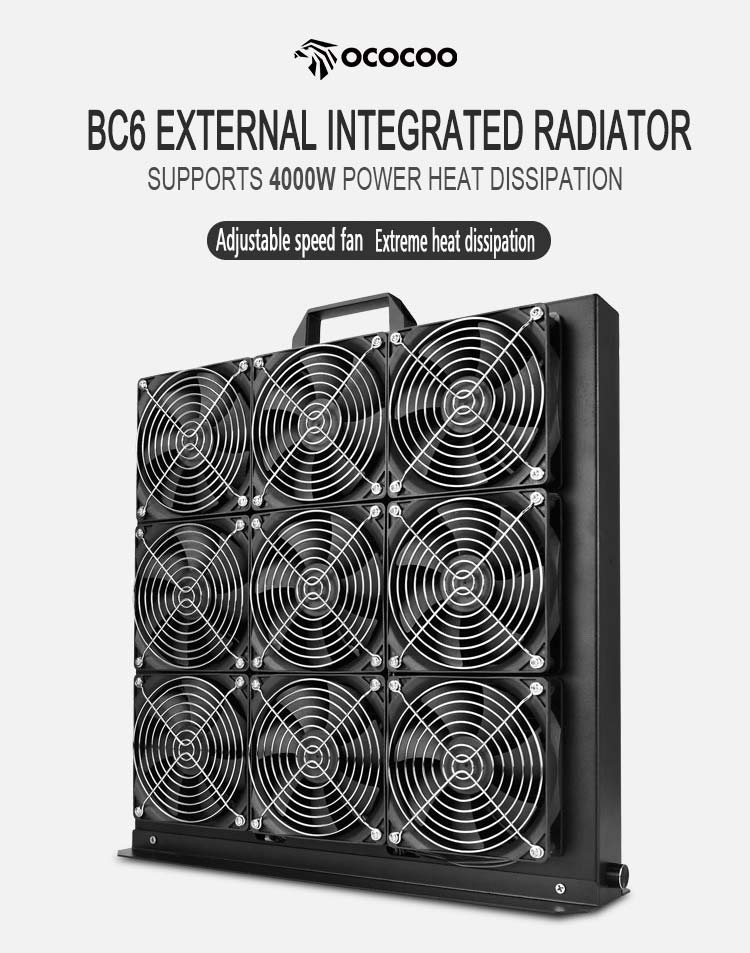

Name:BC6 external water cooling integrated radiator

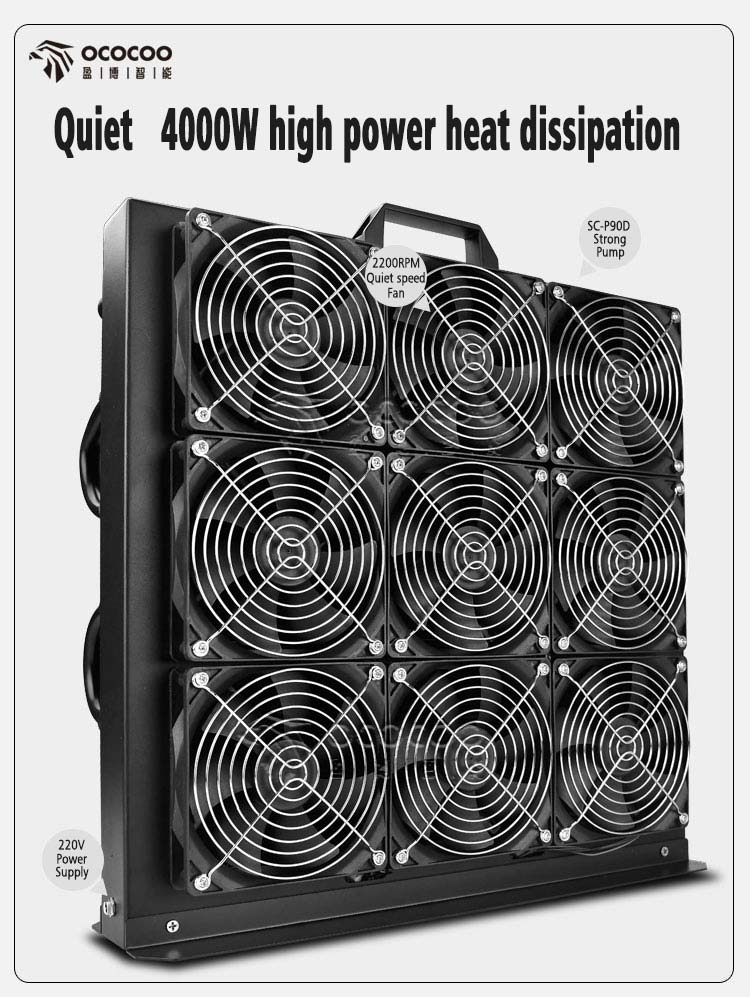

Maximum Power: 4000W
Pump Parameters: 4500RMP,1300L/H

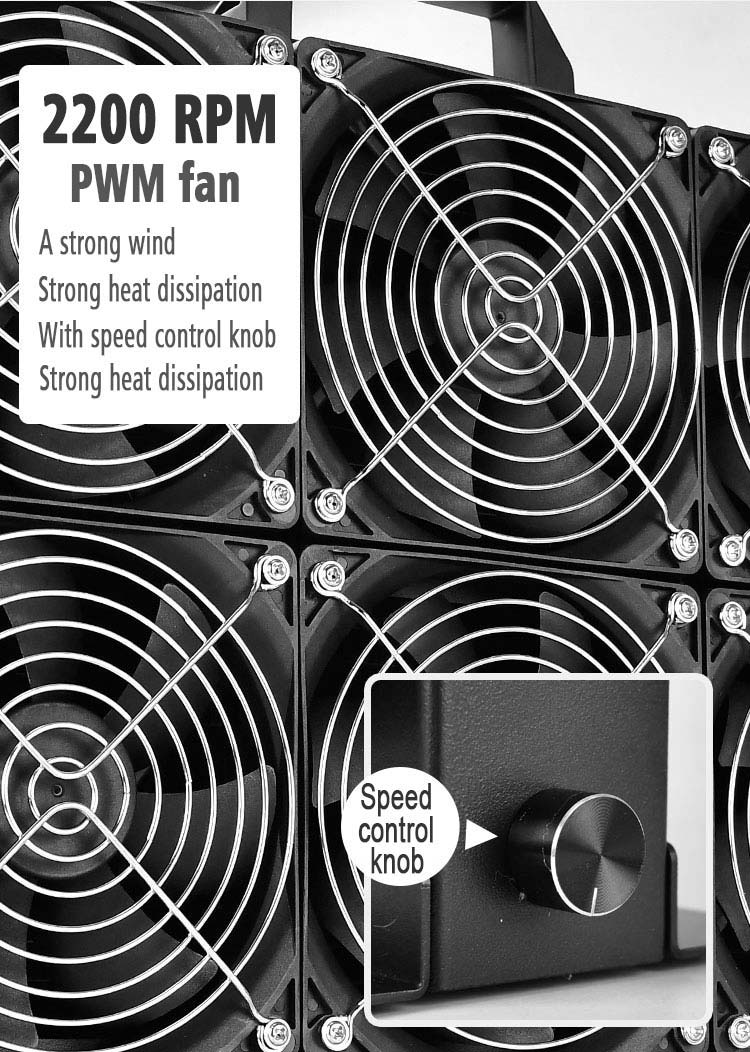

Fan Speed: 2200 RPM

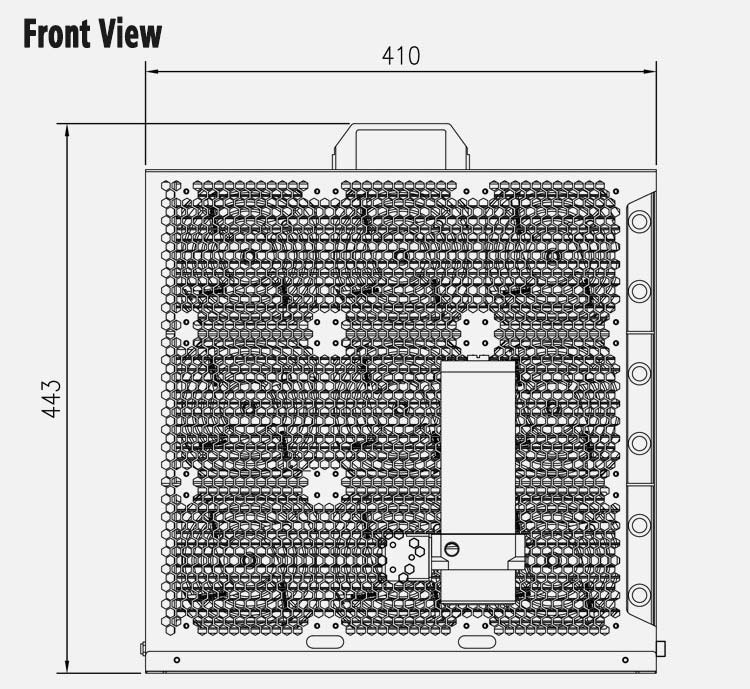

Radiator size: 592mm*243mm*358mm (Length * Base width * Height)
Radiator Material: Aluminum/Copper
Weight:
Color: Black
Interface type: G1/4 thread
Tip:
In order to create a good heat dissipation system after the installation of water cooling loop, please follow the following instructions before adding water cooling liquid:
1. When filling the water-cooled liquid, it is necessary to start the pump power repeatedly for several times. This repeated switching action can facilitate the water cooling liquid into the loop, and the air out.
2, do not make the pump idle! If there is no water cooling liquid, turn off the water cooling pump power immediately to avoid water pump damage.
3. Injecting water cooling liquid from the top cover of the water tank can reduce the probability of air entering the pump and prolong the service life of the pump.

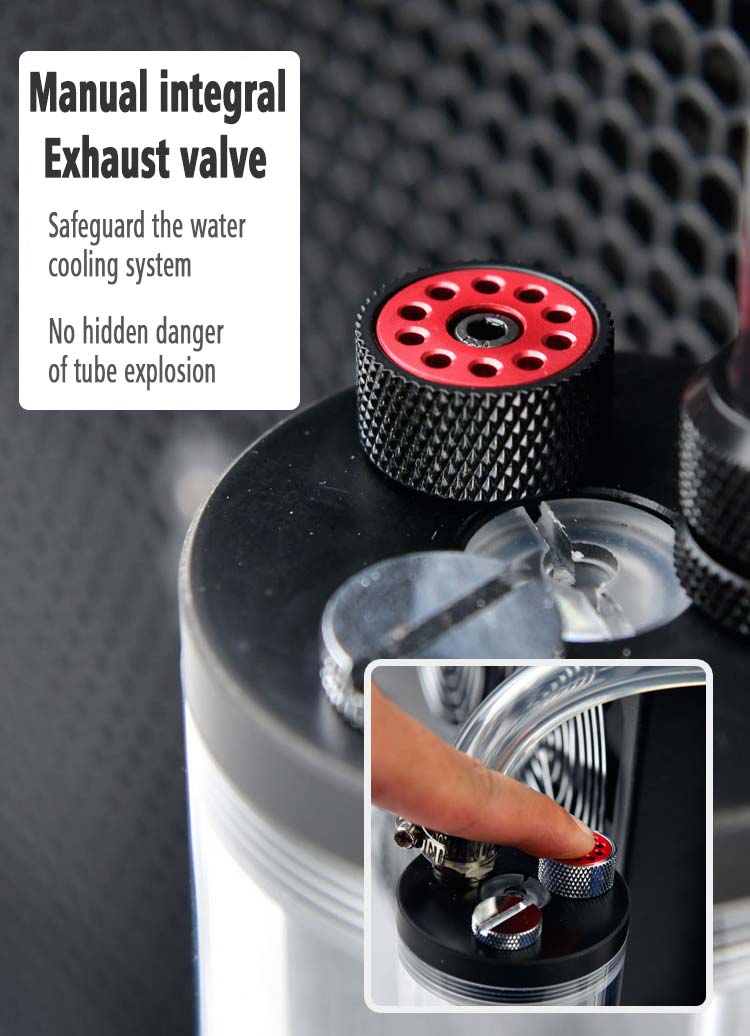

4. In order to exhaust smoothly, slightly inclined system can be discharged in the air.
5. When testing whether there is water leakage, please place toilet paper or towel at the joint of the pipe joint to confirm the water leakage.
