OCOCOO BC5 External Integrated Aluminum Radiator

Product Advantages

• Engineered for 4000W High-Power Applications The BC5 is developed for extreme thermal loads, making it a versatile choice for industrial systems, server clusters, and OEM cooling solutions. Wholesale buyers benefit from a high-capacity single SKU that simplifies system integration and reduces the need for multiple smaller cooling units.

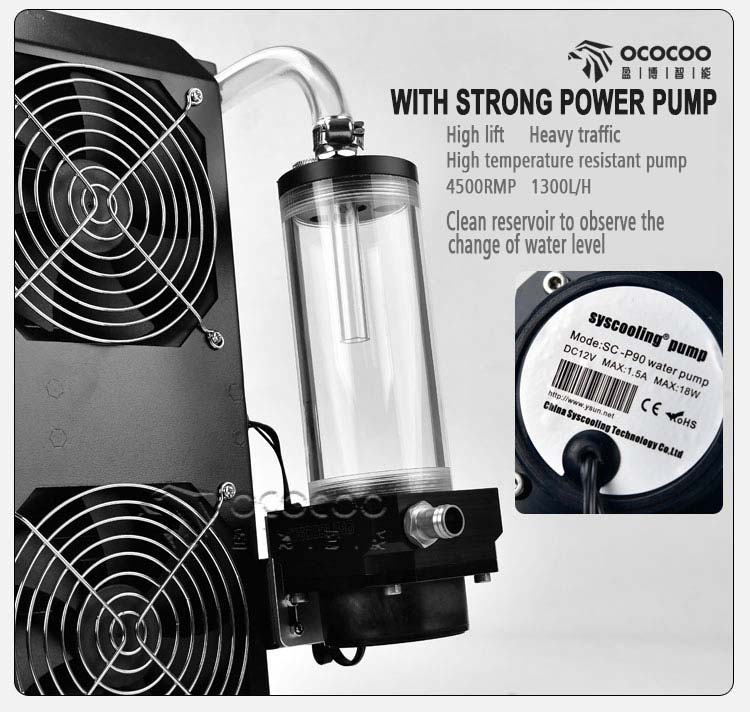

• Integrated High-Performance Components Equipped with the SC-P90 strong power pump, providing a 1300L/H flow rate and 4500RPM high-lift performance. Combined with 8 high-pressure fans (2200RPM), the BC5 ensures consistent thermal throughput and low pressure drop even under 24/7 industrial workloads.

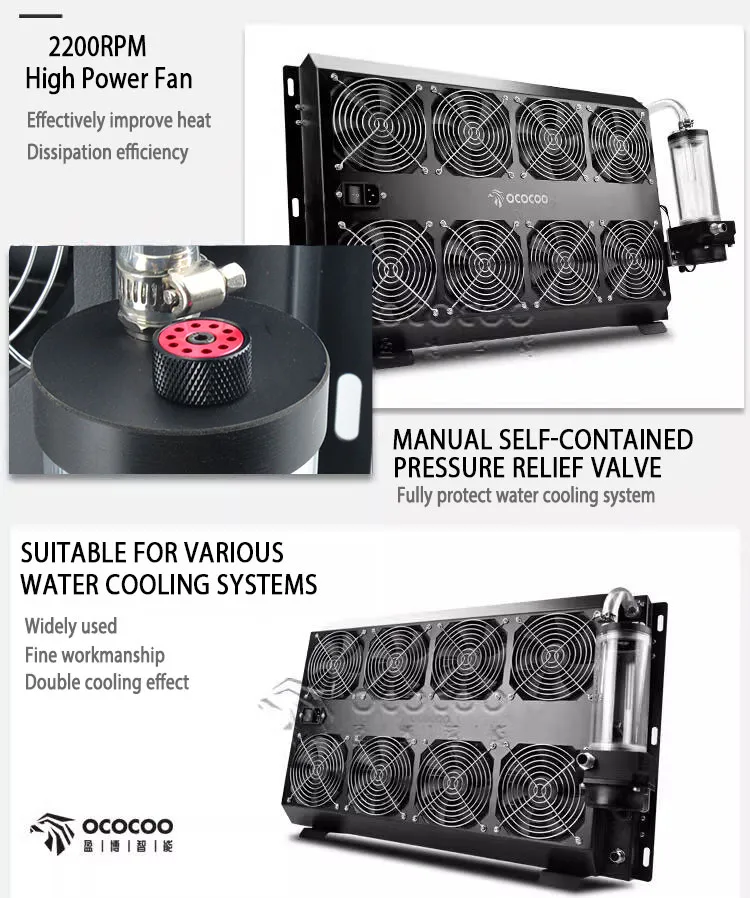

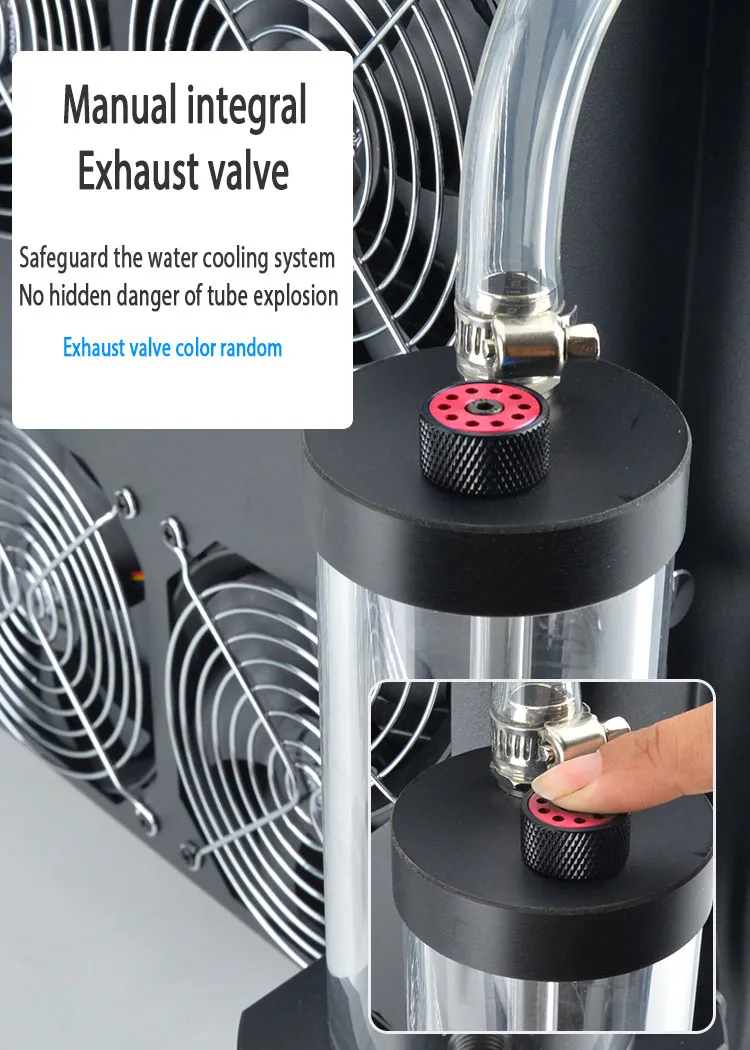

• Industrial Safety & Maintenance Reliability Features a manual self-contained pressure relief valve to protect the internal loop from pressure spikes. The transparent reservoir allows for real-time water level monitoring, while the integrated speed control knob provides precise management of noise and cooling efficiency.
• B2B Supply Chain & Customization Support As a leading radiator factory manufacturer, we provide manufacturing scale and DfM (Design for Manufacturing) support. We offer customization for core lengths, fin density, and branding (Logo/Finish) to meet the specific requirements of radiator factory wholesale and industrial integrators.

Pump Parameters:

Maximum Flow: 1300L/H

Maximum Head: 5M

Operating Current: 1.8A

Speed Measurement Interface: Small 4P interface

Working Noise: ≤25DB

Input Voltage: DC12V

Weight: About 8.20KG (including packaging)

Operating Temperature: -10~60℃

Speed Control type: Supports PWM speed control

Circuit Design: Three-phase brushless DC circuit, MCU control

Name: BC5 external water cooled integrated radiator

Maximum power: 4000W

Pump parameters: 4500RMP 1300L/H

Fan speed: 2200 RPM

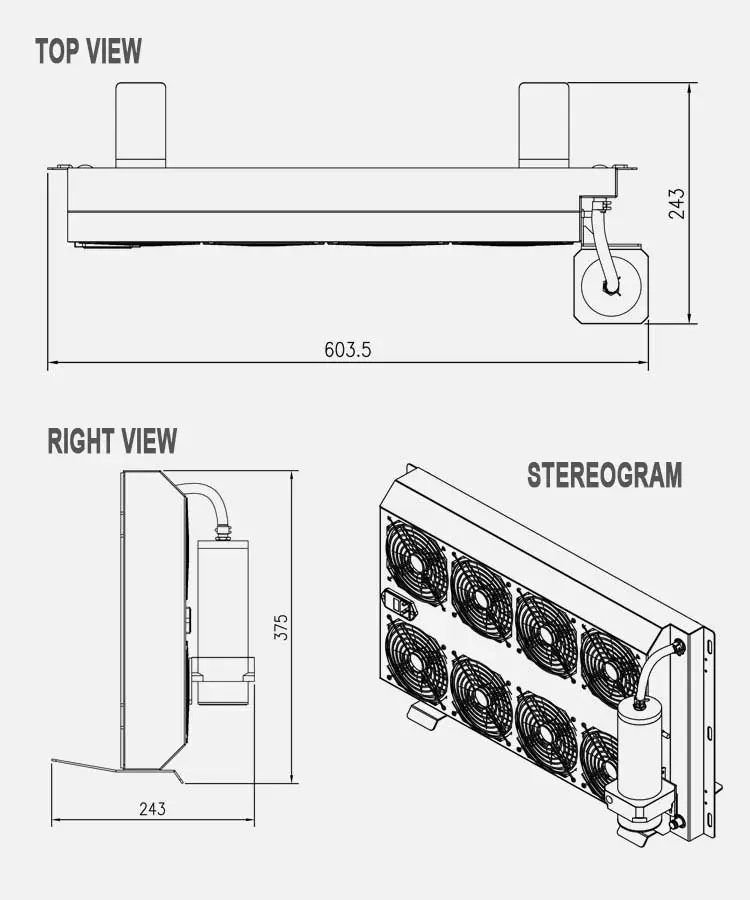

Cold row size: 592mm*243mm*375mm (length * base width * height)

Cold discharging material: Aluminum

Color: Black

Interface type: G1/4 thread

Tip:

In order to create a good heat dissipation system after the installation of water cooling loop, please follow the following instructions before adding water cooling liquid:

1. When filling the water-cooled liquid, it is necessary to start the pump power repeatedly for several times. This repeated switching action can facilitate the water cooling liquid into the loop, and the air out.

2, do not make the pump idle! If there is no water cooling liquid, turn off the water cooling pump power immediately to avoid water pump damage.

3. Injecting water cooling liquid from the top cover of the water tank can reduce the probability of air entering the pump and prolong the service life of the pump.

4. In order to exhaust smoothly, slightly inclined system can be discharged in the air.

5. When testing whether there is water leakage, please place toilet paper or towel at the joint of the pipe joint to confirm the water leakage.

Usage Scenarios: Scalable Thermal Solutions for High-Demand Environments

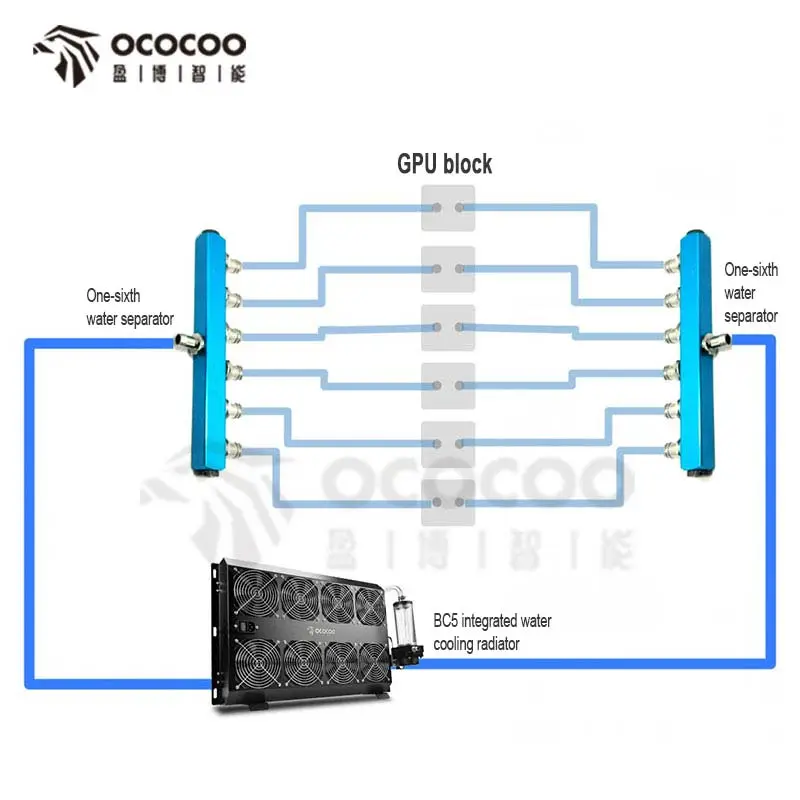

1. Industrial AI Computing and High-Density Server Racks

For data centers and AI workstations handling intense computational loads (GPU clusters/FPGA), the BC5 Integrated Radiator provides a massive 4000W heat dissipation overhead.

2.  Medical Equipment and Laboratory Precision Cooling

In high-precision sectors like Molecular Diagnosis (PCR) and Automated Immunoassay, maintaining a stable temperature is critical for biochemical reactions.

3. Autonomous Driving Simulation and EV Testing Stations

As seen in applications for Autonomous Driving Domain Controllers (ADDC) and power semiconductor testing, the BC5 is engineered to handle the high TDP of next-gen automotive electronics.

4. High-Performance Workstations and Custom Liquid Cooling Distribution

For distributors focused on PC cooling solutions wholesale, the BC5 represents the ultimate "plug-and-play" liquid cooling kit for extreme enthusiasts and professional creators (3D rendering/Video production).
