Product Parameters:

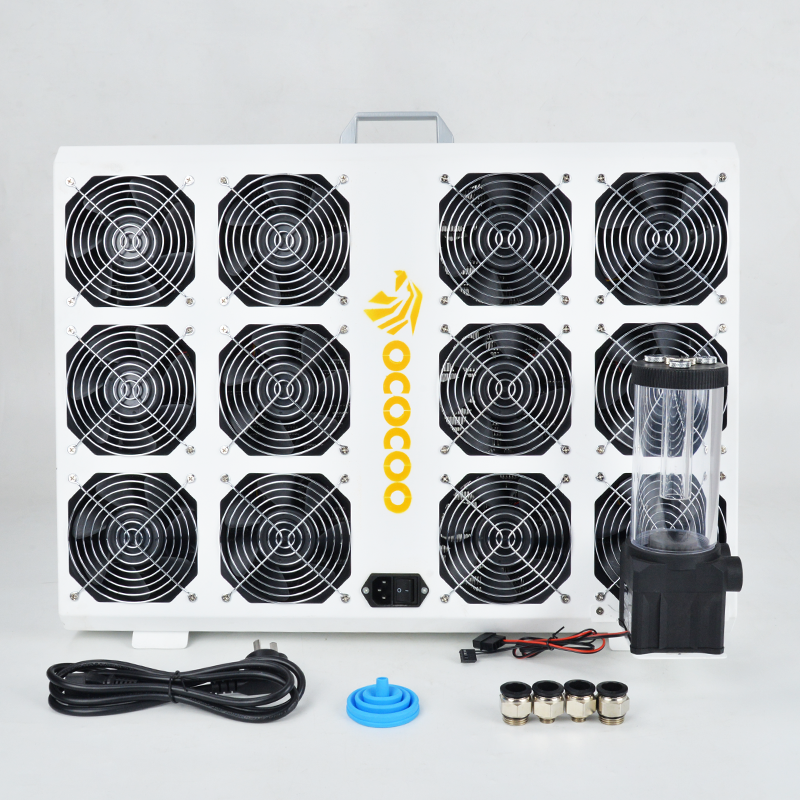

Product Name: BC23 integrated water-cooled radiator
Maximum Power:8000W
Weight:About 14kg
Fan Speed:5600RPM
Interface type:G1/4 thread
Color:White

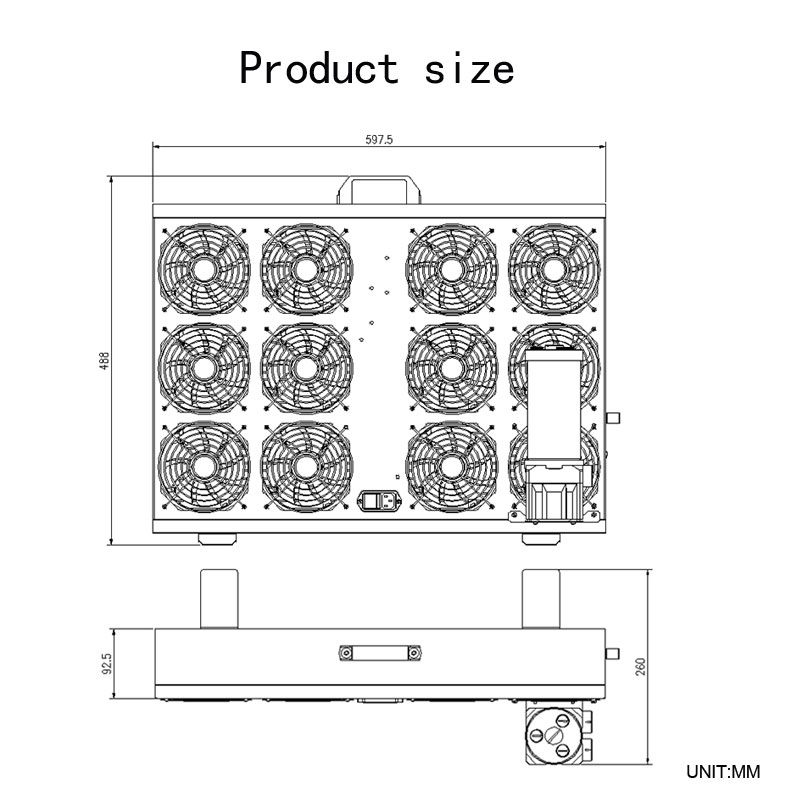

Radiator size:597.5*260*480mm
Pump Parameters:
Rated voltage :DC12V
Model :OC-D700 thread port
Voltage range :8-13 v
Rated current: 3.5+5%A
Rated power :42w
Materials :PPS
Maximum flow :1500L/ h
Maximum head: 13M
Sealing: ≤0.2MPA
Speed control :PWM speed control
Tip:
In order to create a good heat dissipation system after the installation of water cooling loop, please follow the following instructions before adding water cooling liquid:
1. When filling the water-cooled liquid, it is necessary to start the pump power repeatedly for several times. This repeated switching action can facilitate the water cooling liquid into the loop, and the air out.
2, do not make the pump idle! If there is no water cooling liquid, turn off the water cooling pump power immediately to avoid water pump damage.
3. Injecting water cooling liquid from the top cover of the water tank can reduce the probability of air entering the pump and prolong the service life of the pump.
4. In order to exhaust smoothly, slightly inclined system can be discharged in the air.
5. When testing whether there is water leakage, please place toilet paper or towel at the joint of the pipe joint to confirm the water leakage.
