Pump Parameters:
Maximum head: 6±0.5M
Maximum flow: 12L/MIN
Voltage: DC12V
Rated current: 1.35±5%A
Rated power: 16W
Working noise: ≤35DB
Power interface: Small 4PIN
Speed measurement interface: Small 4PIN
Sealing: ≧ 0.2Mpa
Operating temperature: -15~60℃
Inlet and outlet: G1/ thread
Bearing material: Ceramic
Pump body material: Aluminum + Acrylic +POM
Pump body dimensions: 63.5*62*56mm (Length * Width * Height)
Design life: 30,000 hours
Appearance color: Black
Working principle: centrifugal pump
Tank size: Diameter 60mm, length 130mm (Transparent acrylic part length of tank)
Product Parameters:

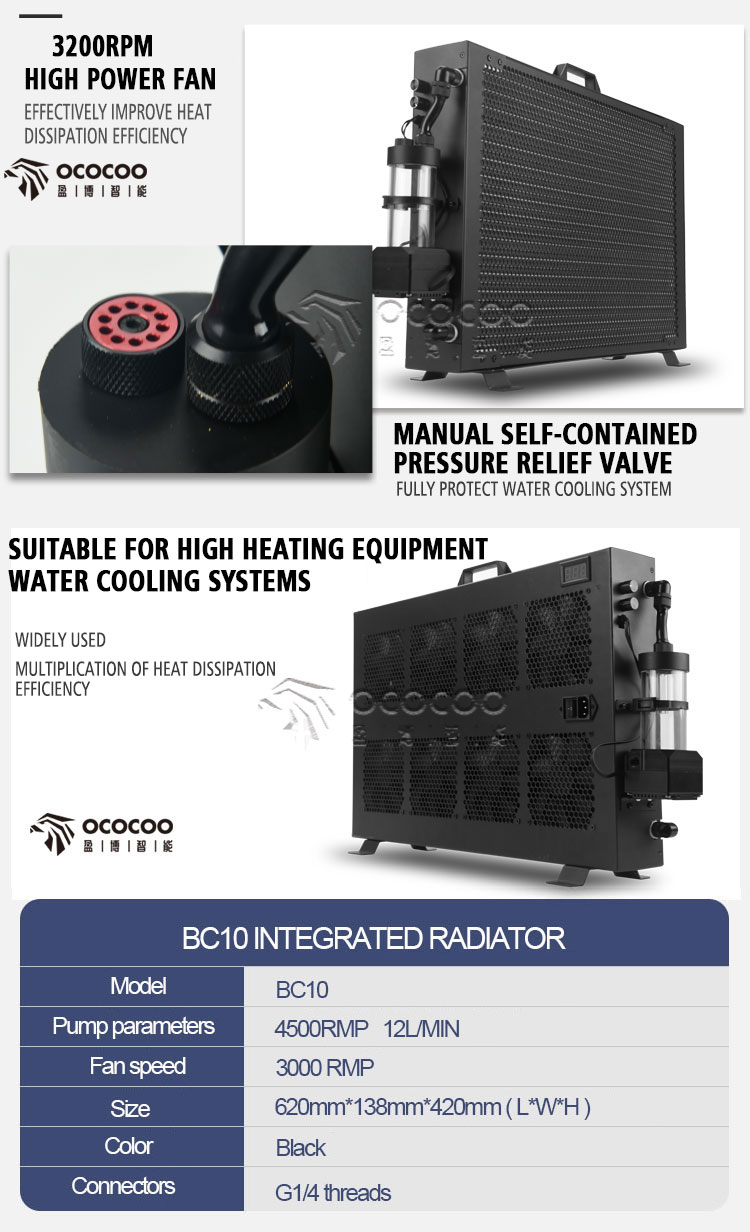

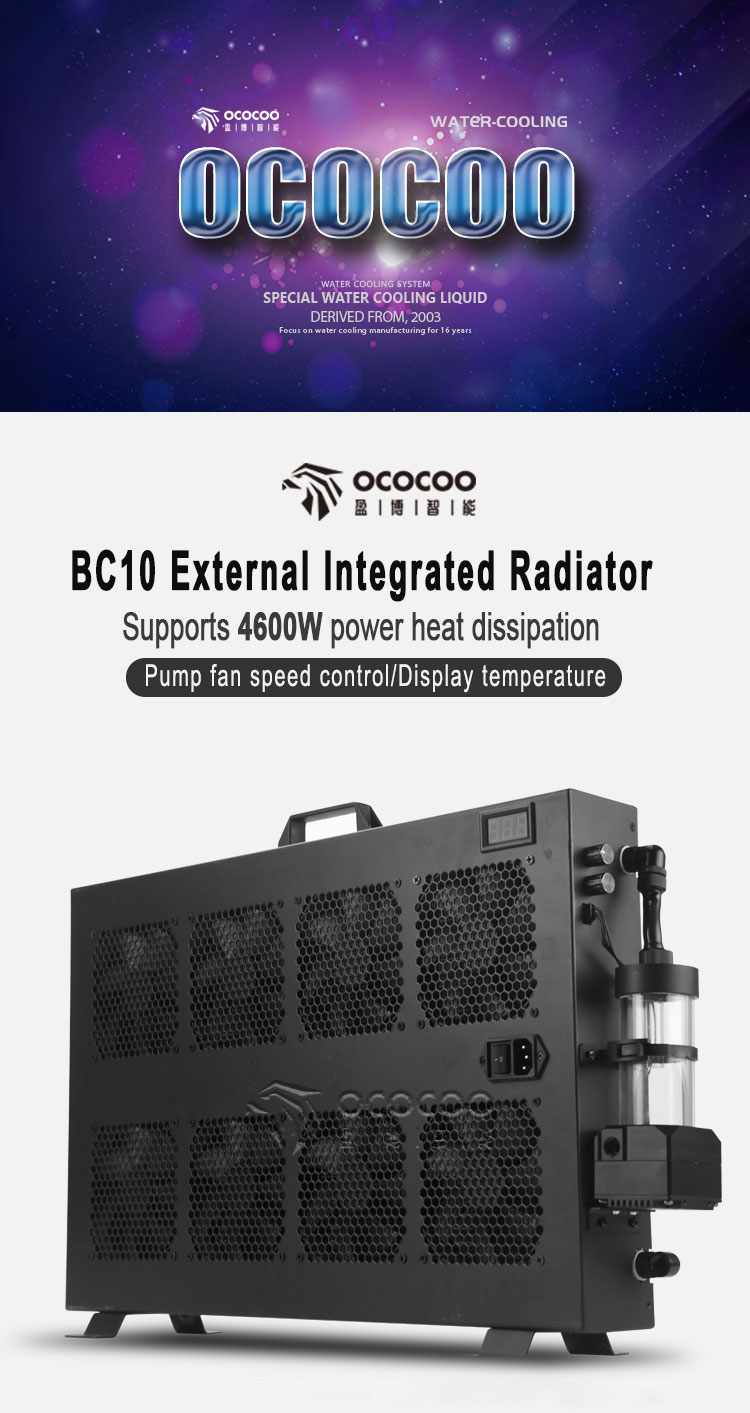

Name: BC10 external water cooled integrated radiator
Maximum Power: 4600W
Pump Parameters: 4500RMP 12L/MIN
Fan Speed: 3000 RPM
Radiator size: 620mm*138mm*420mm (L*W*H)
Radiator Material: Aluminum
Color: Black
Connectors: G1/4 thread
Tips:
After installing the water cooling circuit, in order to create a good heat dissipation system, please follow the following precautions before adding cold water: 1.When filling the water-cooling liquid, it is necessary to repeatedly start the power supply of the water pump for several times. This repeated switch action can help to inject the water-cooling liquid into the circuit and discharge the air.
2.Do not idle the water pump! If there is no cold liquid, please turn off the power supply of the water cooling pump immediately to avoid damage to the water pump
3. Injecting water-cooling liquid into the upper cover of the water tank can reduce the probability of air entering the water pump and prolong the service life of the water pump.
4.For smooth exhaust, slightly tilt the system to facilitate the exhaust.
5. When testing whether there is water leakage, please place toilet paper or towel at the joint of pipe joint to confirm the water leakage.

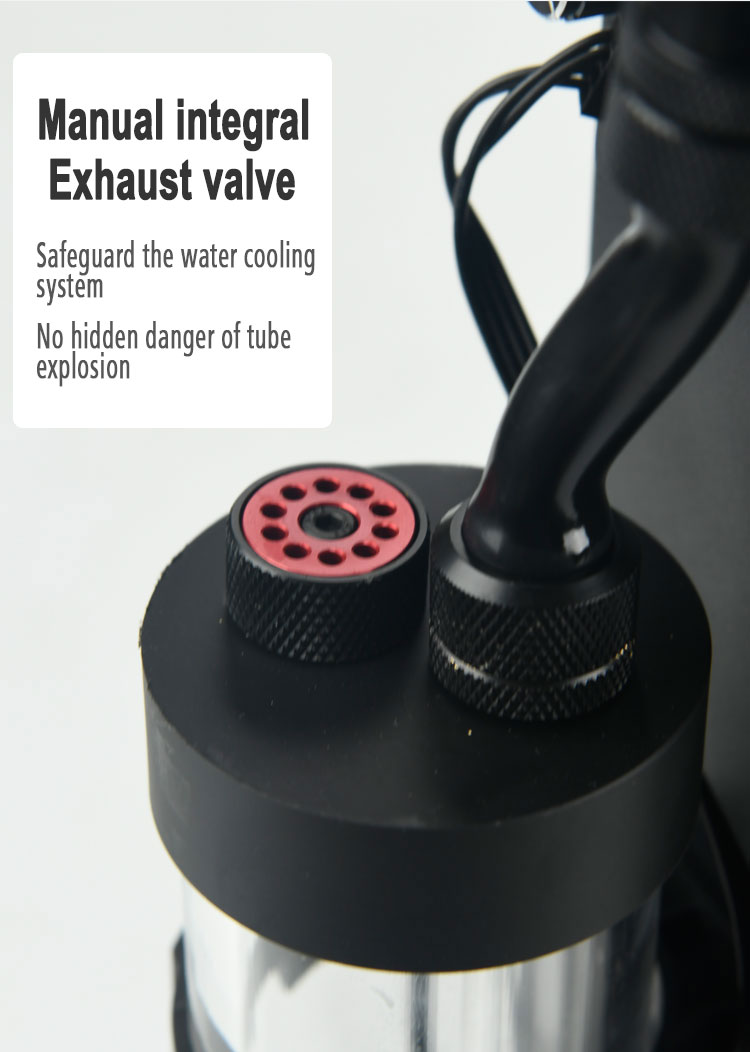

6. After completing the water injection, please open the screw at the water injection port above the water tank and let the water cooling circuit circulate continuously for 24 hours, which can effectively discharge the gas out of the water cooling system.
