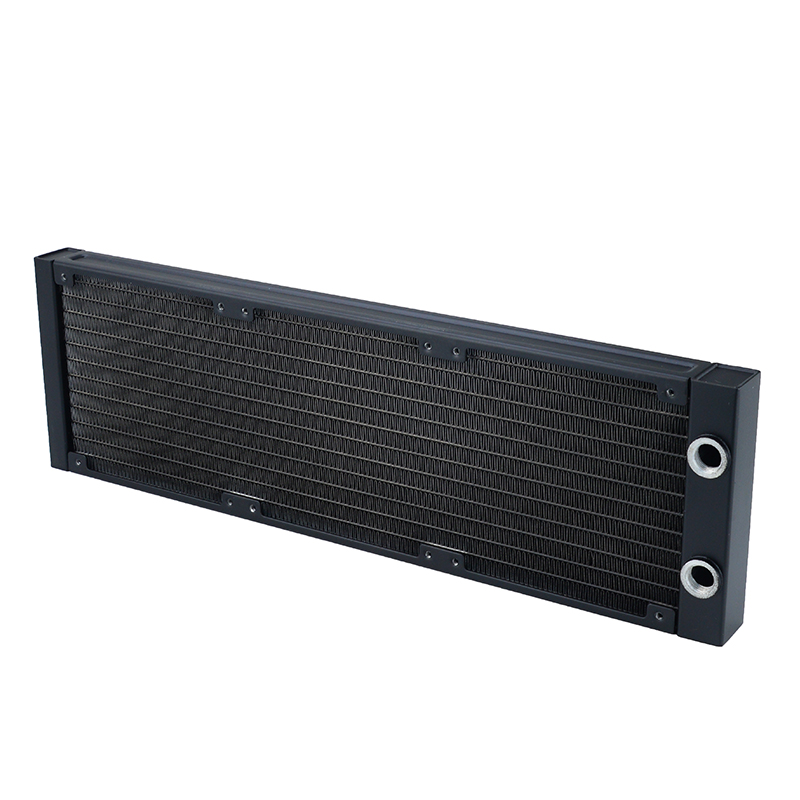

Product Parameters:
Model: AS360-L
Material: Aluminum
Interface Type: G1/4 thread

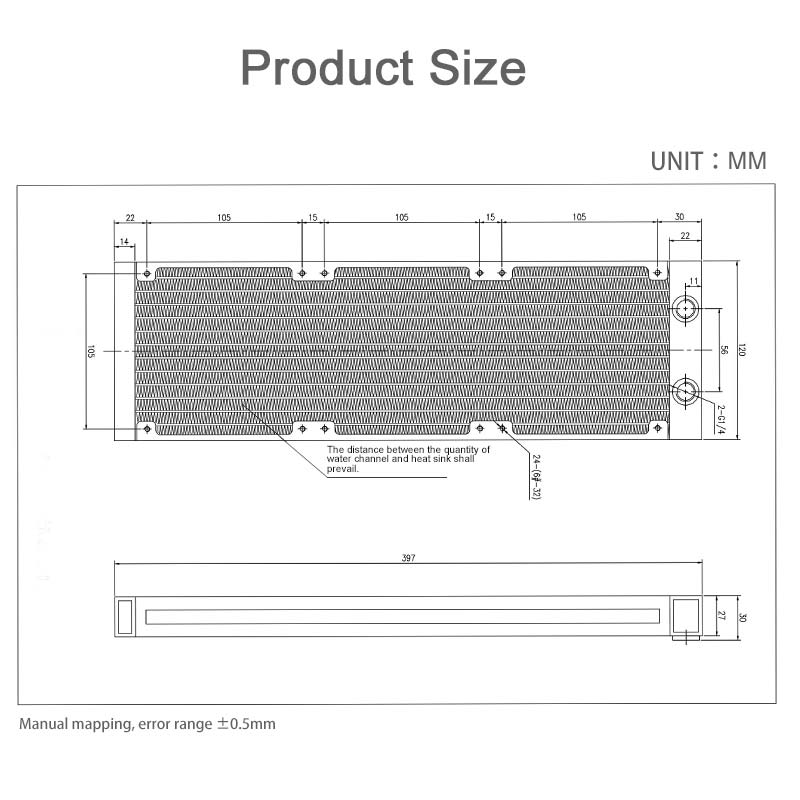

Size: 397 mm * 120 mm * 30 mm
Waterways: 12
Pressure Test: 0.2Mpa
Color: Black
Interface size: 11.8mm*18mm (inner diameter * outer diameter)
Surface Treatment: Baking paint
Production Process: High temperature integrated solder
Fan Diameter: 120mm
Weight: About 0.65KG(including packaging)
Application: Computer CPU water cooling, Industrial frequency conversion driver, Laser head cooling, Industrial control cabinet cooling
Core selling point
1. Corrugated aluminum fins over flat micro-channel tubes give this 360mm radiator maximum heat-exchange surface across a triple-fan footprint, absorbing sustained loads from industrial lasers, medical imaging, and high-density servers while stabilizing coolant temperature.
2. Precision-engineered aluminum construction delivers dependable industrial cooling at roughly one-third the density of copper, cutting freight costs and easing rack installation. Corrosion-resistant surface treatment keeps the core reliable in humid plants, medical facilities, and outdoor energy storage sites.

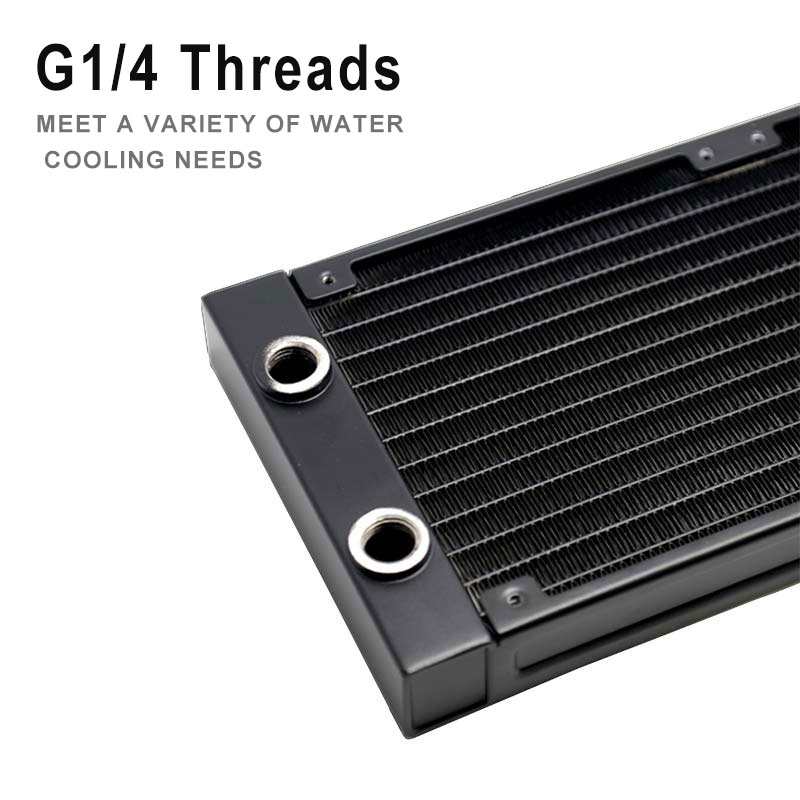

3. Machined dual G1/4 ports on the end tank connect standard fittings, pumps, and quick couplings across industrial cooling architectures. Clean port layout simplifies series or parallel routing, letting integrators scale from laser modules to multi-rack loops with leak-free joints.
4. Standard 120mm fan points across the 360mm body accept three high-static-pressure fans, or low-speed fans where noise compliance matters. This flexibility supports silent medical diagnostic rooms, laboratory workstations, and high-throughput computing centers on one proven platform.
5. Every unit passes 100% pressure leak testing before shipment, while the fully brazed aluminum core eliminates joint fatigue seen in low-cost alternatives. Consistent fin pitch and flat-tube alignment guarantee uniform airflow for stable cooling through years of 24/7 industrial service.
6. Built for high-TDP reliability, this radiator serves laser cutting, beauty instrument, EV charging, semiconductor, and AI computing systems. Its 360mm footprint and universal mounting pattern drop into standard racks or custom loops with minimal engineering effort.
