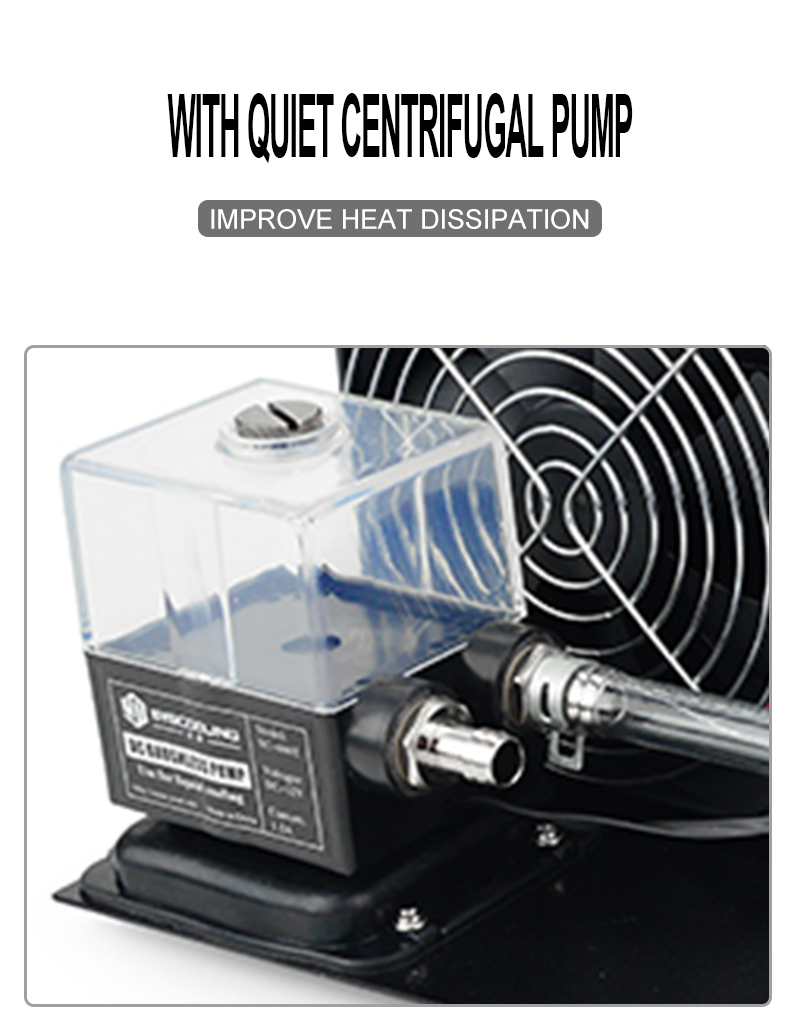

SC-600T Water pump specifications

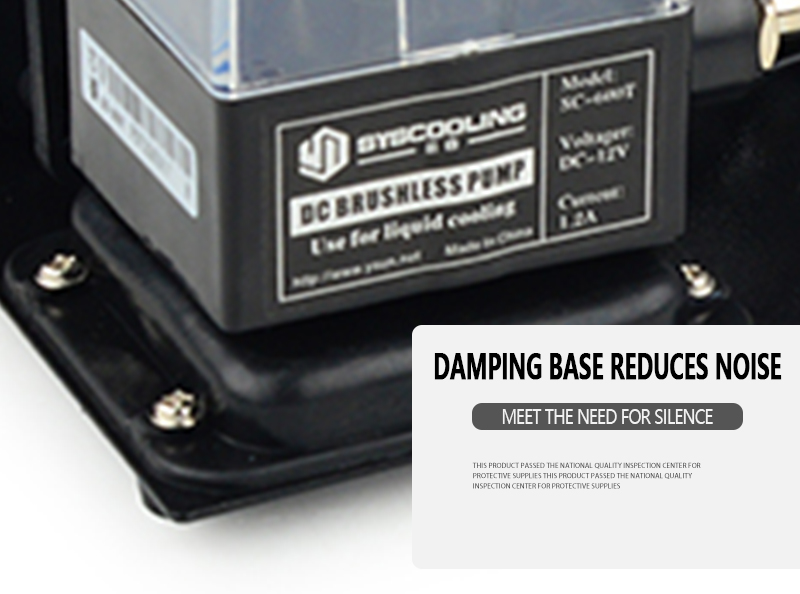

Model: SC-600T
Maximum head: 4M
Maximum flow: 650L/H
Working current:1.2A

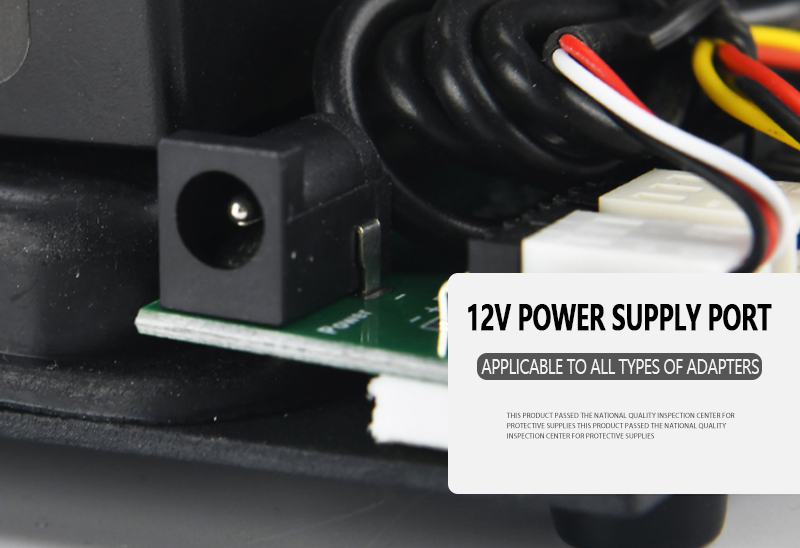

Working voltage: DC12V

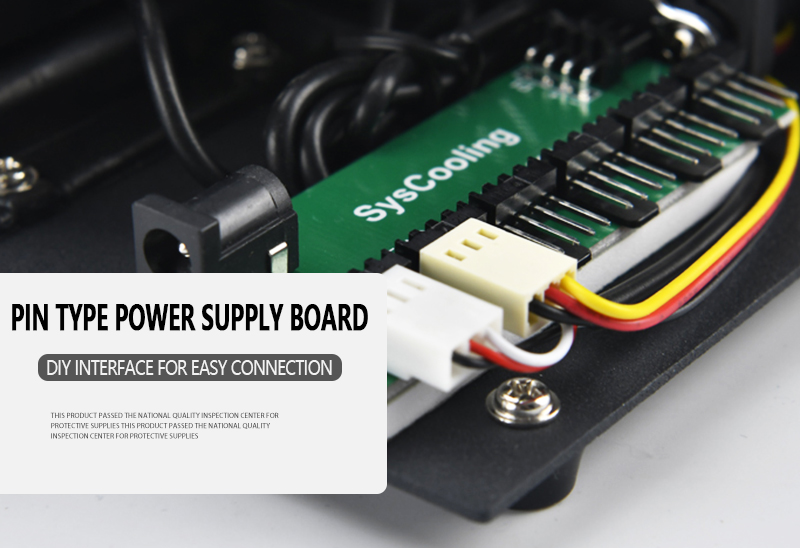

Power interface: Large 4PIN
Bearing material: ceramic bearing
Speed measurement interface: Small 3PIN
Working noise: ≤30DB
Operating temperature: -10~65℃
Pump body material: ABS plastic

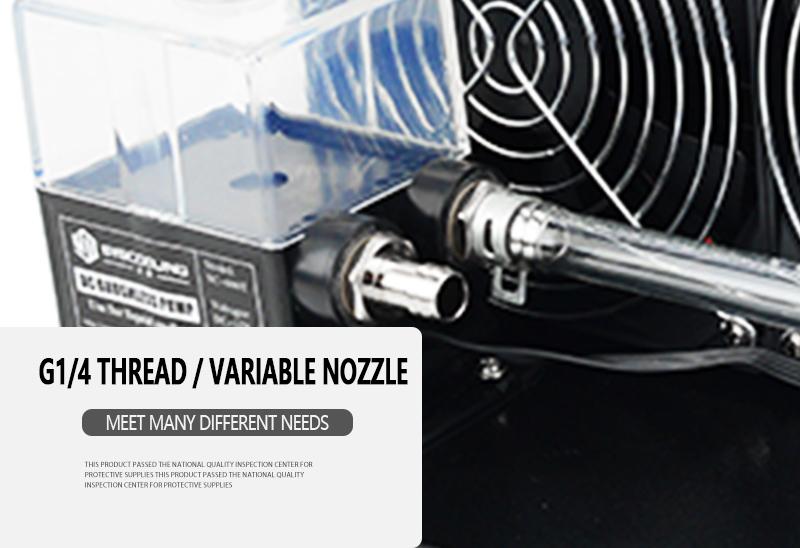

Inlet and outlet: G1/4 thread
Appearance color: Black + Transparent reservoir
Peak speed: 2600RMP

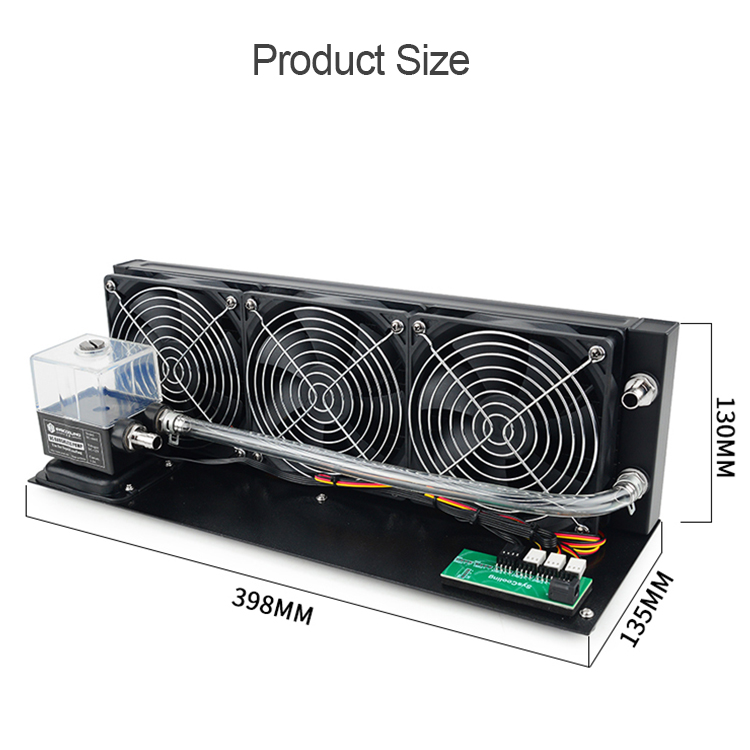

Product size: 75mm*55mm*88mm
Weight: 2.15KG (including packaging)
Filling hole: G1/4 thread
Design life: 5W hours
Circuit design: three-phase brushless circuit, MCU control
