Core selling point

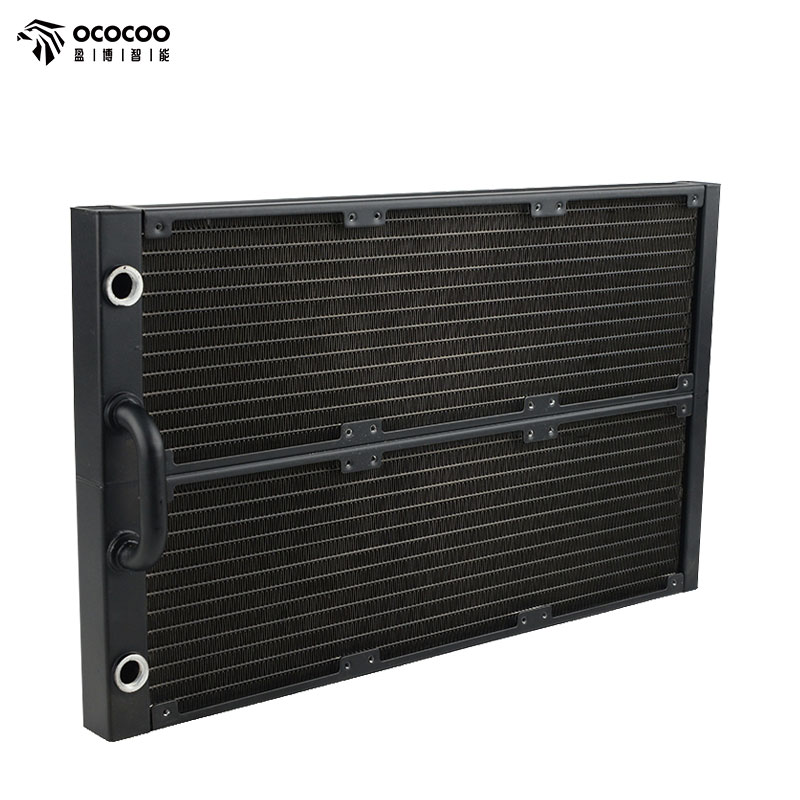

1. Dual-row 360mm radiator architecture doubles coolant flow path and heat exchange capacity versus single-row units, delivering maximum thermal dissipation for high-power industrial lasers, large-scale UPS systems, and high-density AI computing installations.
2. U-shaped bypass tube connects upper and lower cores in series, extending coolant dwell time and maximizing heat absorption across both fin sections for superior temperature reduction in extreme heat load applications.
3. Two stacked high-density fin cores with precision flat-tube construction provide massive heat exchange surface area, efficiently removing waste heat from laser resonators, power converters, and high-power IGBT modules in continuous 24/7 operation.
4. Vacuum brazed construction with reinforced multi-chamber sealing guarantees leak-proof performance and uniform heat distribution, ensuring long-term reliability for mission-critical cooling systems in semiconductor fabrication and industrial processing.
5. Six-fan mounting capacity across two rows of three generates powerful airflow through the dual core, enabling rapid heat rejection for high-heat-flux equipment while maintaining stable operating temperatures under peak production load.
6. Top and bottom G1/4 threaded ports provide flexible loop routing options for chiller systems and pump-reservoir integration, while the heavy-duty matte black frame with corrosion-resistant finish ensures durable service in harsh industrial environments.
Product Parameters:
Type: Radiator
Material: Aluminum
Color: Black
Interface type: G1/4 thread

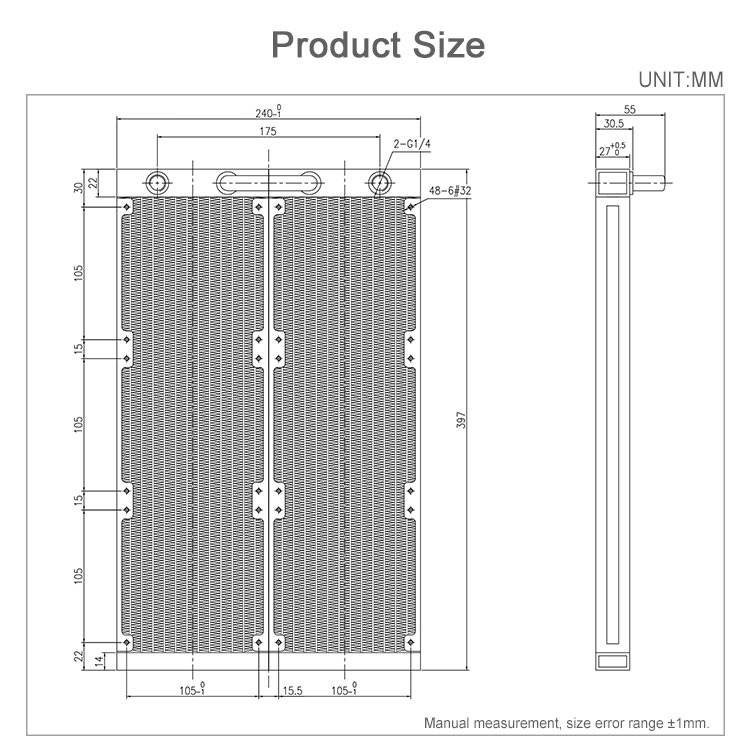

Size: 397*240*30.5mm
Pressure Test: 0.2Mpa
Fan diameter: 120mm（6 PCS）
Surface Treatment: Baking paint
Net Weight: 1.10 KG
Application: computer water cooling system, small equipment heat dissipation
Package List:
360 radiator * 1

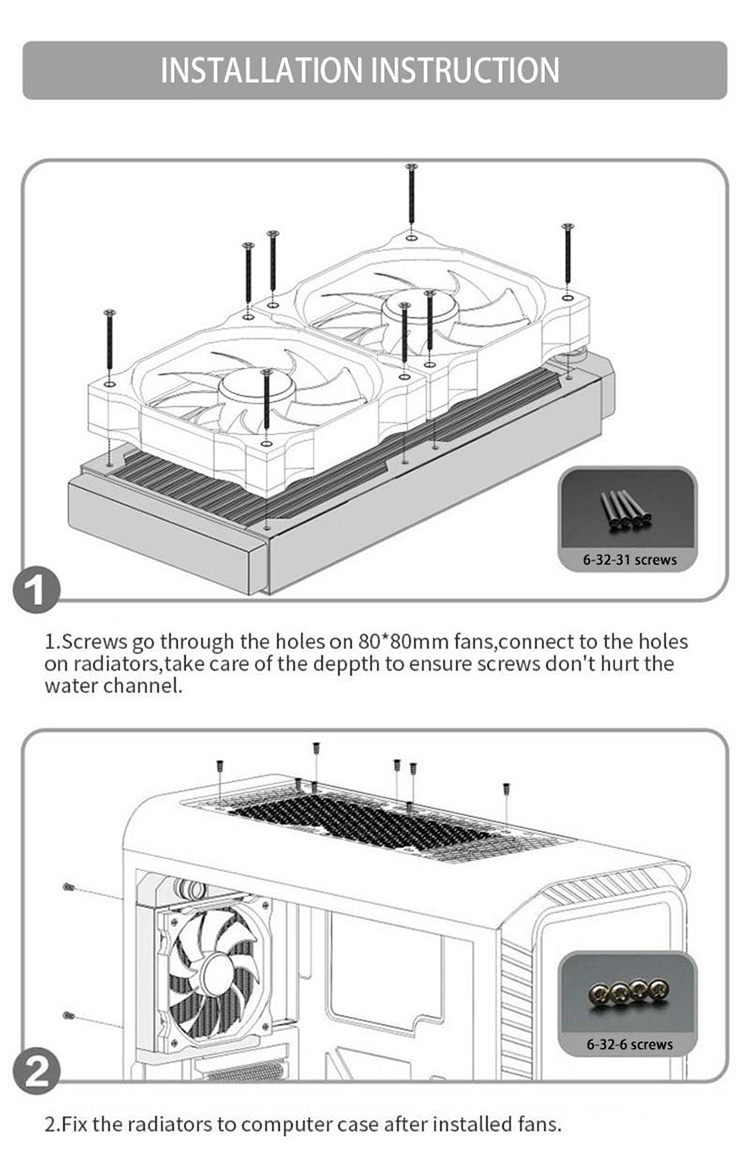

Screw * 48
