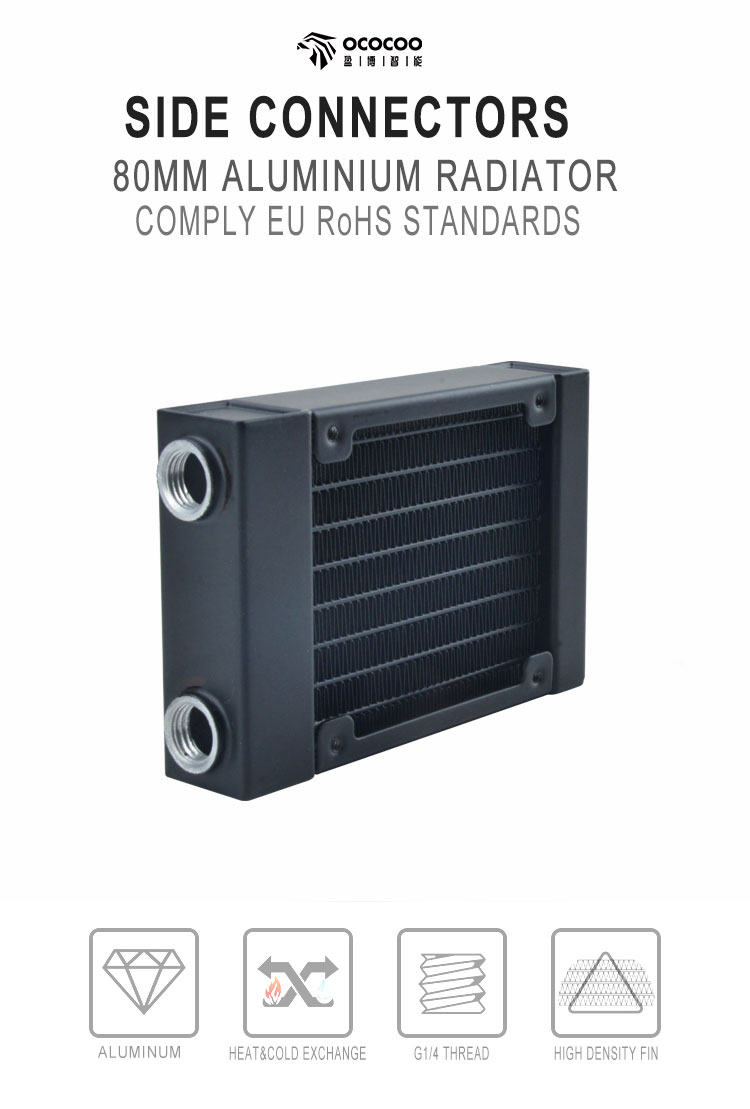

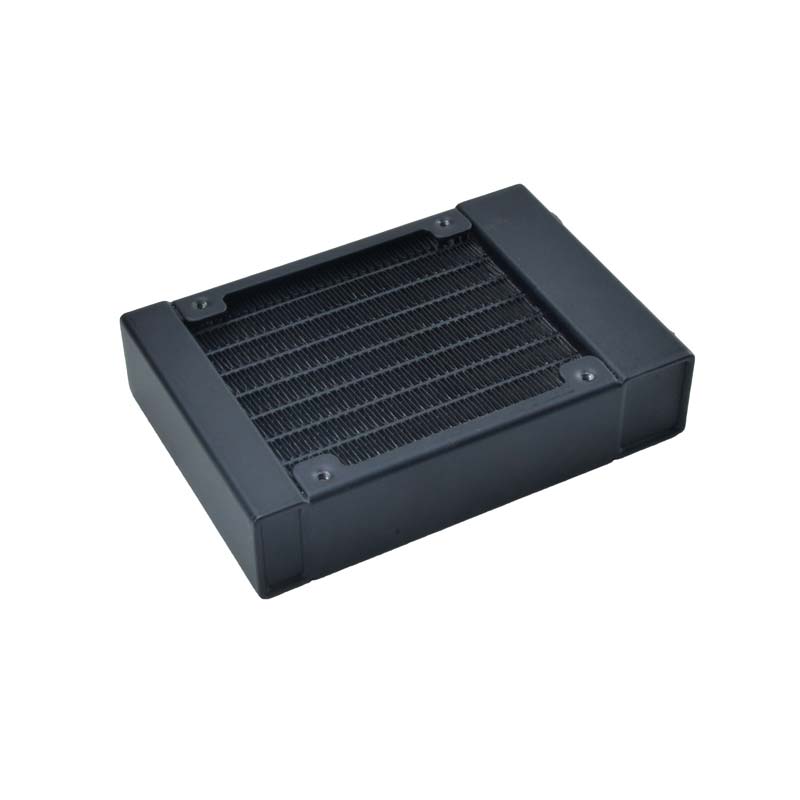

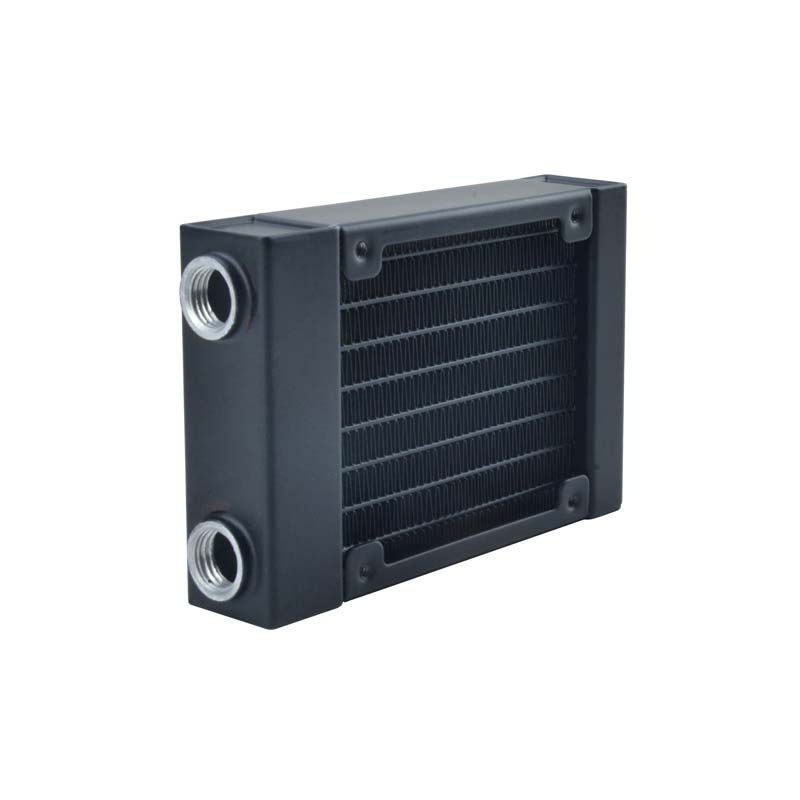

Product Parameters:
Model: AH80-27
Material: Aluminum
Interface Type: G1/4 thread

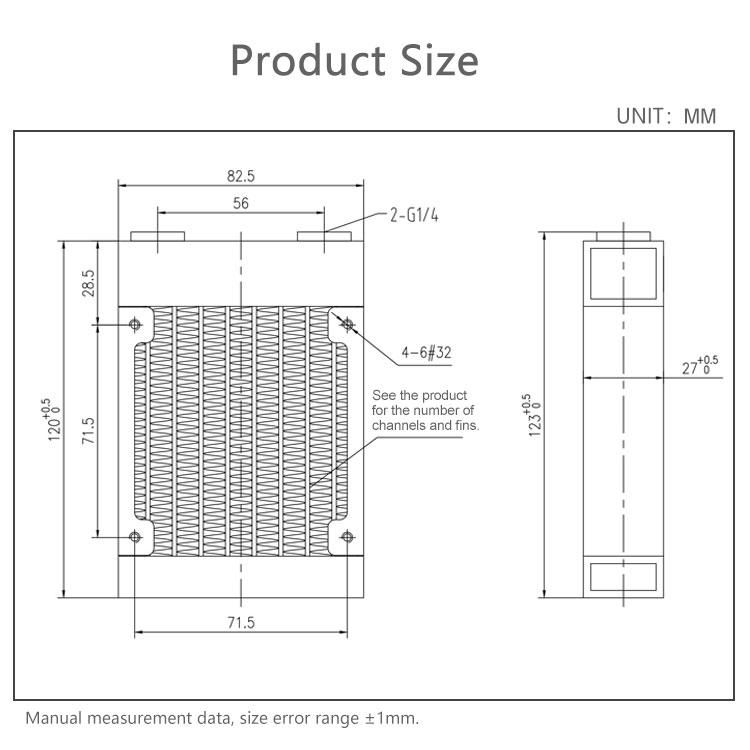

Size:120mm*82.5mm*27mm
Waterways: 12
Pressure Test: 0.2Mpa
Color: Black
Inlet and Outlet Size: 11.8mm*18mm (inner diameter * outer diameter)
Surface Treatment: Baking paint
Production Process: High temperature integrated solder
Fan Diameter: 80mm (1 PCS)
Net Weight: 0.17 KG
Application: Computer CPU water cooling, Industrial frequency conversion driver, Laser head cooling, Printer water cooling

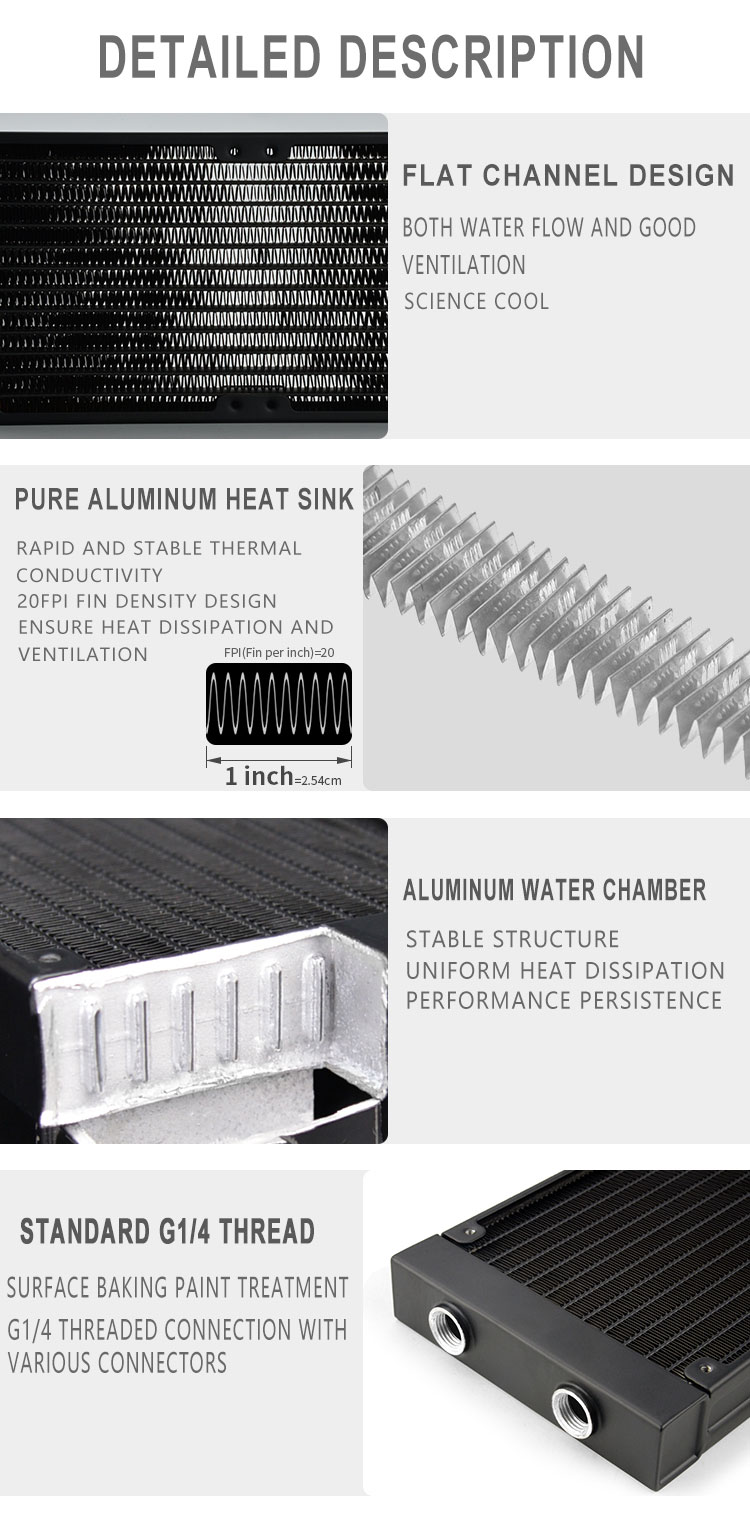

Features:
High-temperature solder molding, 100% factory airtight test.
After wind tunnel and thermal imaging test, the air permeability is strong and the heat dissipation is uniform, which meets the requirements of professional level players for water cooling.
12 single tubes design, high density fins, efficient and practical.
Remarks:

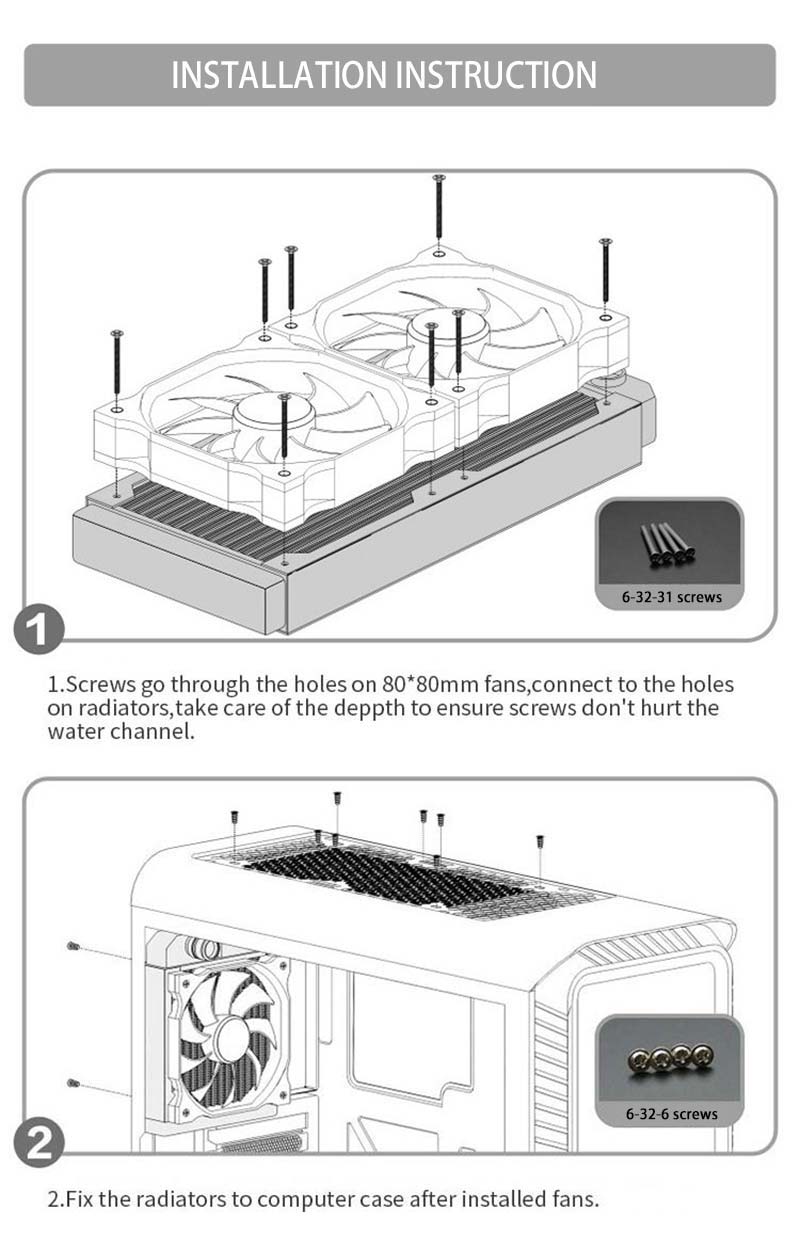

The water pipe is designed under the screw hole.
Using long screws may Pierce the channel.
Please be careful when installing.
This misuse is not covered by the warranty!
