Core selling point

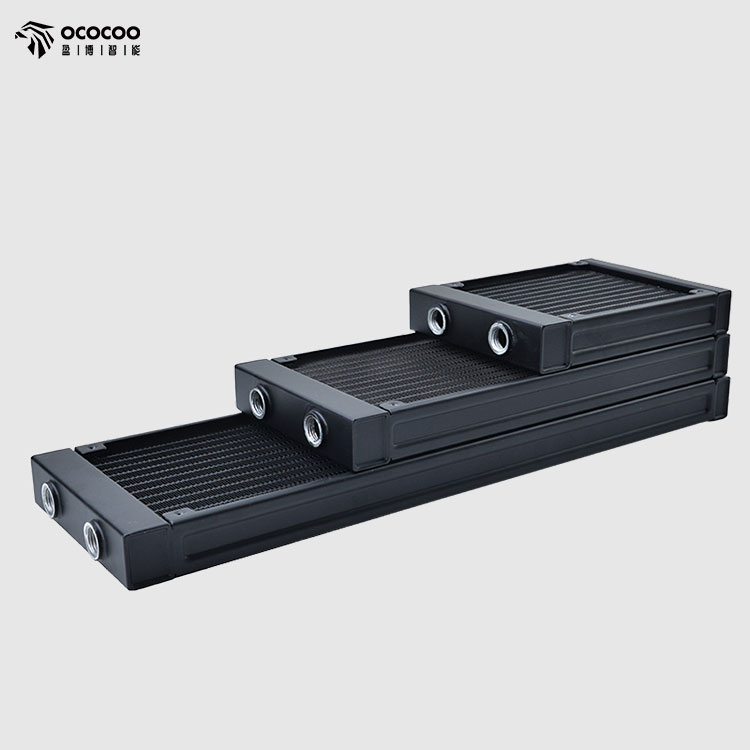

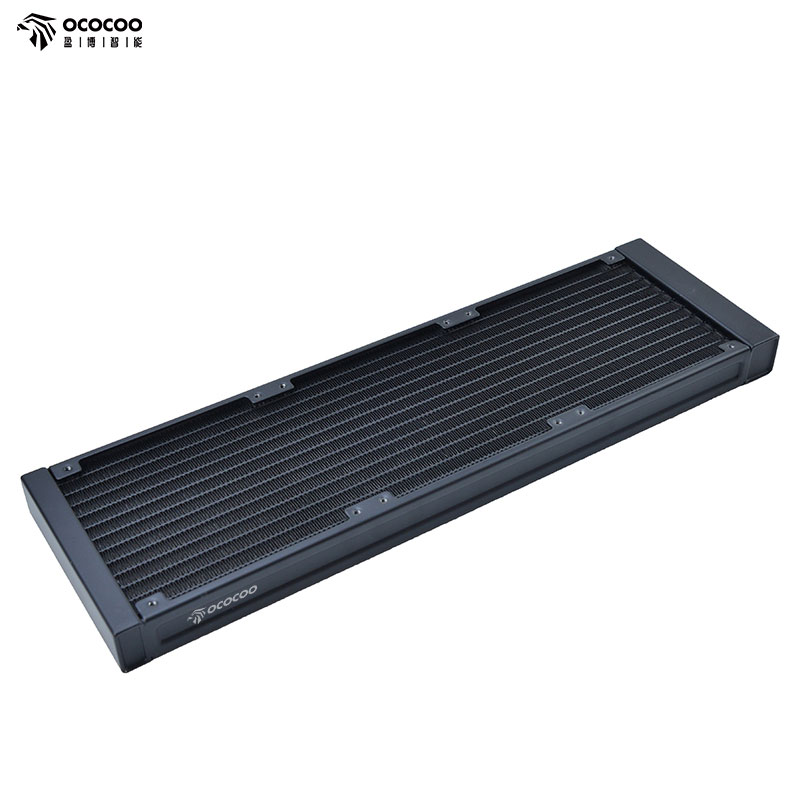

1.360mm triple-fan radiator format provides the largest heat dissipation surface in the series, delivering high-capacity cooling for high-power fiber lasers, industrial UPS systems, and AI computing racks requiring stable thermal management under continuous load.

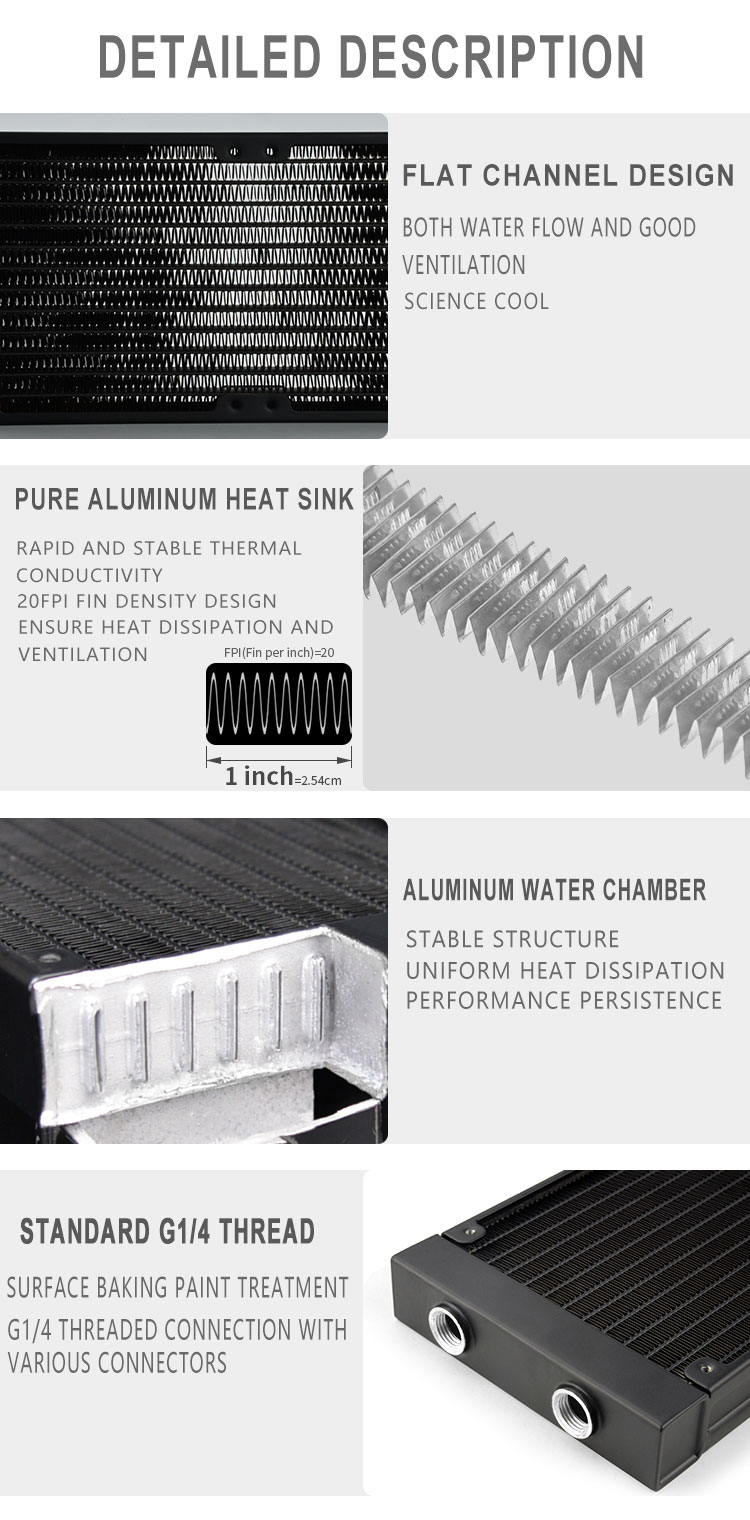

2. 12-tube internal core with dense zig-zag aluminum fin array maximizes coolant contact area and heat exchange efficiency, effectively removing waste heat from laser resonators, IGBT modules, and high-power electronics in demanding production environments.
3. Precision vacuum brazed construction with uniform fin-tube bonding guarantees leak-proof sealing and consistent thermal performance, ensuring long-term reliability for mission-critical cooling loops in medical imaging, semiconductor support, and data center applications.

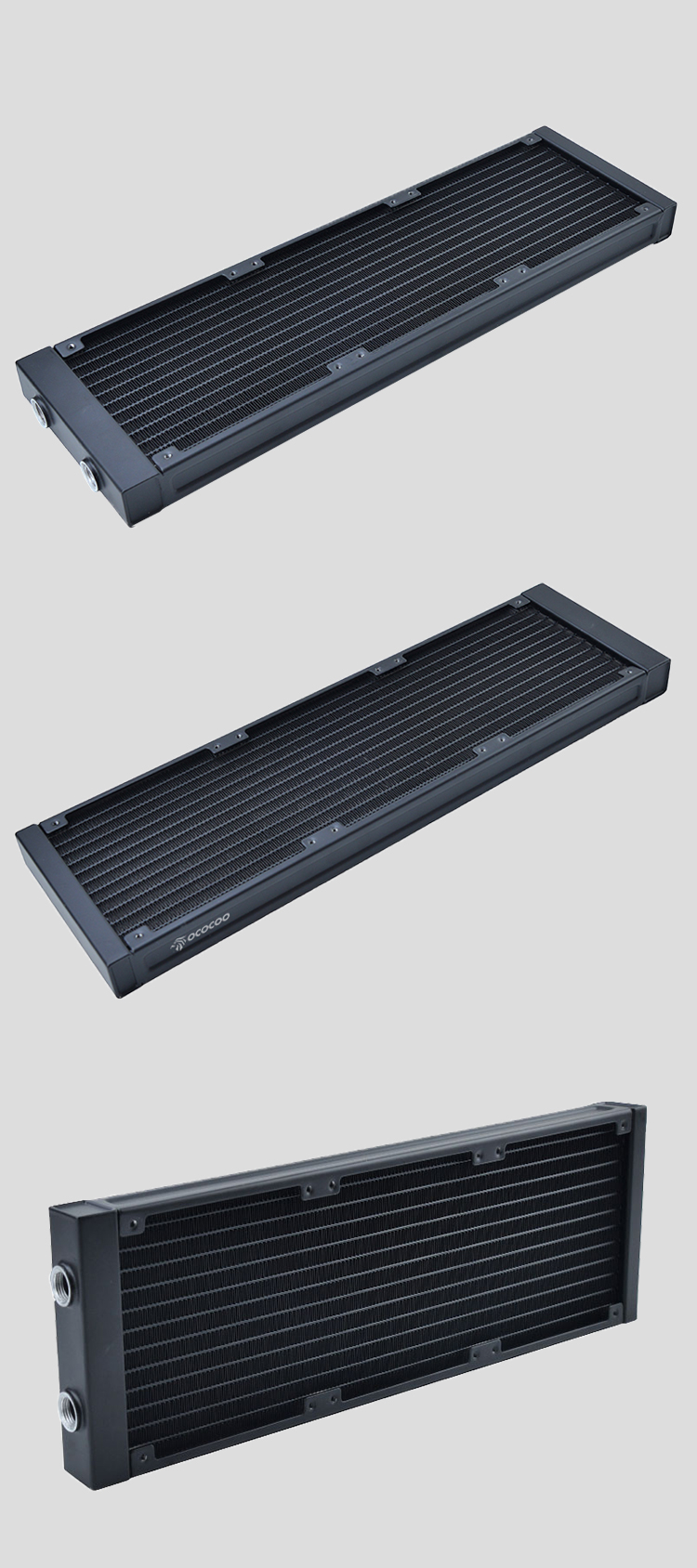

4. Matte black powder-coated finish provides superior corrosion resistance and heat emissivity in harsh industrial environments, withstanding dust, humidity, and temperature fluctuation while maintaining stable heat rejection throughout extended operation.

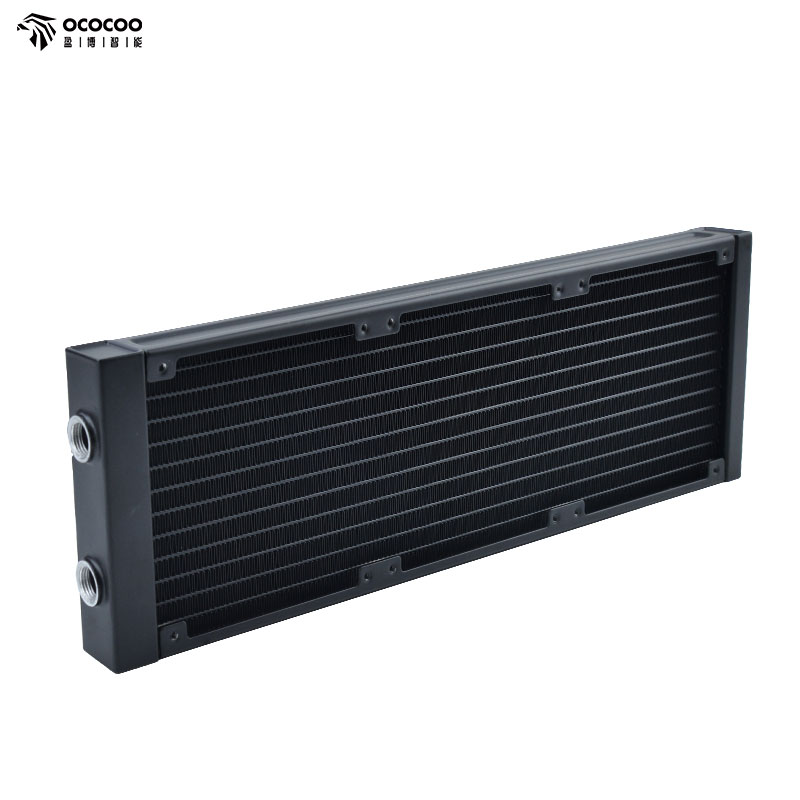

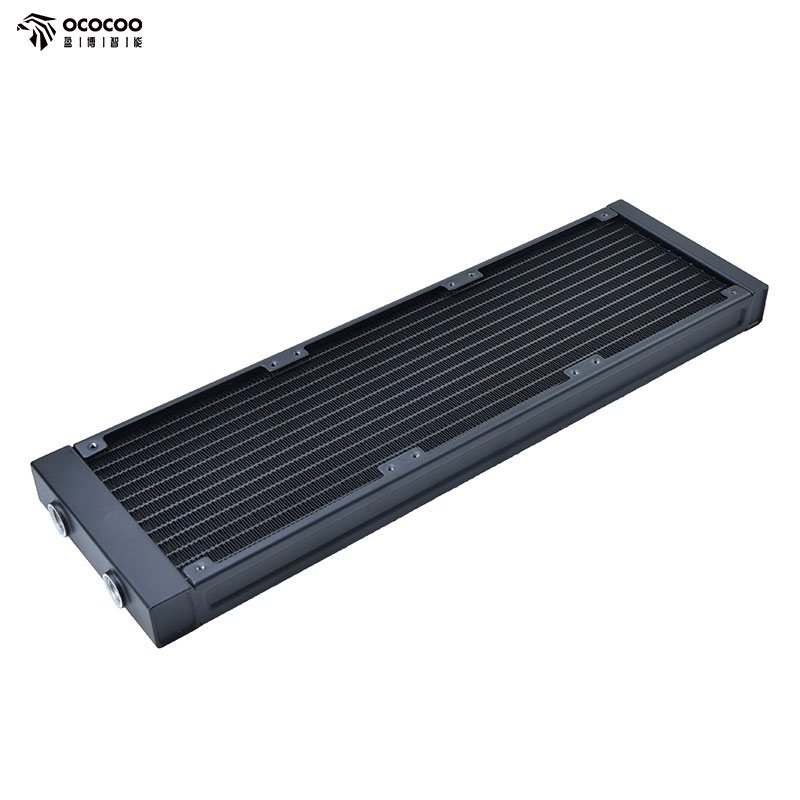

5. Dual G1/4 brass threaded ports enable leak-free connection to industrial chiller loops, water cooling plates, and pump-reservoir systems with standard fittings, simplifying field installation and maintenance for OEM integrators and system builders.

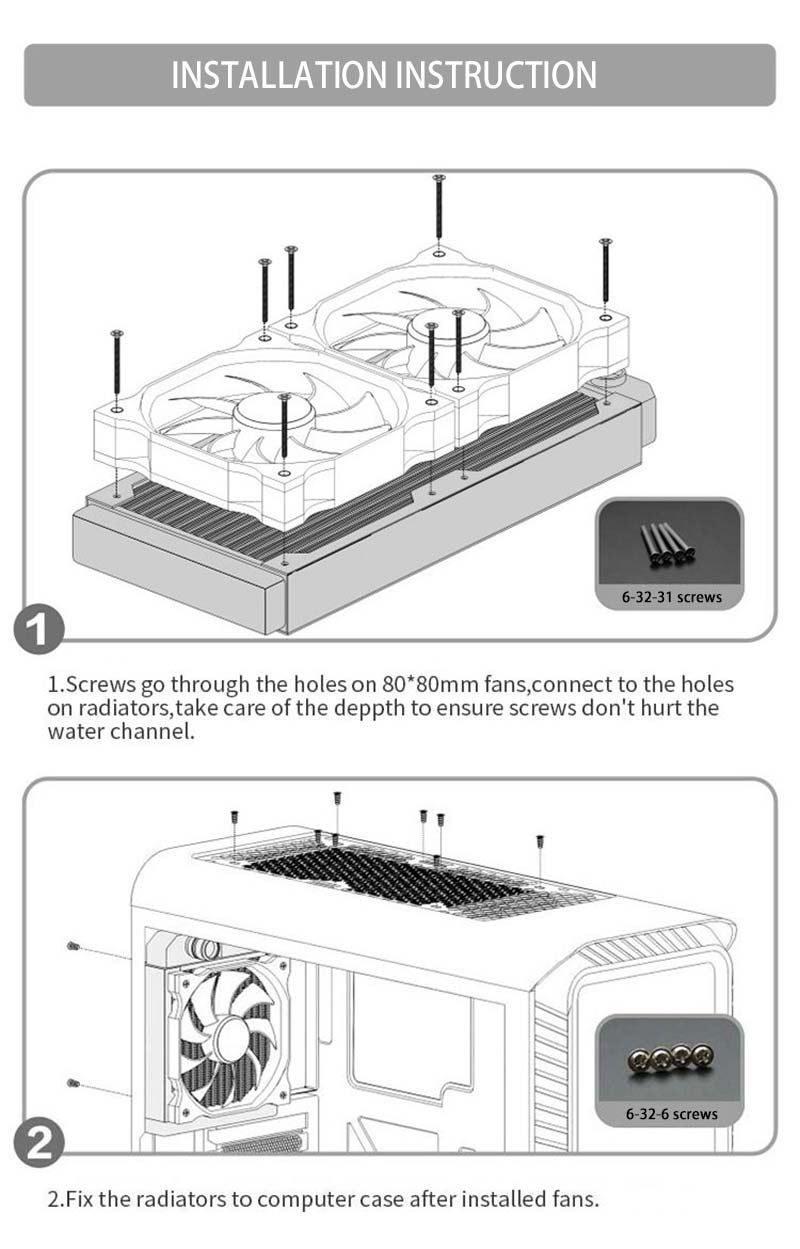

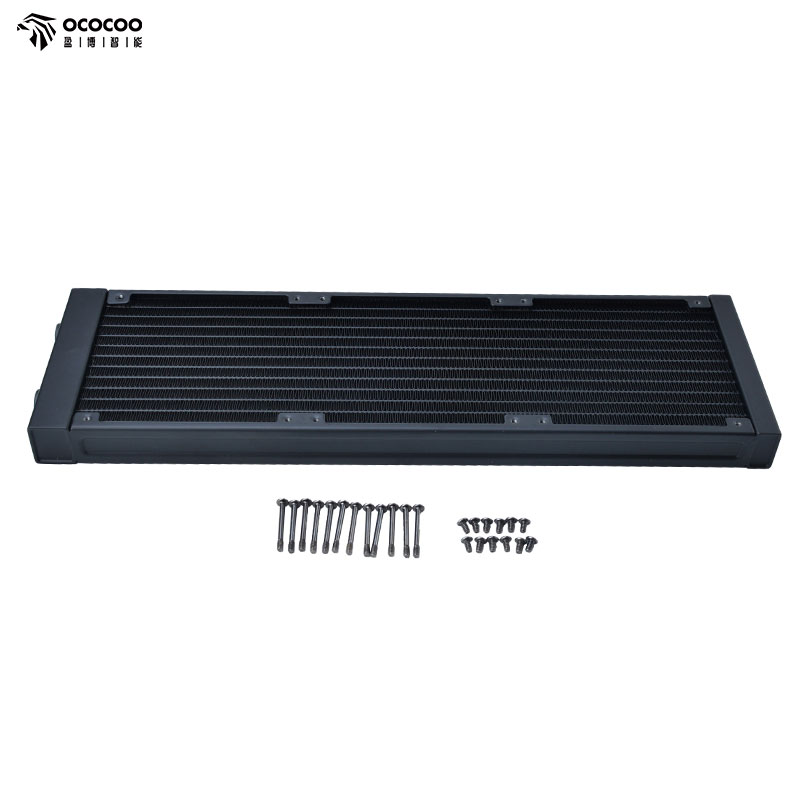

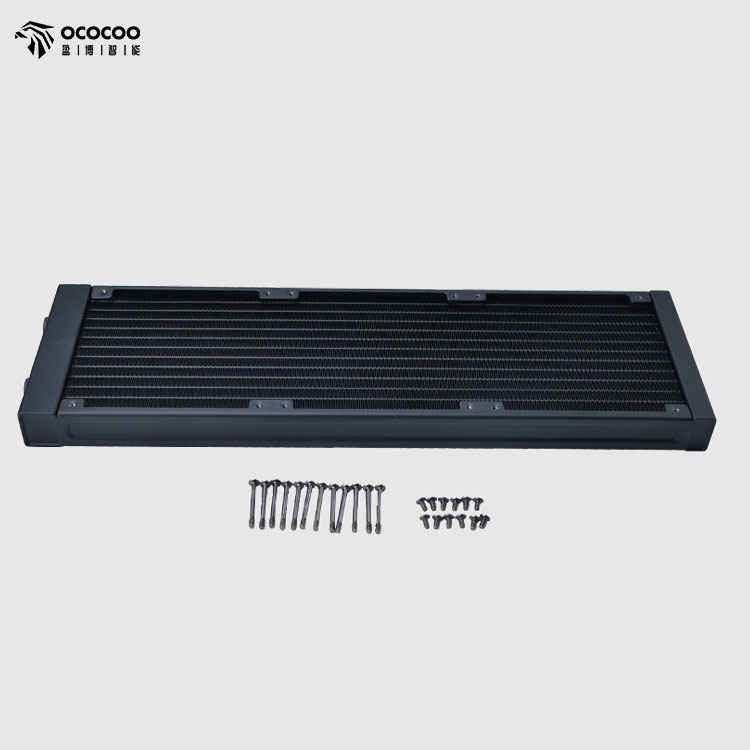

6. Triple-fan mounting with 12 pre-drilled holes supports flexible push-pull airflow configuration, while the 360mm footprint fits large laser cutting machines, server racks, and industrial control cabinets, with OEM customization available for size and port layout.
Product Parameters:
Model: AH360-27

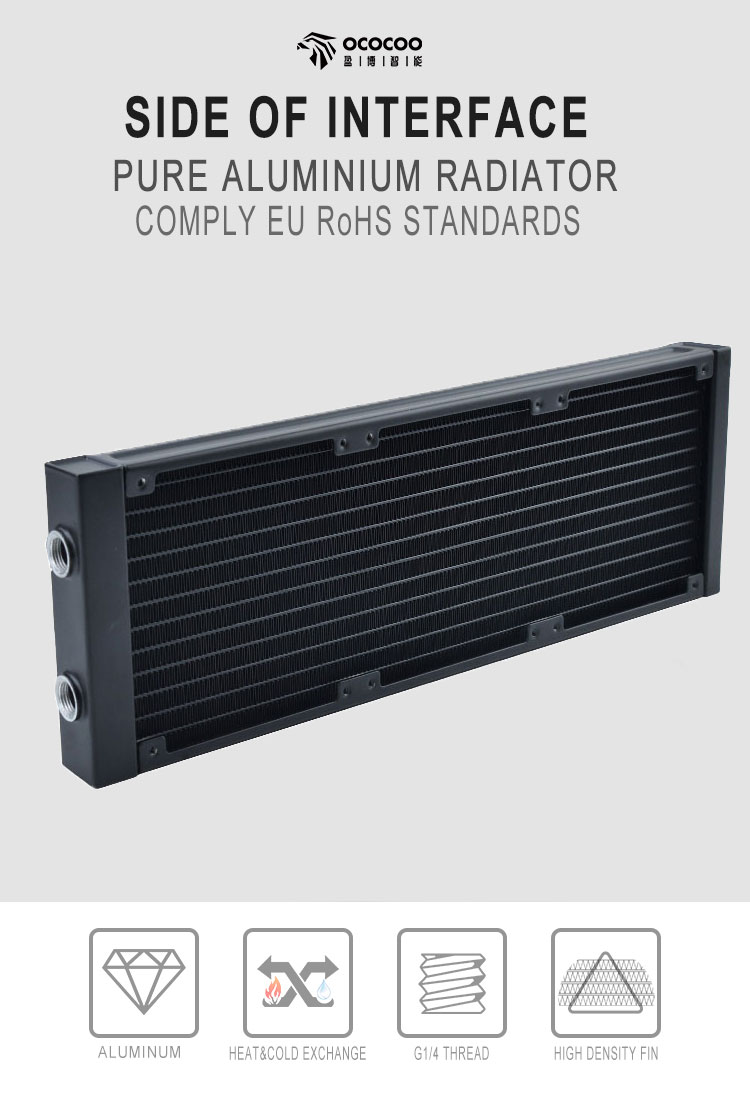

Material: Aluminum
Interface Type: G1/4 thread

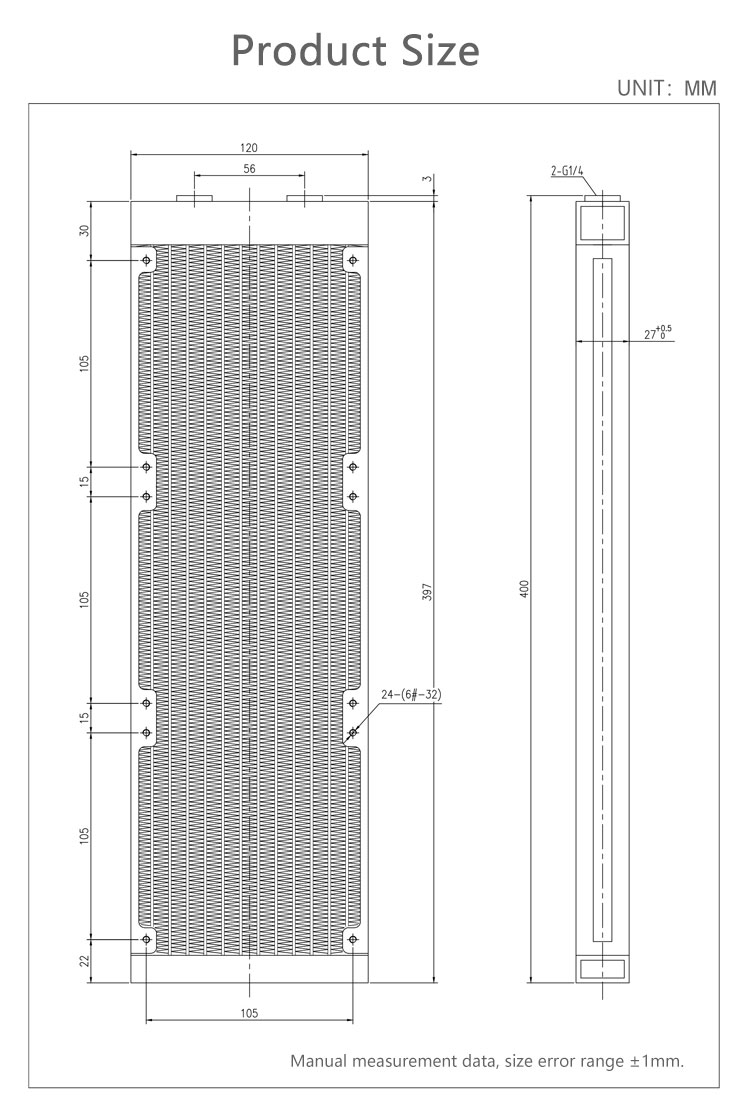

Size:397mm*120mm*27mm
Waterways: 12
Pressure Test: 0.2Mpa
Color: Black
Inlet and Outlet Size: 11.8mm*18mm (inner diameter * outer diameter)
Surface Treatment: Baking paint
Production Process: High temperature integrated solder
Fan Diameter: 120mm (3 PCS)
Net Weight: 0.65 KG
Application: Computer CPU water cooling, Industrial frequency conversion driver, Laser head cooling, Industrial control cabinet cooling
