Core selling point
1. 240mm dual-fan radiator format doubles airflow capacity versus single-fan units, providing balanced high-capacity heat dissipation for mid-power fiber lasers, industrial automation cabinets, and medical imaging systems requiring consistent thermal management.

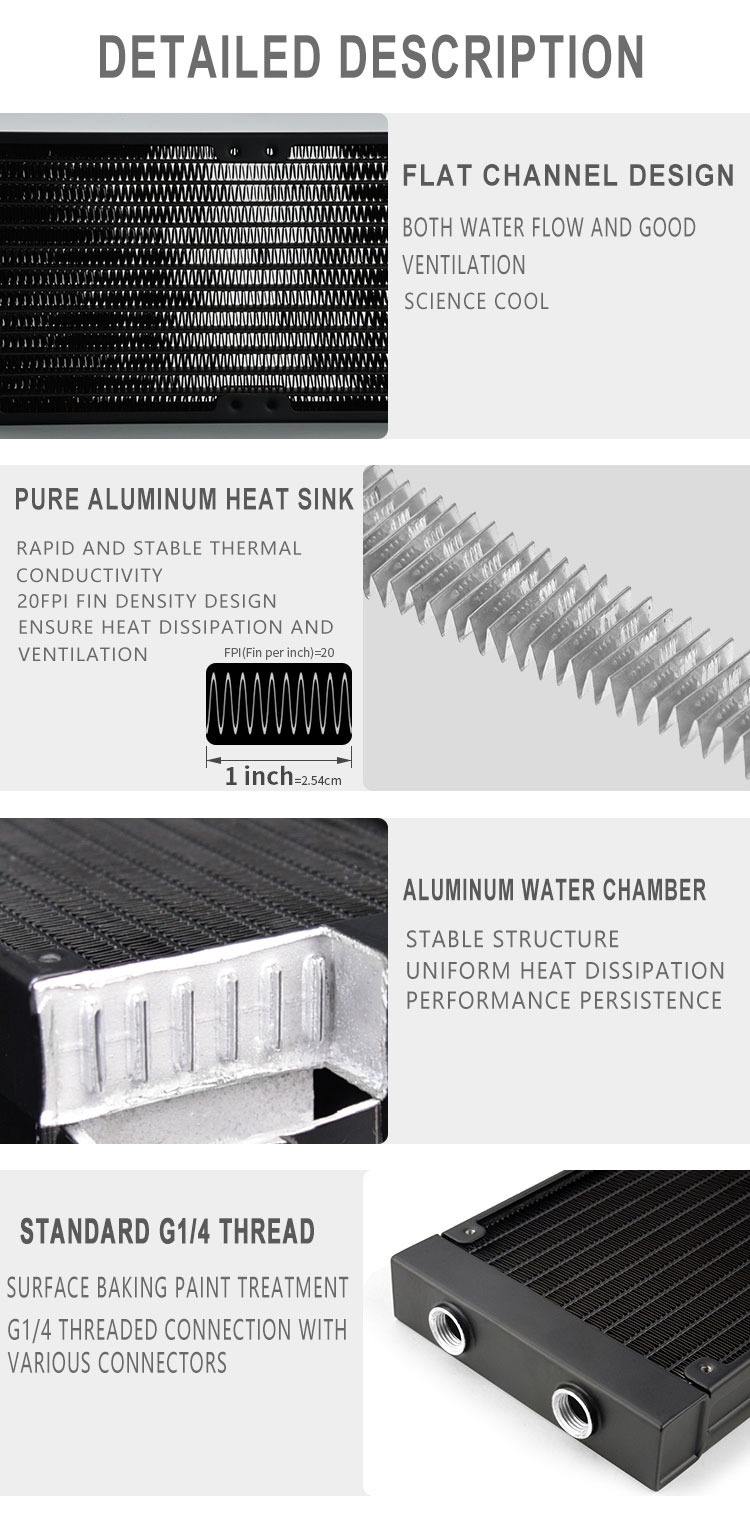

2. Precision flat-tube core with densely packed wavy aluminum fins maximizes heat exchange surface area, efficiently removing waste heat from laser resonators, IGBT modules, and high-power electronics during continuous production duty cycles.
3. Vacuum brazed construction with uniform fin-tube bonding guarantees leak-proof sealing and consistent heat transfer performance, ensuring long-term reliability for mission-critical cooling loops in semiconductor support and industrial processing equipment.
4. Matte black powder-coated finish provides superior corrosion resistance and heat emissivity in harsh workshop and data center environments, withstanding dust, humidity, and temperature variation while maintaining stable heat rejection performance.

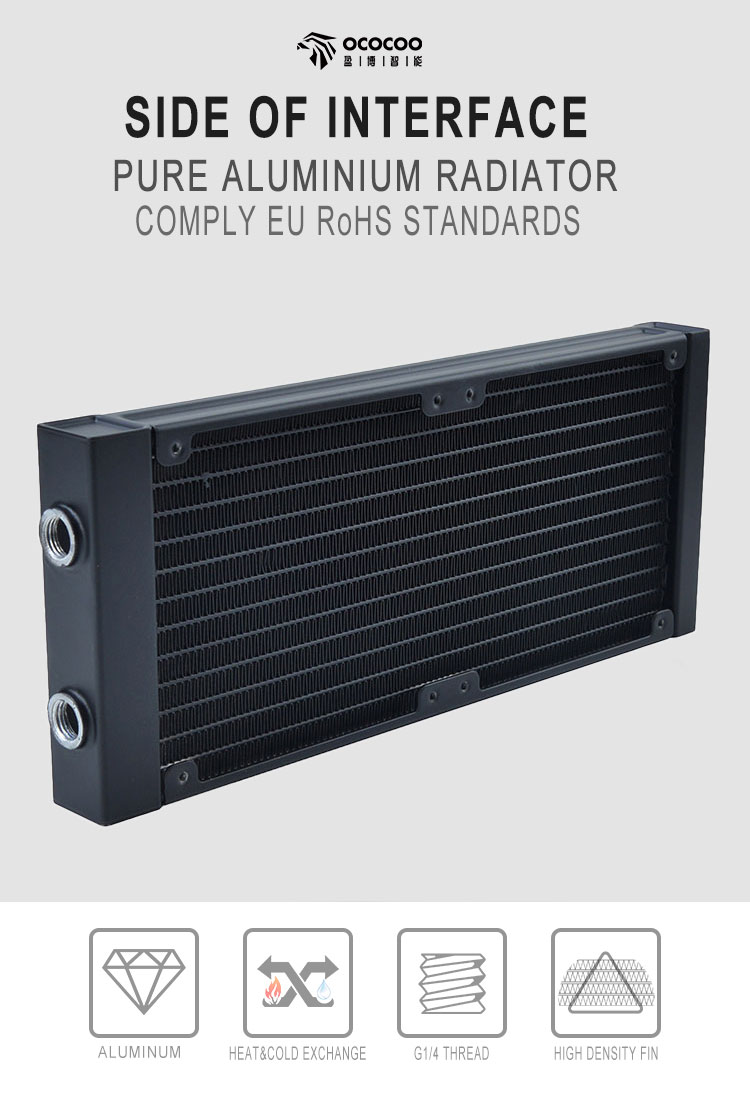

5. Dual G1/4 silver threaded ports on the end tank enable leak-free connection to industrial chiller loops, water cooling plates, and pump-reservoir systems using standard fittings, simplifying circuit integration and field maintenance for OEM customers.

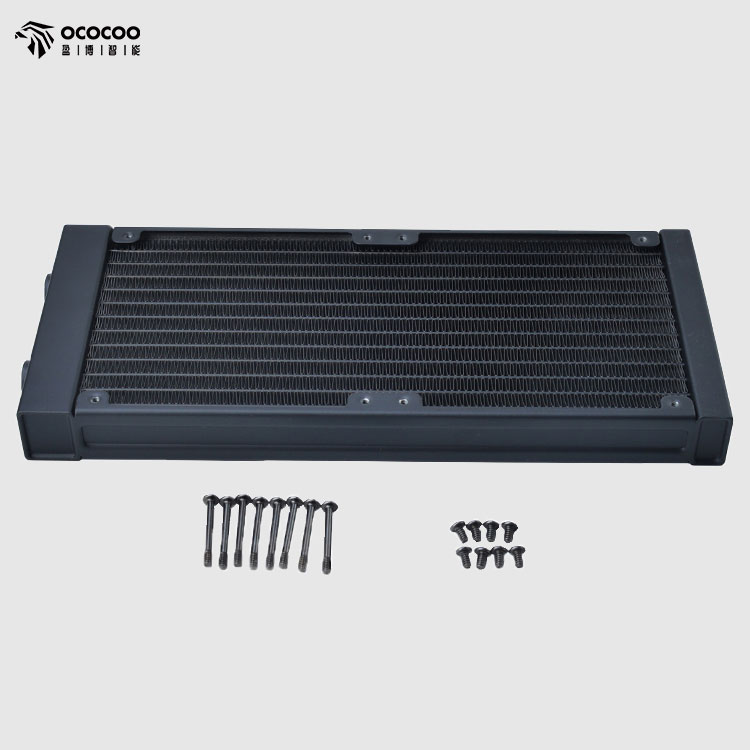

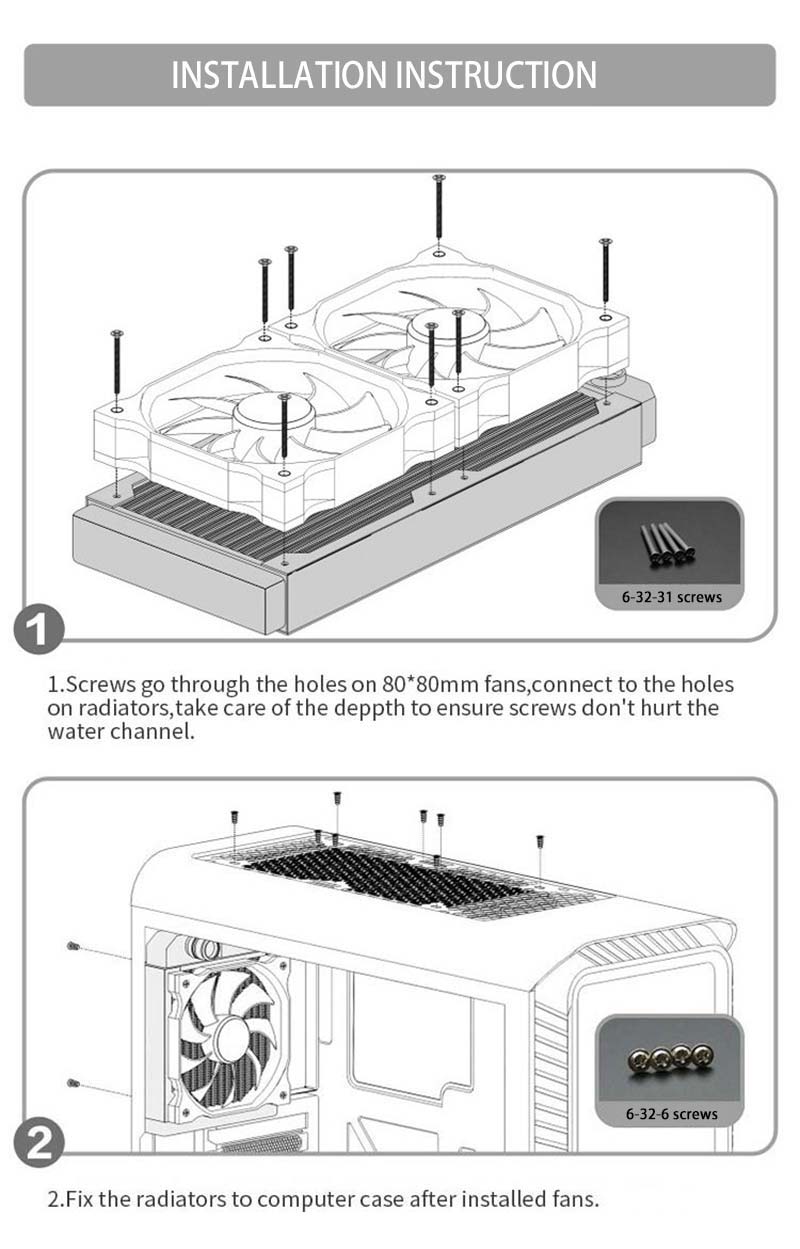

6. Eight pre-drilled mounting holes support two 120mm fans with flexible push-pull configuration, while the compact dual-fan footprint fits standard 19-inch server racks, laser machine cabinets, and control enclosures to save valuable installation space.
Product Parameters:
Model: AH240-27
Material: Aluminum
Interface Type: G1/4 thread

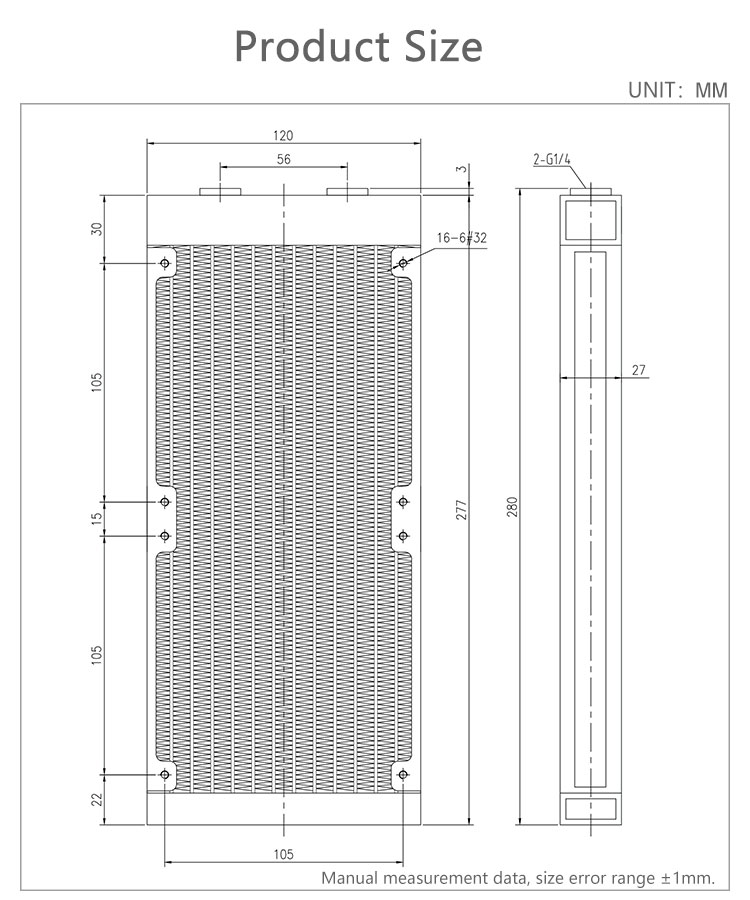

Size:277mm*120mm*27mm
Waterways: 12
Pressure Test: 0.2Mpa
Color: Black
Inlet and Outlet Size: 11.8mm*18mm (inner diameter * outer diameter)
Surface Treatment: Baking paint
Production Process: High temperature integrated solder
Fan Diameter: 120mm (2 PCS)
Net Weight: 0.47 KG
Application: Computer CPU water cooling, Industrial frequency conversion driver, Laser head cooling, Industrial control cabinet cooling
Shijiazhuang OCOCOO Intelligent Technology Co., LTD, founded in 2018. Professional r & D and production of water-cooled water pump, water cooling radiator, shovel heat sink, CPU graphics card fully covered cold head, semiconductor heat dissipation and other professional production and processing company, has a complete and scientific quality management system.
