Core selling point
1. Compact 120mm single-fan radiator format delivers efficient heat dissipation for space-constrained industrial equipment, providing reliable thermal management for medical devices, compact laser systems, and edge computing units where installation space is limited.

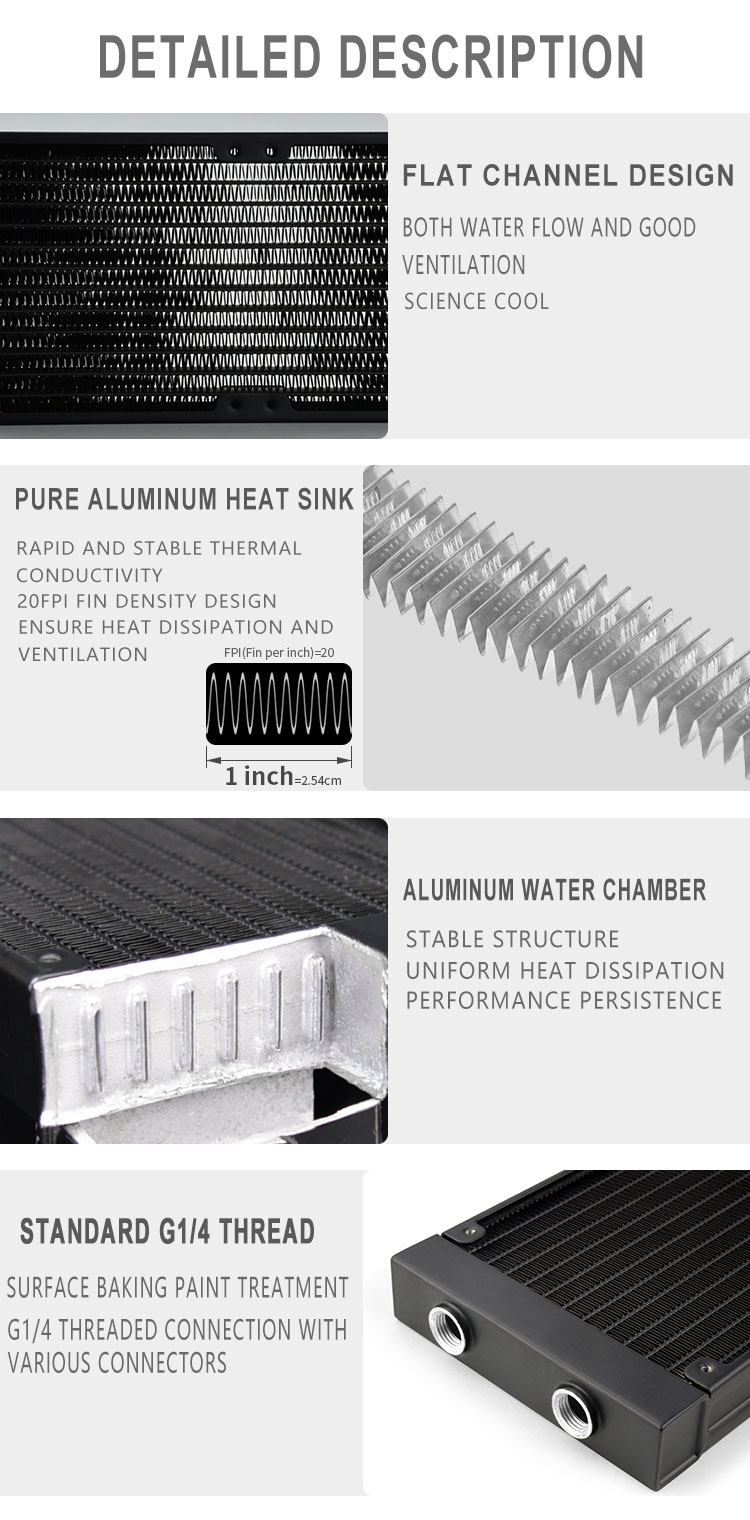

2. Precision flat-tube core with densely packed wavy aluminum fins maximizes heat exchange surface area, efficiently removing waste heat from small-form-factor electronics, servo drives, and power modules in continuous production environments.
3. Vacuum brazed construction with uniform fin-tube bonding guarantees leak-proof sealing and consistent heat transfer performance, ensuring long-term reliability for critical cooling loops in industrial automation and laboratory instrumentation.
4. Matte black anodized finish provides corrosion resistance and stable heat emissivity in harsh operating environments, withstanding dust, humidity, and temperature variation while maintaining dependable cooling performance over extended service life.

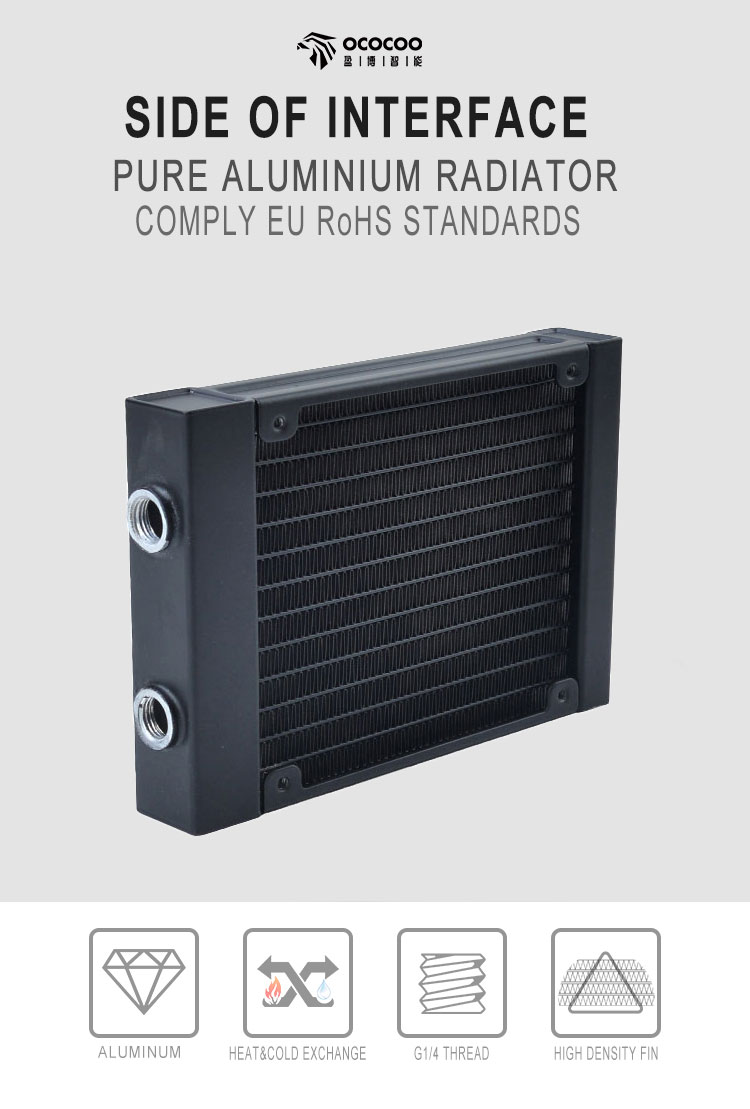

5. Standard G1/4 threaded ports enable leak-free connection to chiller loops, water cooling plates, and pump systems using common fittings, allowing fast integration into existing industrial liquid cooling circuits with minimal modification.

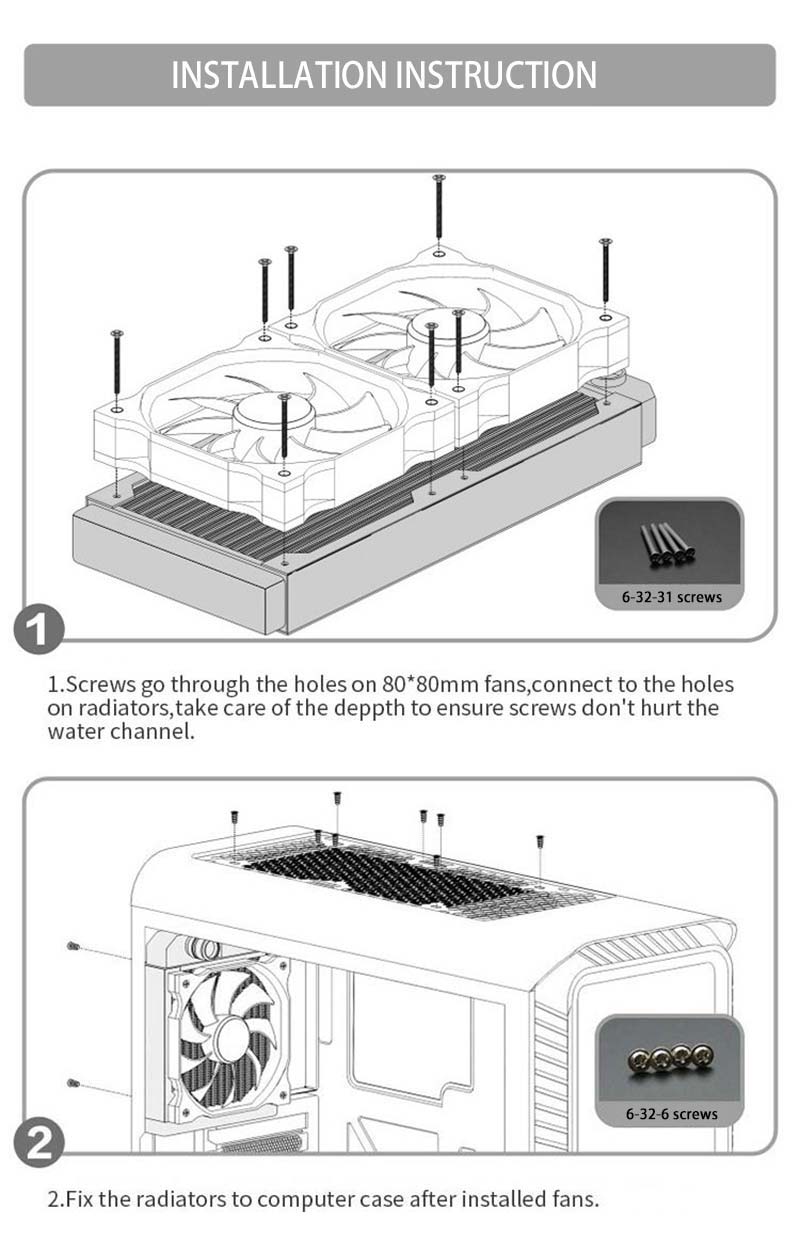

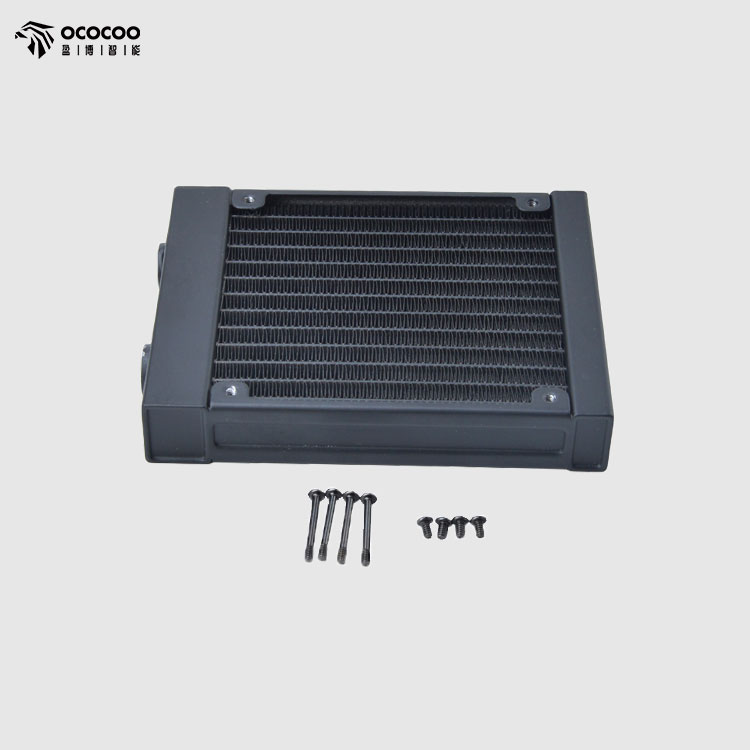

6. Four pre-drilled corner mounting holes fit standard 120mm fan configurations, while the compact footprint suits space-saving installations in CNC spindles, medical imaging cabinets, and telecom equipment, with OEM customization available for thickness and port layout.
Product Parameters:
Model: AH120-27
Material: Aluminum
Interface Type: G1/4 thread

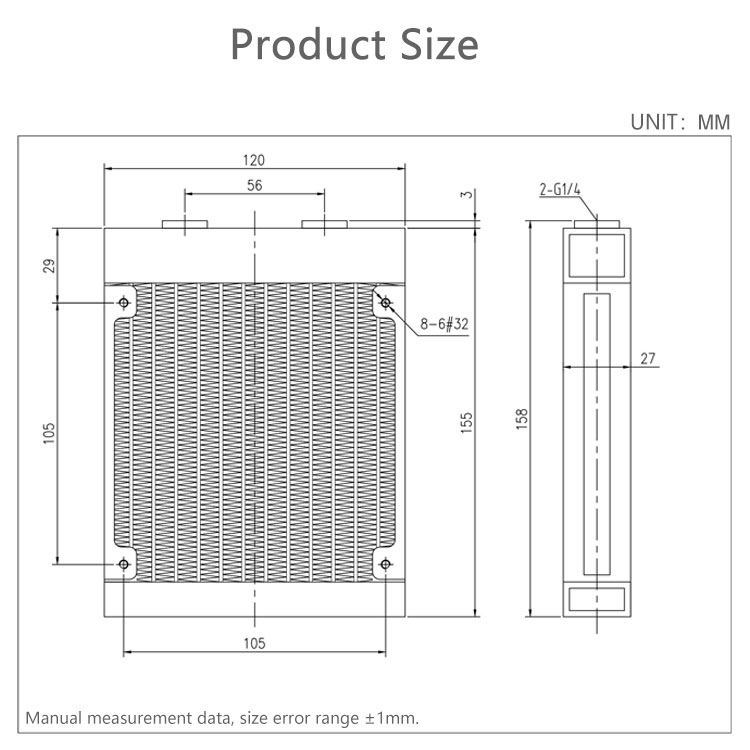

Size:155mm*120mm*27mm
Waterways: 12
Pressure Test: 0.2Mpa
Color: Black
Inlet and Outlet Size: 11.8mm*18mm (inner diameter * outer diameter)
Surface Treatment: Baking paint
Production Process: High temperature integrated solder
Fan Diameter: 120mm (1 PCS)
Net Weight: 0.30 KG
Application: Computer CPU water cooling, Industrial frequency conversion driver, Laser head cooling, Industrial control cabinet cooling
