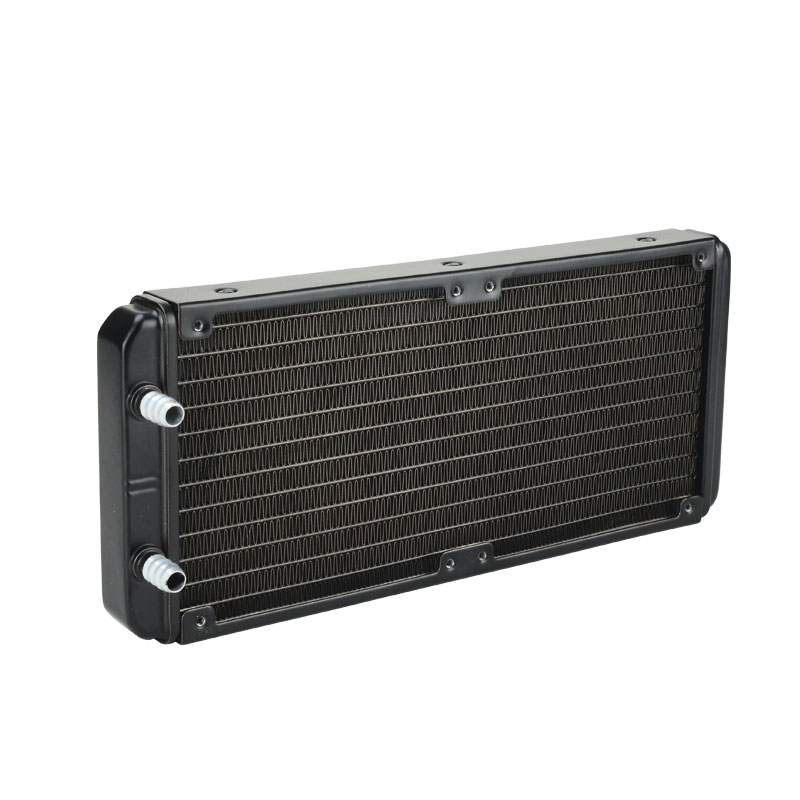

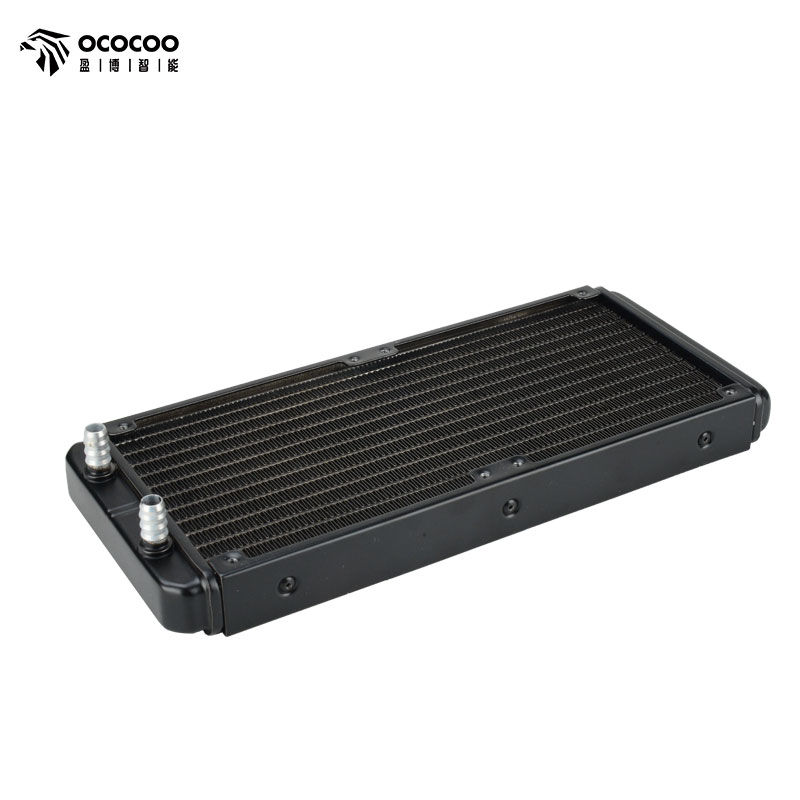

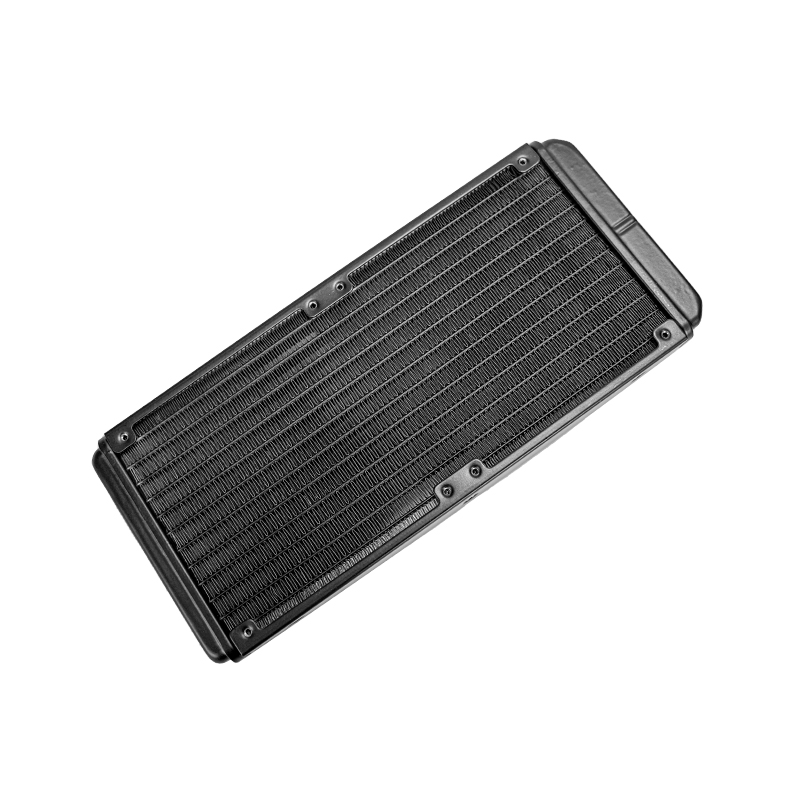

Product Description:

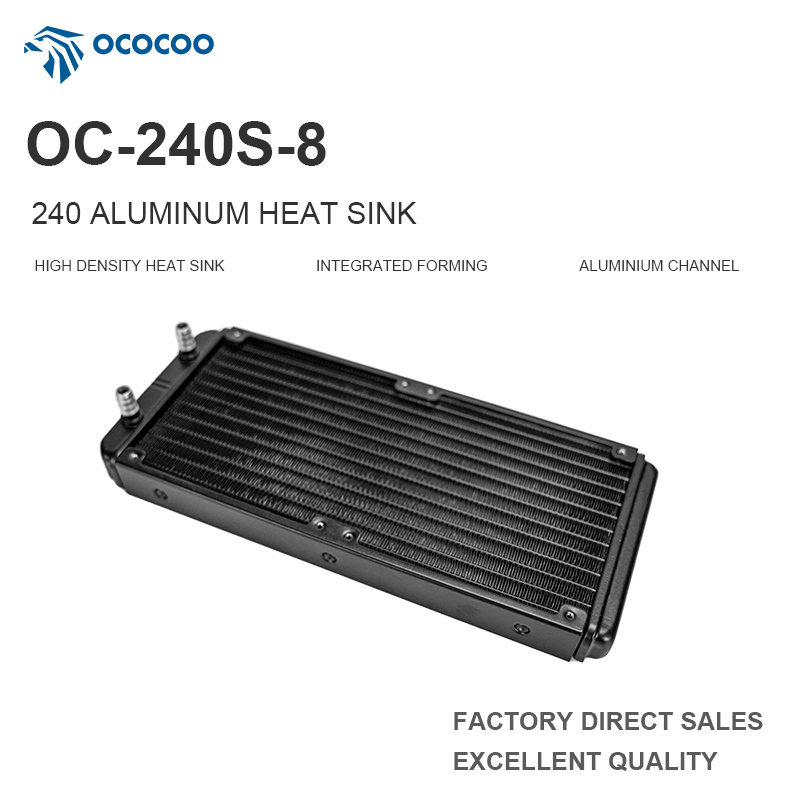

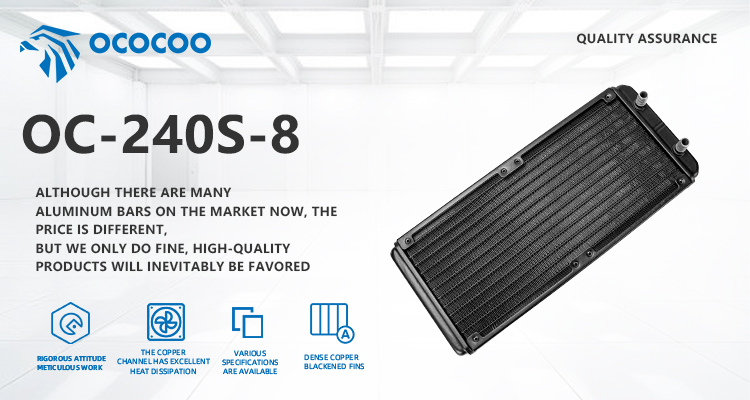

Model: 240S-8
Material: Pure aluminum
Channel Structure: Aluminum flat pipe, 12

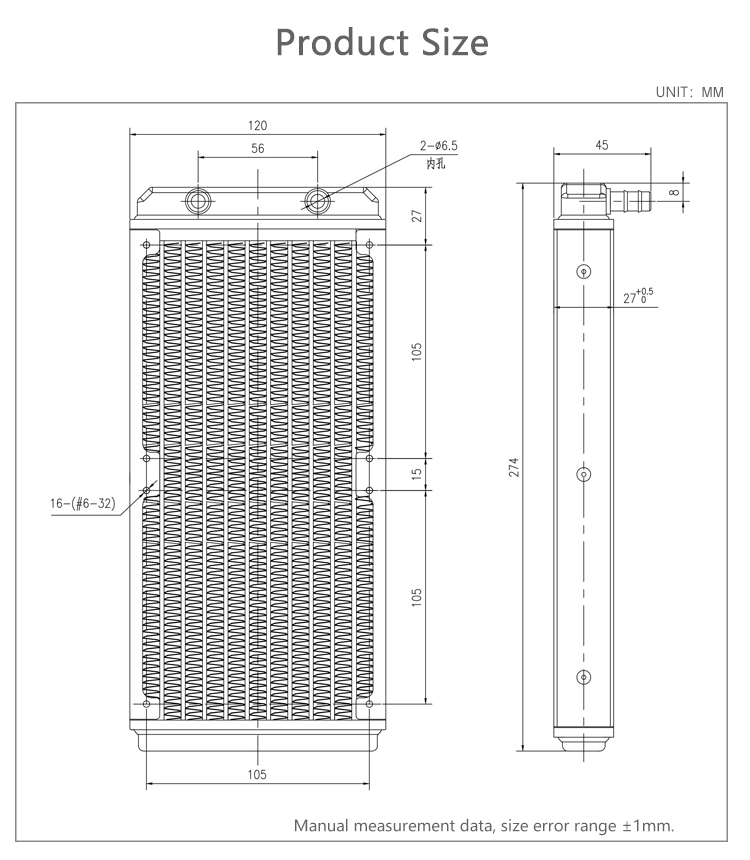

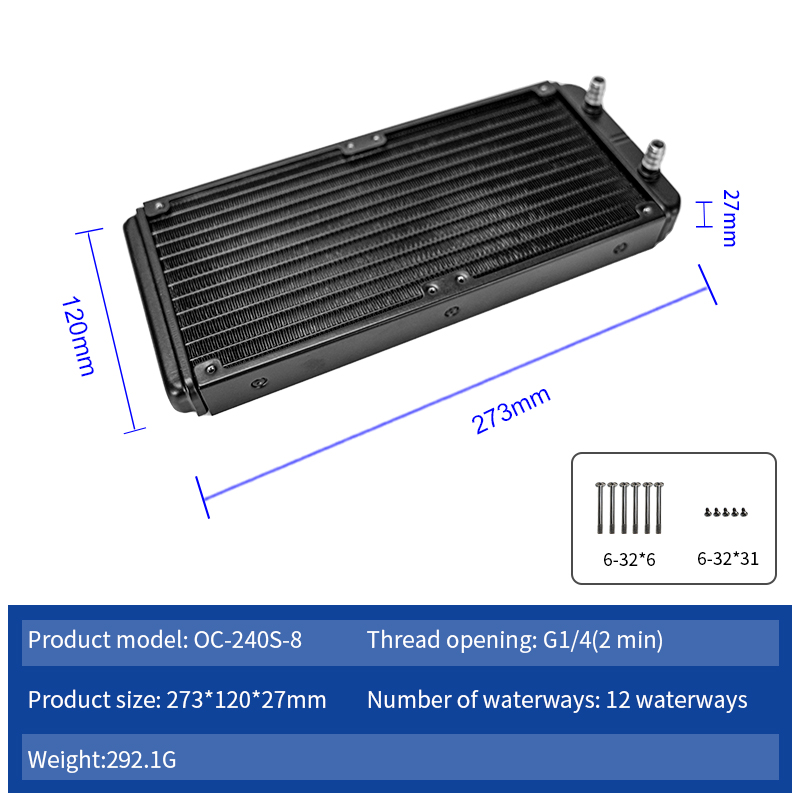

Size :273*120*27mm(L * W * H)
Thread Specifications :6-32-31 (8),6-32-31 (8)
Color: Black

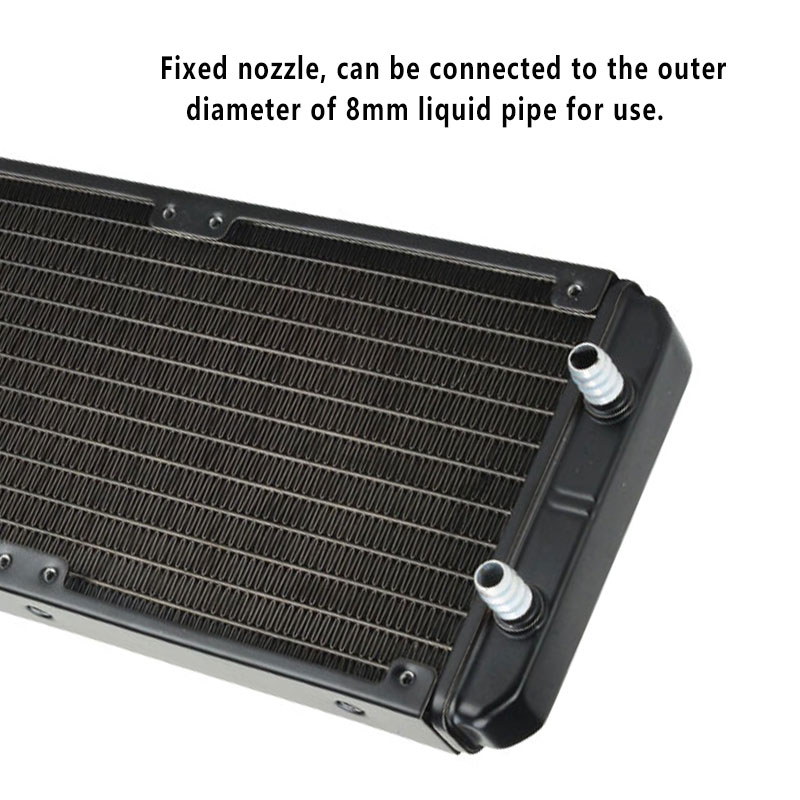

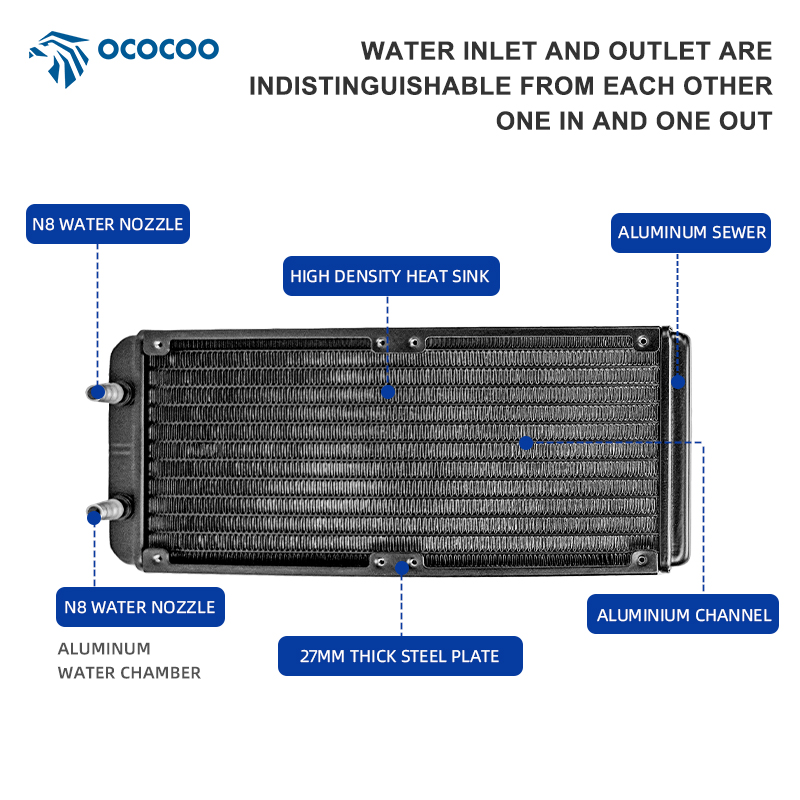

Connection Method: Fix the water nozzle and connect the water pipe with an inner diameter of 8mm
Surface Treatment: Surface baking paint treatment
Net Weight: 0.59KG
Process: One body welding
Fan Size :120 * 120 mm, X2
Air Tightness Test: 0.2mpa
Function: Suitable for PC water cooling system, Industrial frequency conversion drive, Laser head cooling, Industrial control cabinet cooling
Features:
High-temperature solder molding, 100% factory airtight test.

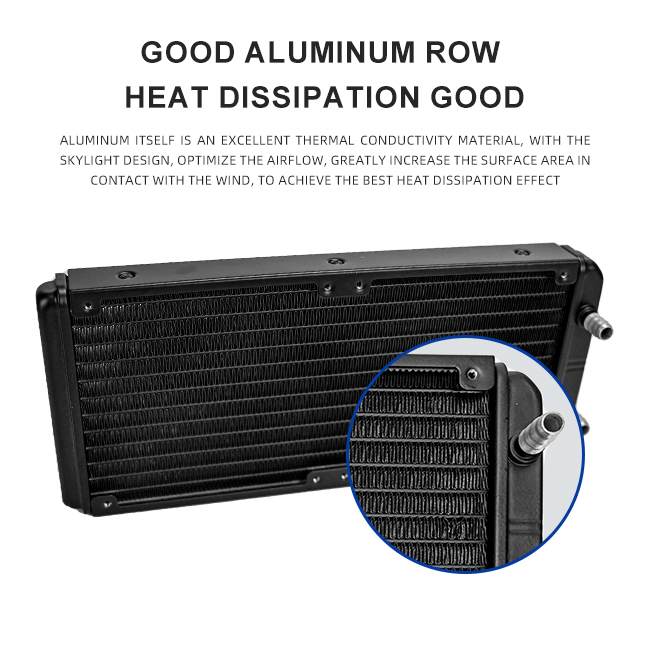

After wind tunnel and thermal imaging test, the air permeability is strong and the heat dissipation is uniform, which meets the requirements of professional level players for water cooling.

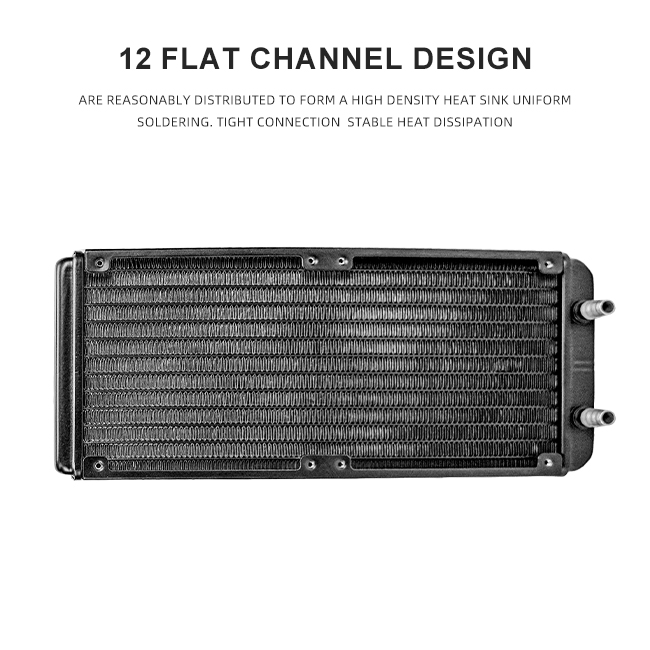

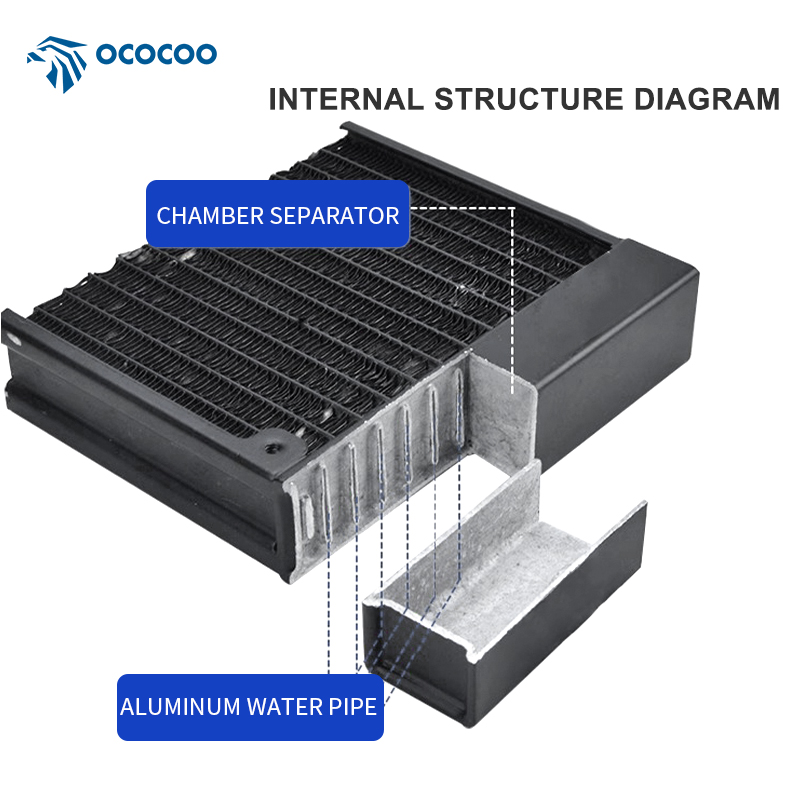

12 single channels design, high density fins, high specification materials and structural design, efficient and practical,

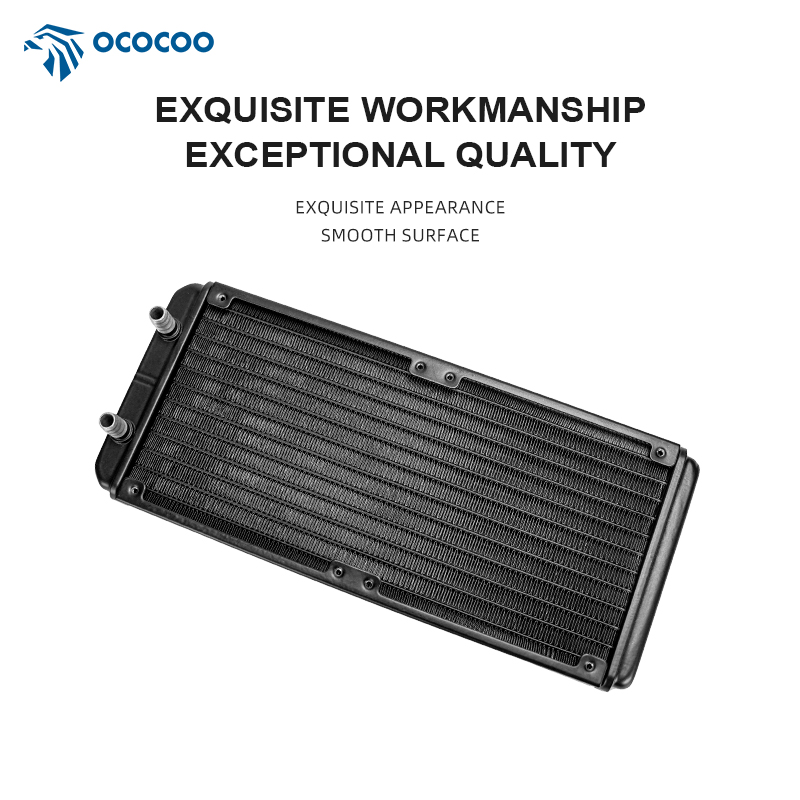

The surface is treated with baking varnish and the texture is beautiful.
Only 27mm thick, suitable for most compact DIY mounting positions, lightweight design for easy installation.
Remarks:

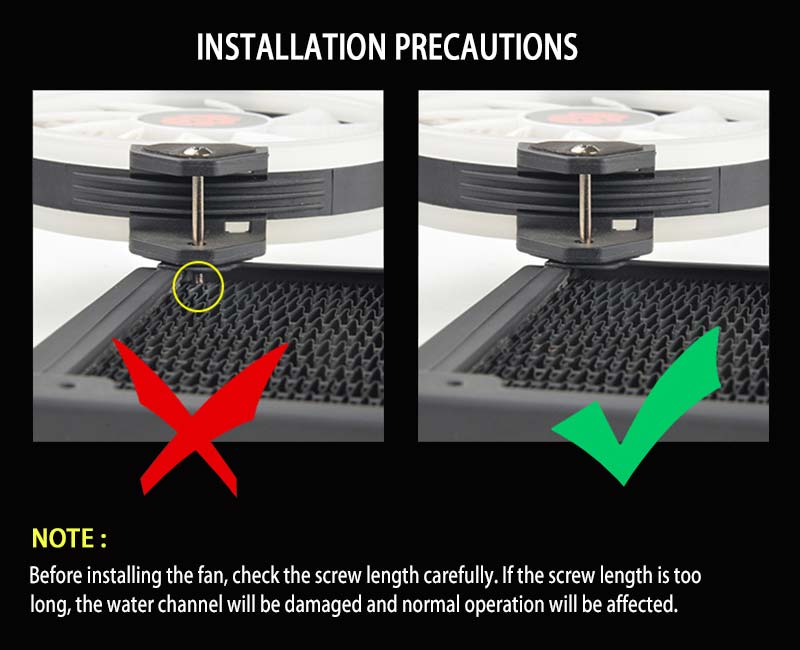

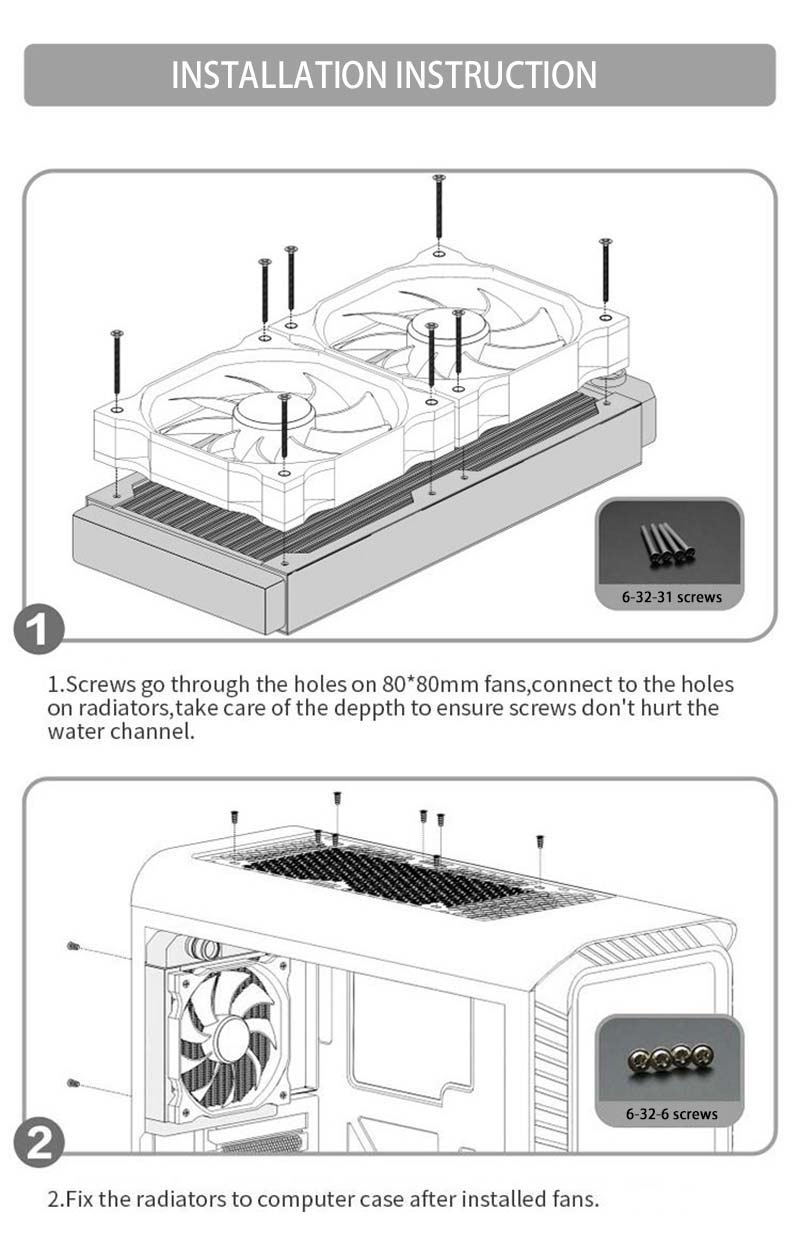

The water pipe is designed under the screw hole.
Using long screws may Pierce the channel.
Please be careful when installing.
Packages:

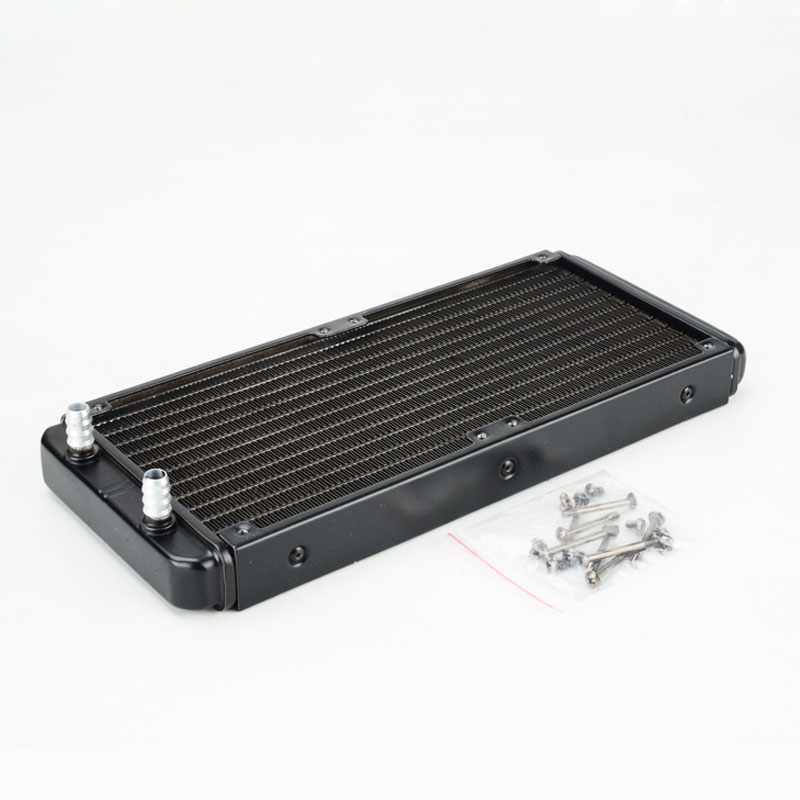

1 X Water Cooling Radiator
16 X Screws
